Aeroquip Performance by Danfoss

FCM2784

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)45 Degree
BrandAeroquip Performance by Danfoss
Drop dimension1.94
End gender 1Male
End gender 2Male
End Size 13/4 IN
End Size 23/4 IN
End type 1SAE 37
End type 2SAE 37
FeatureSystem engineered to extend hose assembly lifeHigh performance to increase uptime in critical operationsSuperior durability made to last
Finish/platingDURA-KOTE
Hex Size 1.74 in

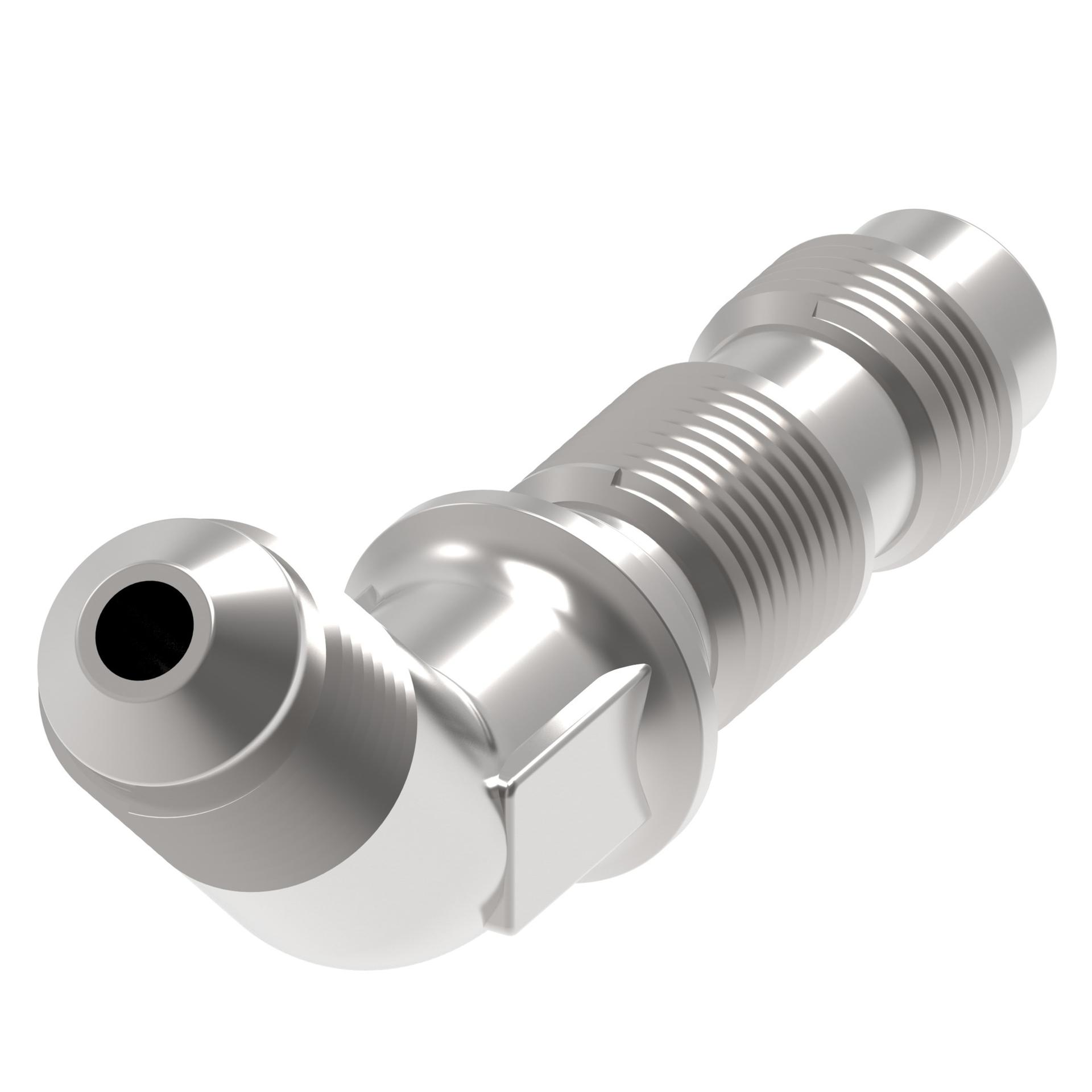

Item typeSAE 37° Male/SAE 37° Male 45°° Elbow Adapter
Packaged Height6.5 in
Packaged Length9 in
Packaged Volume819 in³
Packaged Weight1.27 lb
Packaged Width14 in
Product Height1 in
Product Length/Depth2.92 in
Product materialCarbon Steel
Product TypeElbow Adapters
Product Volume2.92 in³
Product Weight.27 lb
Product Width1 in
Sub-brandNone
Thread sealantNo
Thread Size 13/4-16
Thread Size 23/4-16
Trade NameNone
Tube OD 1.39 in
Tube OD 2.39 in
UPC678146006226
