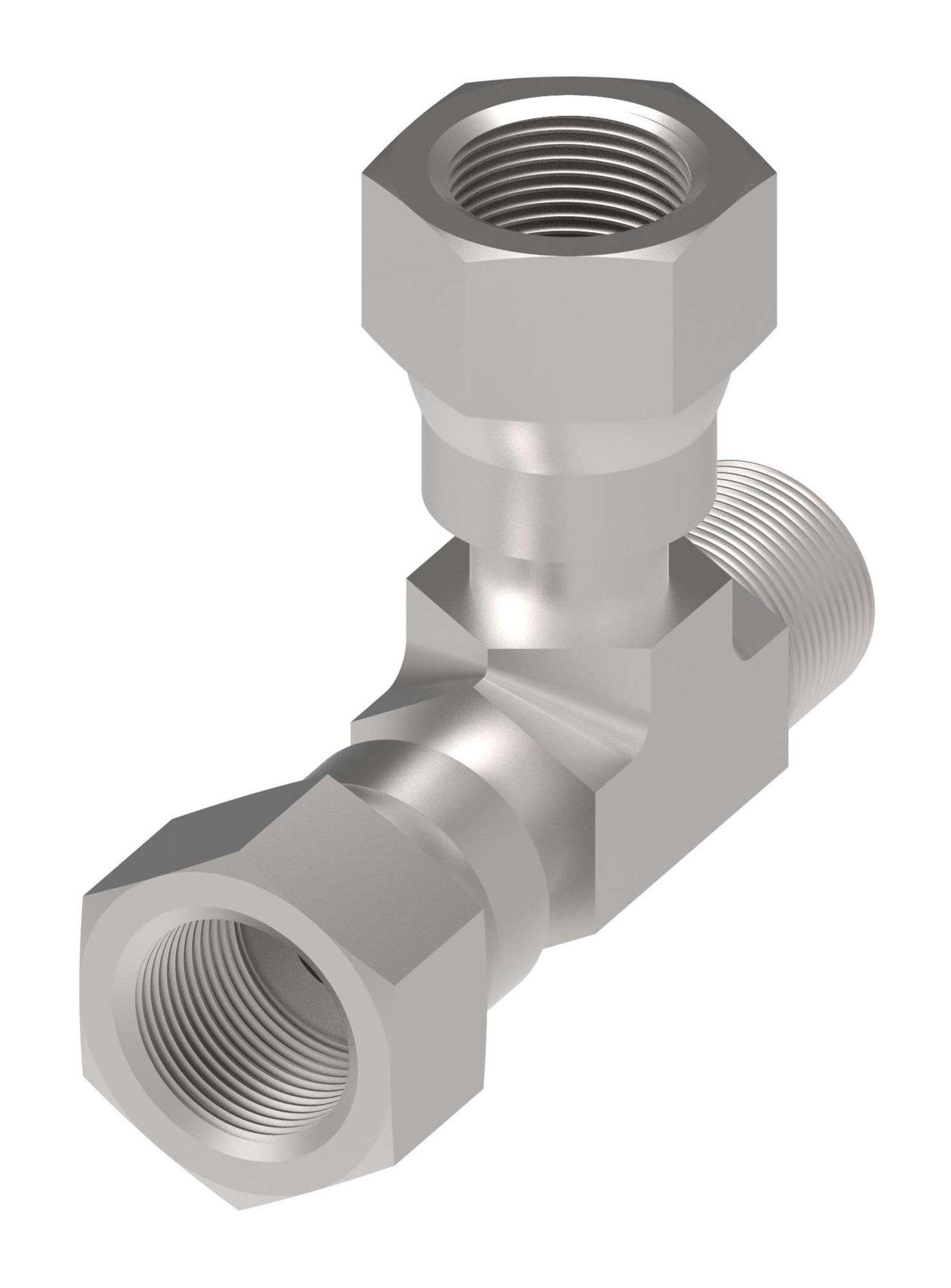

Tee/Y Adapters FF-08Z (RIGHT)

Winner by Danfoss

FF-12Z

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Tee
BrandWinner by Danfoss
Drop dimension63
End gender 1Female
End gender 2Female
End Gender 3Male
End Size 11 3/16 IN
End Size 21 3/16 IN
End Size 31 3/16 IN
End type 1ORFS
End type 2ORFS
End Type 3ORFS
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Finish/platingCr3+Zinc
Hex Size 133 mm
Hex Size 232 mm
Item typeORFS Female/ORFS Female/ORFS Male Tee Adapter
Product Height79.5 mm
Product Length/Depth105.5 mm
Product materialCarbon Steel
Product TypeTee/Y Adapters
Product Volume268.392 cm³
Product Weight654 g
Product Width32 mm
Sub-brandNone
Thread sealantNo
Thread Size 11 3/16-12
Thread Size 21 3/16-12
Thread Size 31 3/16-12
Trade NameFF Series
