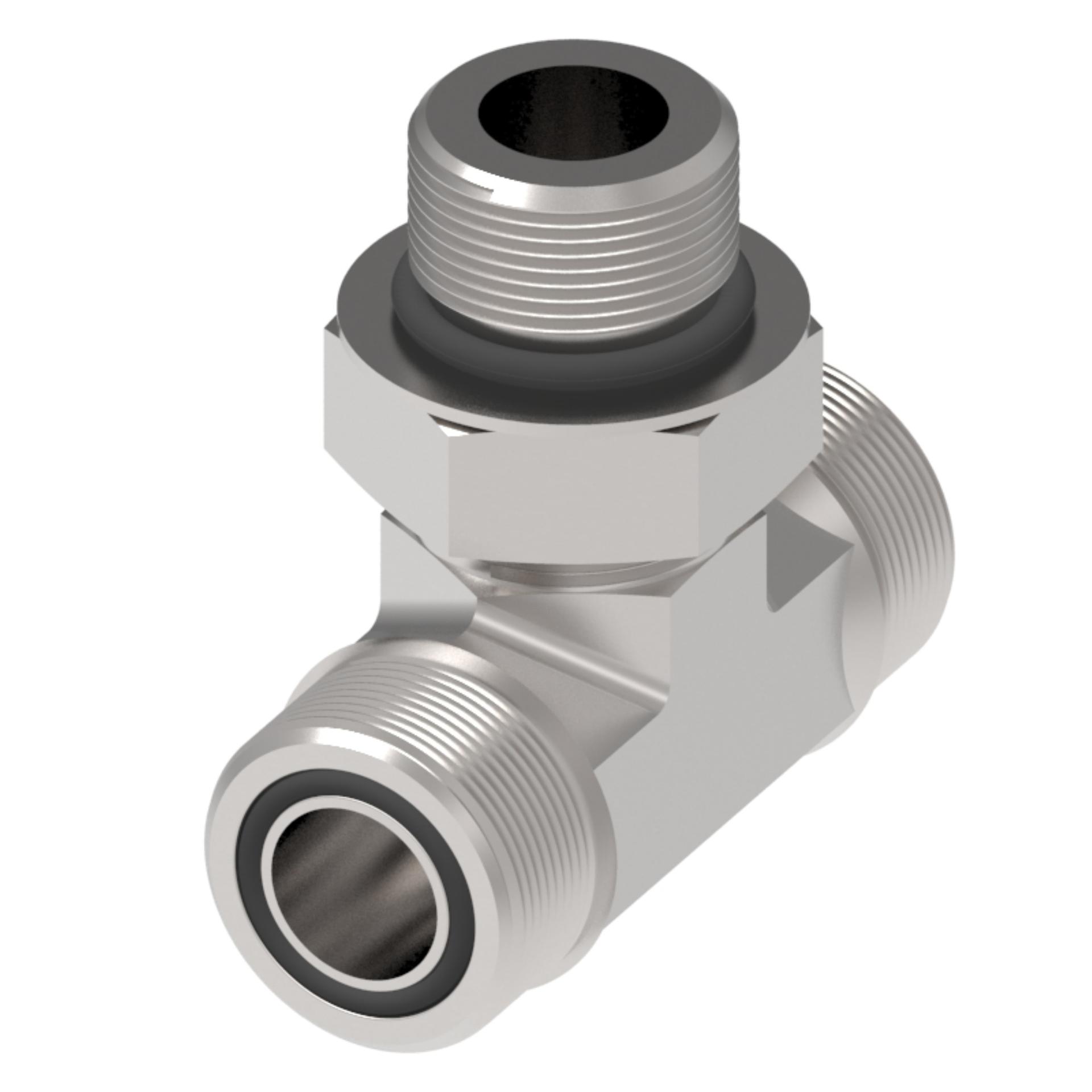

Tee/Y Adapters FF1861T0404S (RIGHT)

ADAPTER-TEE, FF1861T, 16/16/16, CS, NBR

FF1861T1616S

Catalog item:

FF1861T1616S

Tools

Product specifications

Characteristic
Value
Angle shapeTee
BrandDanfoss
Catalog ItemFF1861T1616S
Drop dimension IN2.350
Drop dimension MM59.70
End size 1-16
End size 2-16
End size 3-16
End Type 1Male ORFS
End type 2Male ORFS
End type 3Male ORB ISO 11926-2
Finish platingDura-Kote
Hex size 1 IN1.614
Hex size 1 MM41.0
Hex size 5 IN1.417
Hex size 5 MM36.0
Item typeAdapter-tee
Product materialCarbon steel
Product serial nameFF1861T
Seal materialNitrile (NBR)
Thread sealantNo
Thread size 11 7/16-12 UN
Thread size 21 7/16-12 UN
Thread size 31 5/16-12 UN

General specifications

Characteristic
Value
EAN/UPC678146062314
