Aeroquip by Danfoss
FF2025-121204S
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

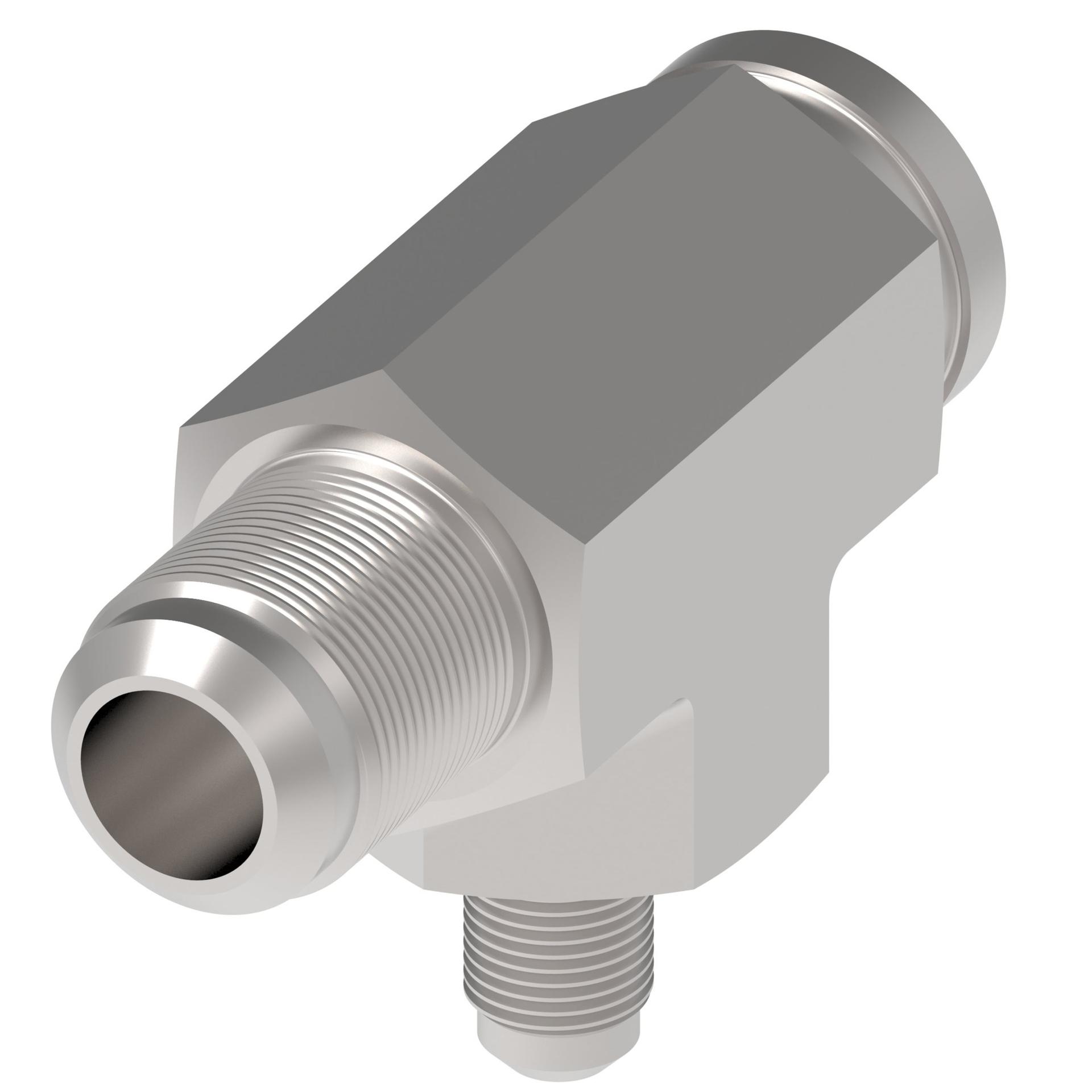

FF2025-121204S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Tee | |
| Brand | Aeroquip by Danfoss | |
| End gender 1 | Male | |
| End Size 1 | 1 1/16 IN | |
| End Size 3 | 7/16 IN | |
| End type 1 | SAE 37 | |
| End type 2 | Line/Hose/Tube | |
| Feature | Dura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards | |
| Finish/plating | DURA-KOTE | |
| Hex Size 1 | 1.66 in | |
| Item type | SAE 37 Male/Line/Hose/Tube / Tee Adapter | |
| Product Height | 2.19 in | |
| Product Length/Depth | 2.85 in | |
| Product material | Carbon Steel | |
| Product Type | Tee/Y Adapters | |
| Product Volume | 3.408 in³ | |
| Product Weight | .546 lb | |
| Product Width | .546 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 1 1/16-12 | |
| Thread Size 3 | 7/16-20 | |
| Trade Name | FF2025 Series | |
| Tube OD 1 | .6 in | |
| Tube OD 2 | .6 in | |
| Tube OD 3 | .17 in | |
| Working temperature - max | 400 °F | |
| Working temperature - min | -65 °F |
