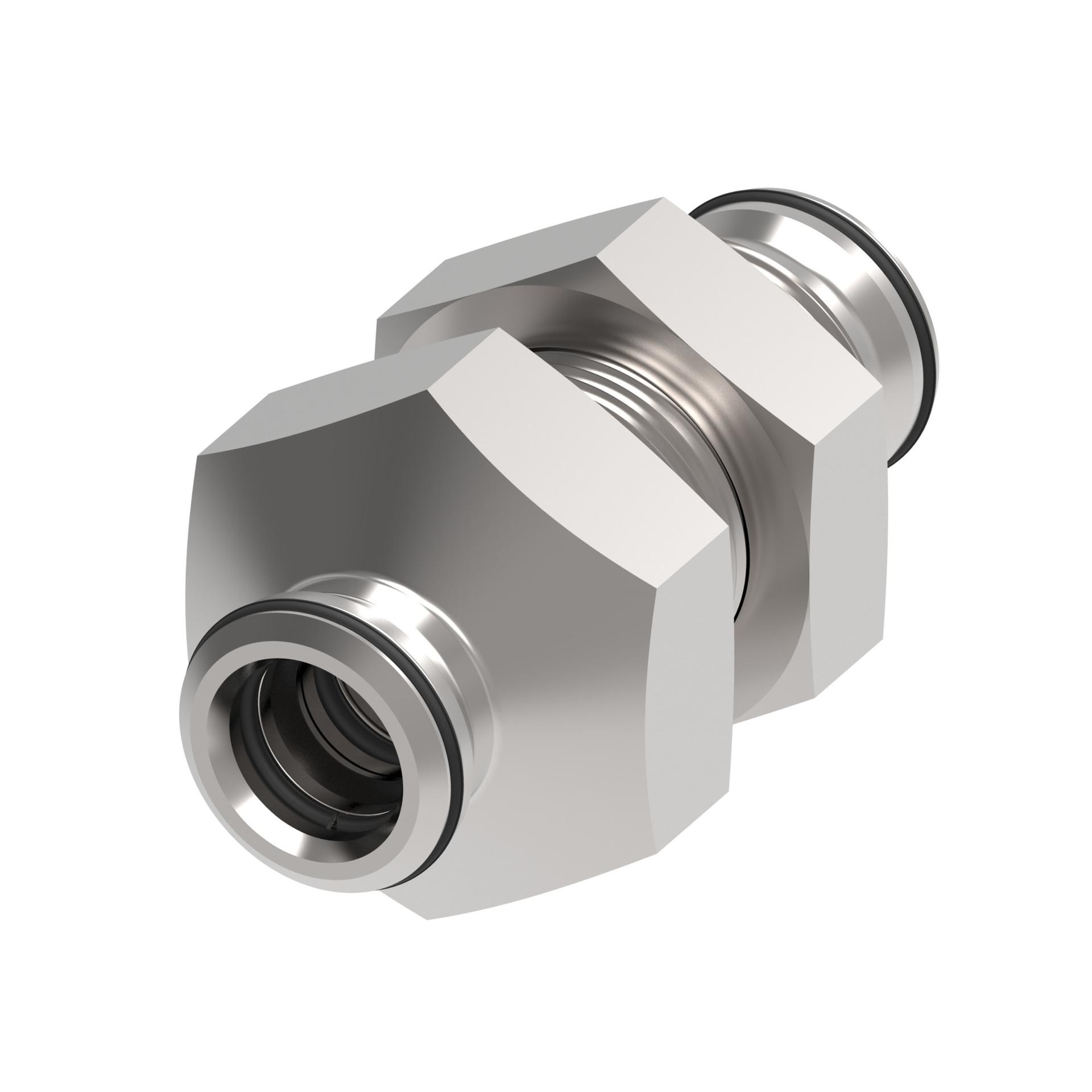

Straight Adapters FF3109-0606S (RIGHT)

Aeroquip by Danfoss

FF3109-0808S

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Description
Angle (shape)Straight
BrandAeroquip by Danfoss
End gender 1Male
End gender 2Female
End Size 11/2 IN
End Size 21/2 IN
End type 1Line/Hose/Tube
End type 2STC
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Finish/platingDURA-KOTE
Hex Size 11.496 in
Hex Size 21.315 in
Inside diameter (bore hole size).85 in
Item typeHose/Pipe/Tube Female to Hose/Pipe/Tube Female
Packaged Height14 in
Packaged Length7 in
Packaged Volume882 in³
Packaged Weight1.498 lb
Packaged Width9 in
Product Height1.496 in
Product Length/Depth2.38 in
Product materialCarbon Steel
Product TypeStraight Adapters
Product Volume5.326 in³
Product Weight.498 lb
Product Width1.496 in
Sub-brandNone
Thread sealantNo
Trade NameFF3109 Series
Tube OD 1.48 in
Tube OD 2.48 in
UPC678146065179
Working temperature - max250 °F
Working temperature - min-40 °F
