Danfoss Hansen

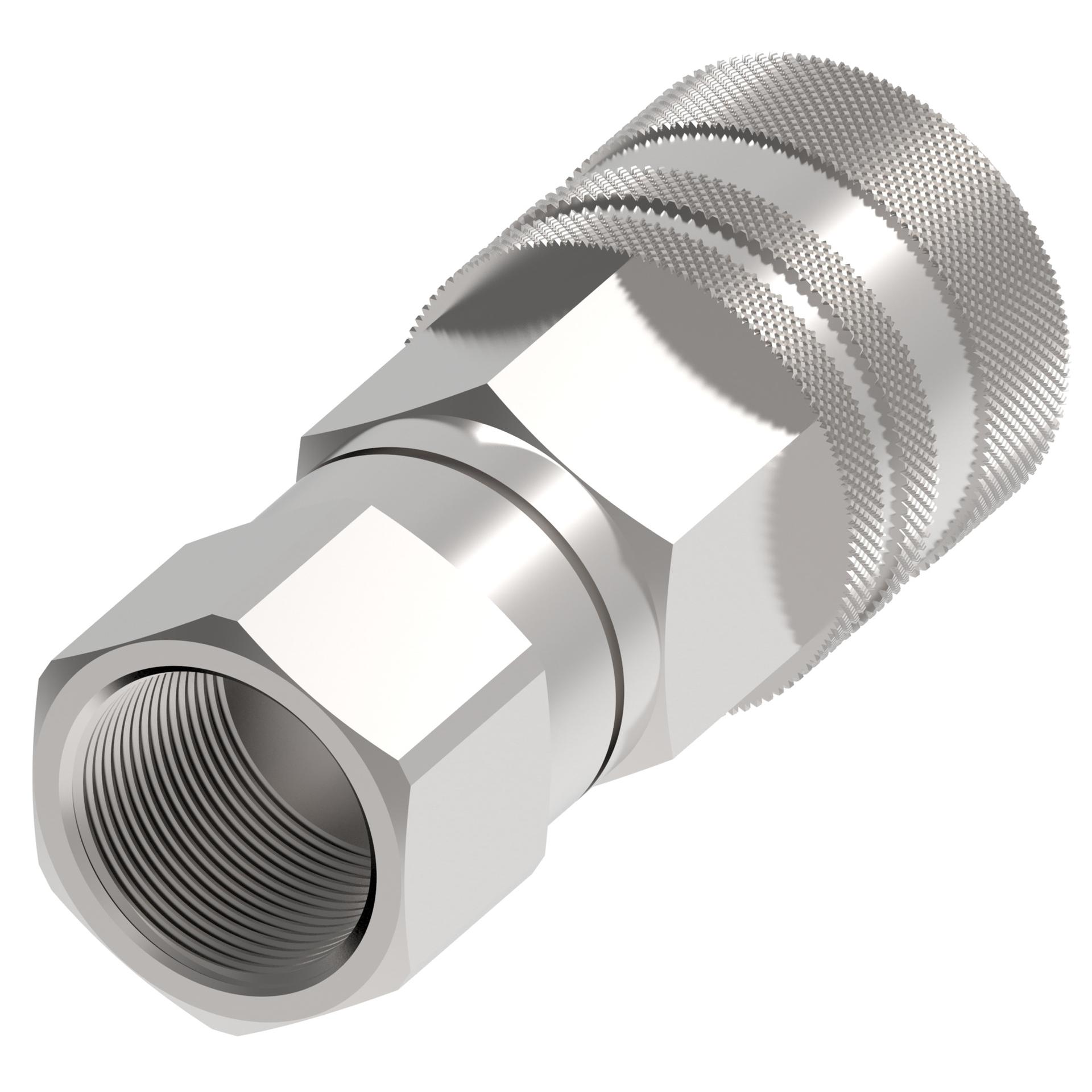

FF9824-01
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FF9824-01
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Air inclusion - max | .02 cm³ | |
| Angle (shape) | Straight | |
| Application | Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Chemical, Oil and Gas, Transportation, Food and Beverage, Trucks, Nuclear | |
| Body size | 1/4 | |
| Brand | Danfoss | |
| Burst pressure | 28000 Psi | |
| End gender 1 | Female | |
| End gender 2 | Female | |
| End Size 2 | 1/4 IN | |
| End type 1 | Push to Connect | |
| End type 2 | NPTF | |
| Feature | Quick connect and disconnectNo need for special toolsExceeds ISO 16028 operating pressures | |
| Finish/plating | Zinc Trivalent | |
| Flow rate | .6 gal/min | |
| Fluid loss | .1 cm³ | |
| Hex Size 1 | .75 in | |
| Item type | Female Half | |
| Latch type | Push/pull | |
| Media | Hydraulic | |
| Packaged Height | 21.5 in | |
| Packaged Length | 4.125 in | |
| Packaged Volume | 1906.781 in³ | |
| Packaged Weight | 1 lb | |
| Packaged Width | 21.5 in | |
| Port size | 1/4 | |
| Product material | Carbon Steel | |
| Product Type | Quick Disconnect Couplings | |
| Product Weight | .34 lb | |
| Seal material | Buna-N | |
| Sub-brand | Hansen | |
| Thread sealant | No | |
| Thread Size 2 | 1/4-18 | |
| Trade Name | None | |
| Working pressure | 7000 Psi |
