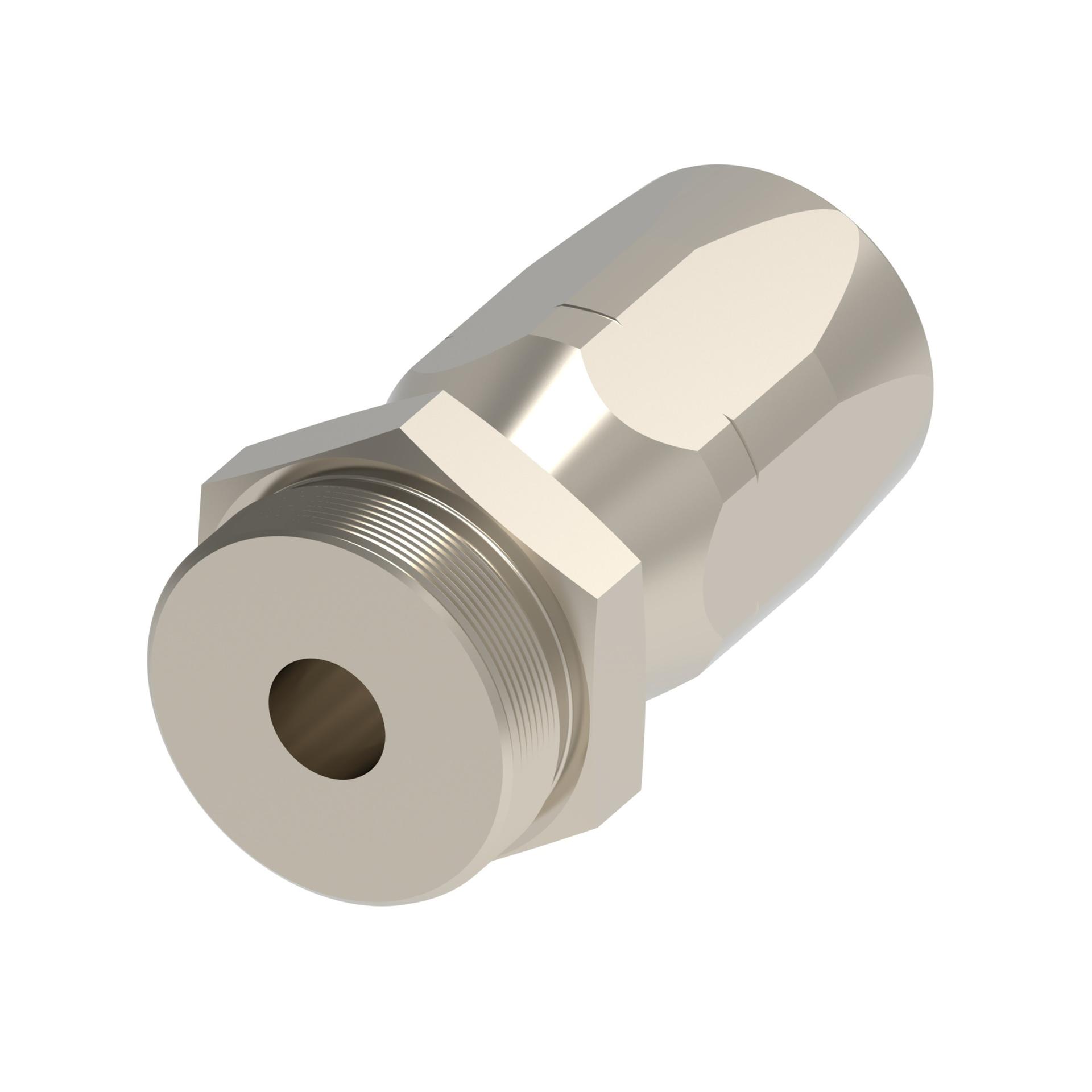

Hose Fittings 4-190909 (RIGHT)

Aeroquip by Danfoss

FH9044-2024-4

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
BrandAeroquip by Danfoss
Compatible hose ID1.5 in
Compatible hoses1509
Construction styleReusable
End gender 1Male
End gender 2Female
End Size 12 3/4 IN
End Size 21 1/2 IN
End type 1UN
End type 2Line/Hose/Tube
FeatureMaximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability
Hex Size 12.88 in
Hex Size 22.5 in
Hose cut-off factor2.48 in
Hose dash size-24
Inside diameter1.21 in
Item typeFitting Assembly
Packaged Height14 in
Packaged Length7 in
Packaged Volume882 in³
Packaged Width9 in
Product Height2.88 in
Product Length/Depth4.72 in
Product materialTitanium
Product TypeMarine Military
Product Volume39.15 in³
Product Width2.88 in
Sub-brandNone
Thread sealantNo
Thread Size 12 3/4-12
Trade NameFH9044 Series
