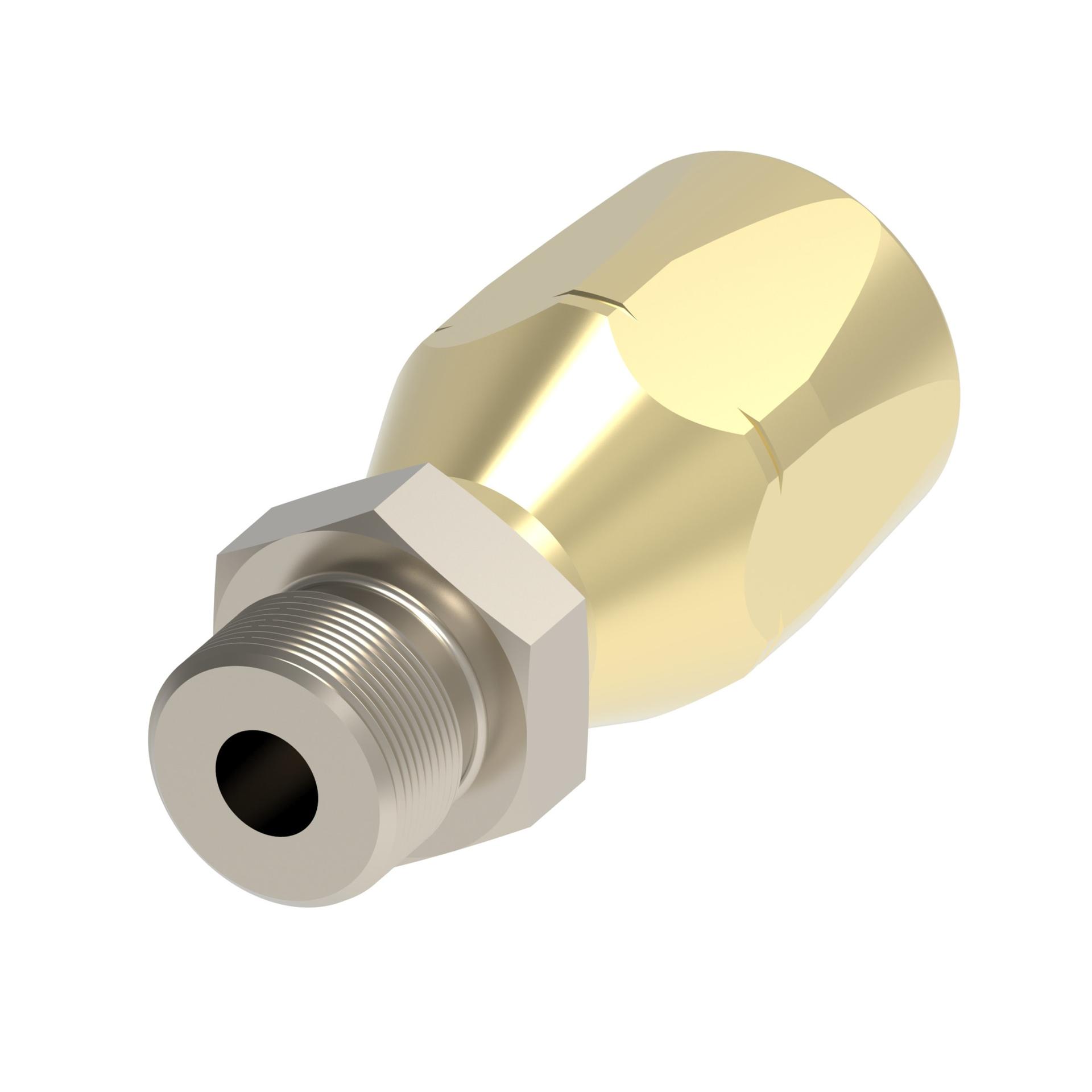

Hose Fittings 93-190911 (RIGHT)

Aeroquip by Danfoss

FH9045-2432-375

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
BrandAeroquip by Danfoss
Compatible hose ID2 in
Compatible hoses2651
Construction styleReusable
End gender 1Male
End gender 2Female
End Size 13 1/16 IN
End Size 22 IN
End type 1UNS
End type 2Line/Hose/Tube
FeatureMaximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability
Hex Size 13.12 in
Hex Size 22.44 in
Hose cut-off factor2.05 in
Hose dash size-32
Inside diameter1.39 in
Item typeFitting Assembly
Packaged Height14 in
Packaged Length7 in
Packaged Volume882 in³
Packaged Width9 in
Product Height3.12 in
Product Length/Depth3.89 in
Product materialMonel Aluminum Bronze
Product TypeMarine Military
Product Volume37.867 in³
Product Width3.12 in
Sub-brandNone
Thread sealantNo
Thread Size 13 1/16-12
Trade NameFH9045 Series
