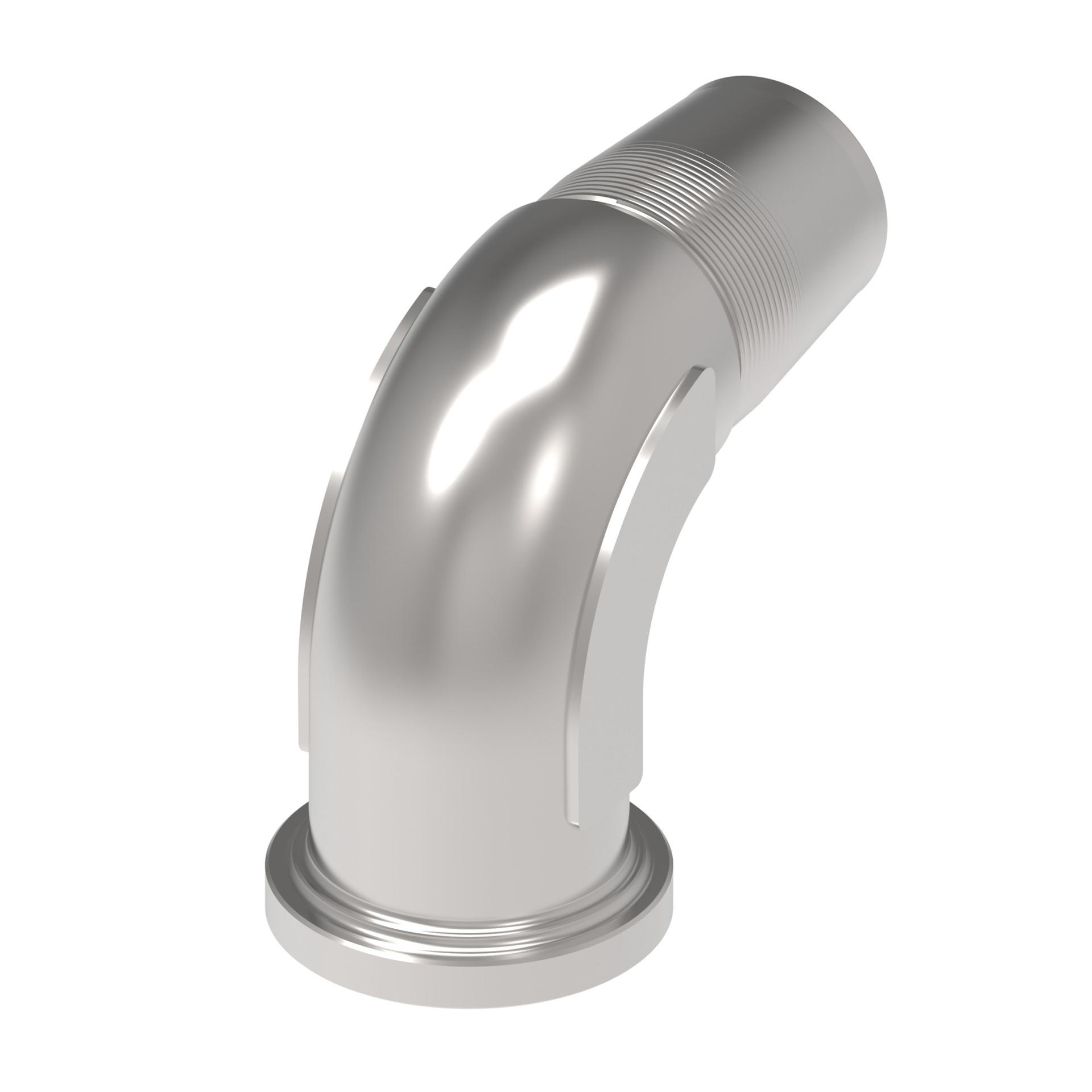

Aeroquip by Danfoss
FH9502-2432-407
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FH9502-2432-407
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 90 Degree | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 2 in | |
| Compatible hoses | 2651 | |
| Drop dimension | 3.06 | |
| End gender 2 | Male | |
| End Size 2 | 2 IN | |
| End type 1 | Flanged | |
| End type 2 | UNS | |
| Feature | Maximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability | |
| Hose cut-off factor | 2.26 in | |
| Hose dash size | -32 | |
| Inside diameter | 1.68 in | |
| Item type | Nipple | |
| Product Height | 4.18 in | |
| Product Length/Depth | 5.26 in | |
| Product material | Stainless Steel | |
| Product Type | Marine Military | |
| Product Volume | 60.244 in³ | |
| Product Width | 2.74 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 2 | 2-18 | |
| Trade Name | FH9502 Series |
