Danfoss
FJ2288-13-1216S
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

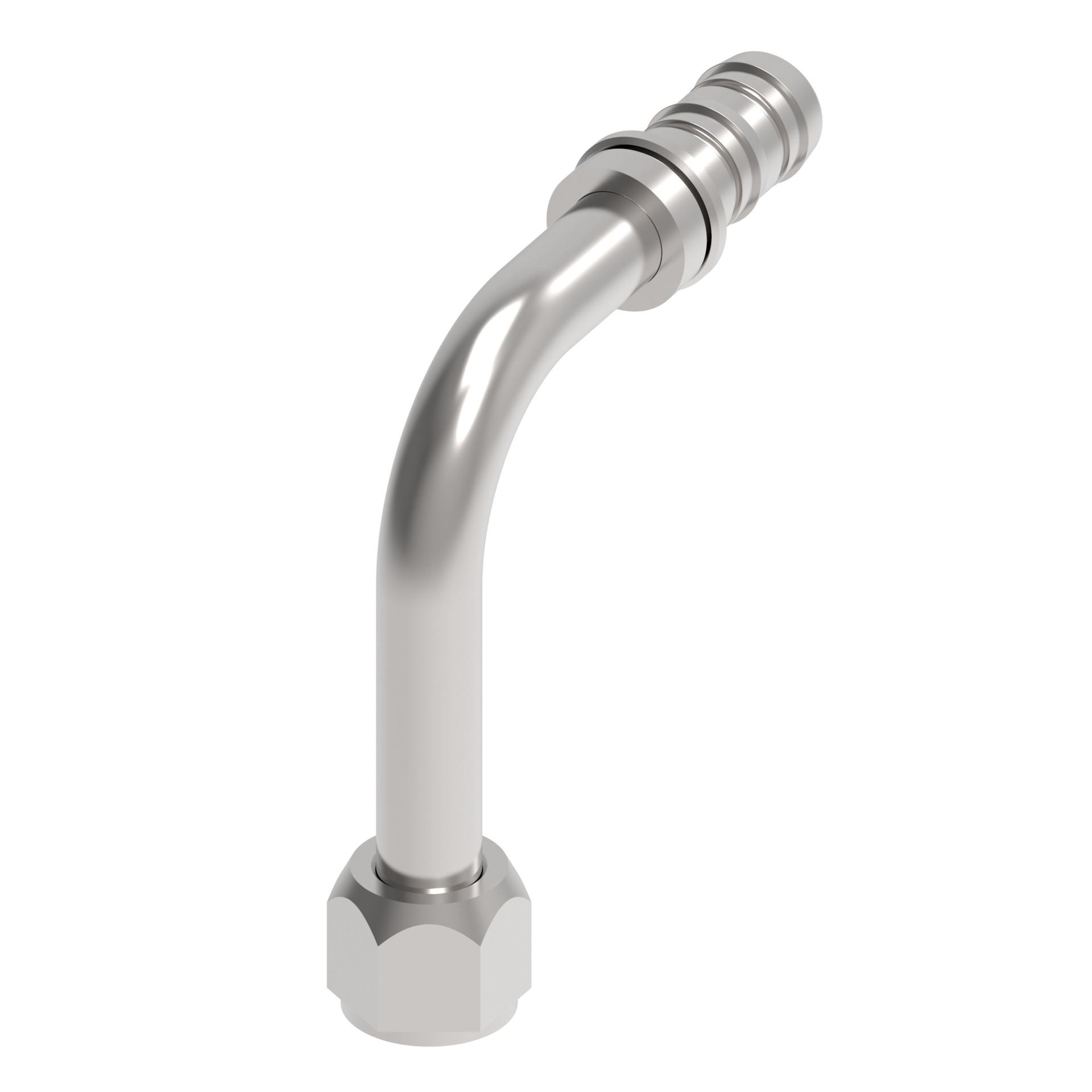

FJ2288-13-1216S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 90 Degree | |
| Brand | Danfoss | |
| Compatible hose ID | 1 in | |
| Construction style | Crimp | |
| Drop dimension | 4.33 | |
| End gender 1 | Female | |
| End Size 1 | 1 1/16 IN | |
| End type 2 | Line/Hose/Tube | |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production | |
| Finish/plating | DURA-KOTE | |
| Hex Size 2 | 1.25 in | |
| Hose cut-off factor | 3.16 in | |
| Hose dash size | -16 | |
| Inside diameter | .64 in | |
| Item type | Fitting Assembly | |
| Product Height | 5.506 in | |
| Product Length/Depth | 5.47 in | |
| Product material | Carbon Steel | |
| Product Type | A/C Refrigeration Products | |
| Product Volume | 37.647 in³ | |
| Product Weight | .65 lb | |
| Product Width | 1.25 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 1 1/16-14 | |
| Trade Name | E-Z Clip System |
