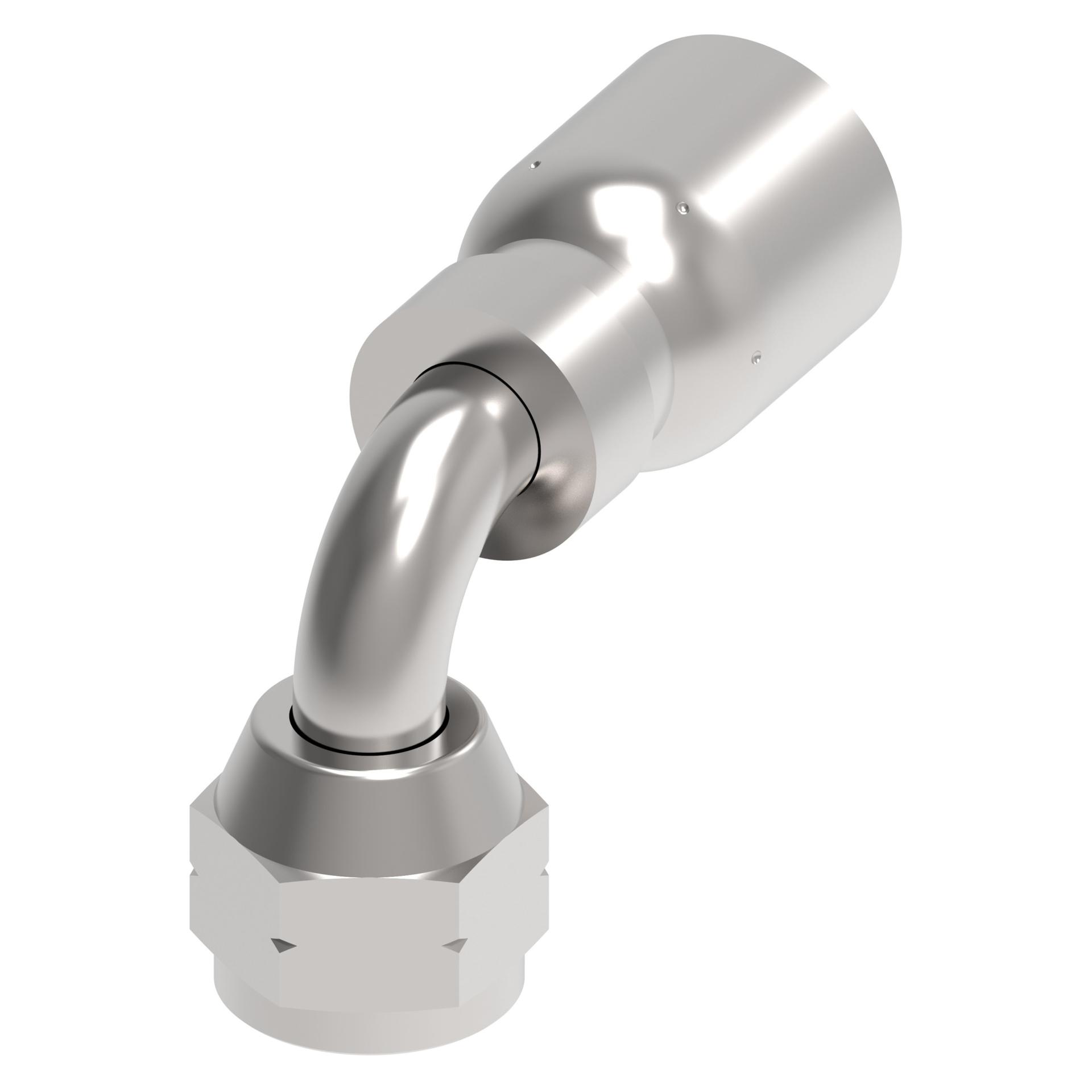

Hose Fittings FJ3247-S [RIGHT]

HOSE FTG, HP/06, FS/06, CS, 90D

FJ3247-0606S

Tools

Product specifications

Characteristic
Value
A dimension IN1.840
A dimension MM46.600
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN0.380
Construction StyleCrimp
Drop dimension IN0.850
Drop dimension MM21.60
End size 1-6
End type 1Female 45 degree swivel
Finish platingDura-Kote
Hex size 1 IN0.750
Hex size 1 MM19.050
Hose cut off factor IN1.050
Hose cut off factor MM26.700
Inside diameter IN0.230
Inside diameter MM5.900
Product height in1.690
Product height mm42.926
Product length in2.020
Product length mm51.308
Product materialCarbon steel
Product width in0.750
Product width mm19.050
Thread sealantNo
Thread size 15/8-18 UNF

General specifications

Characteristic
Value
EAN/UPC639789265821
