Danfoss

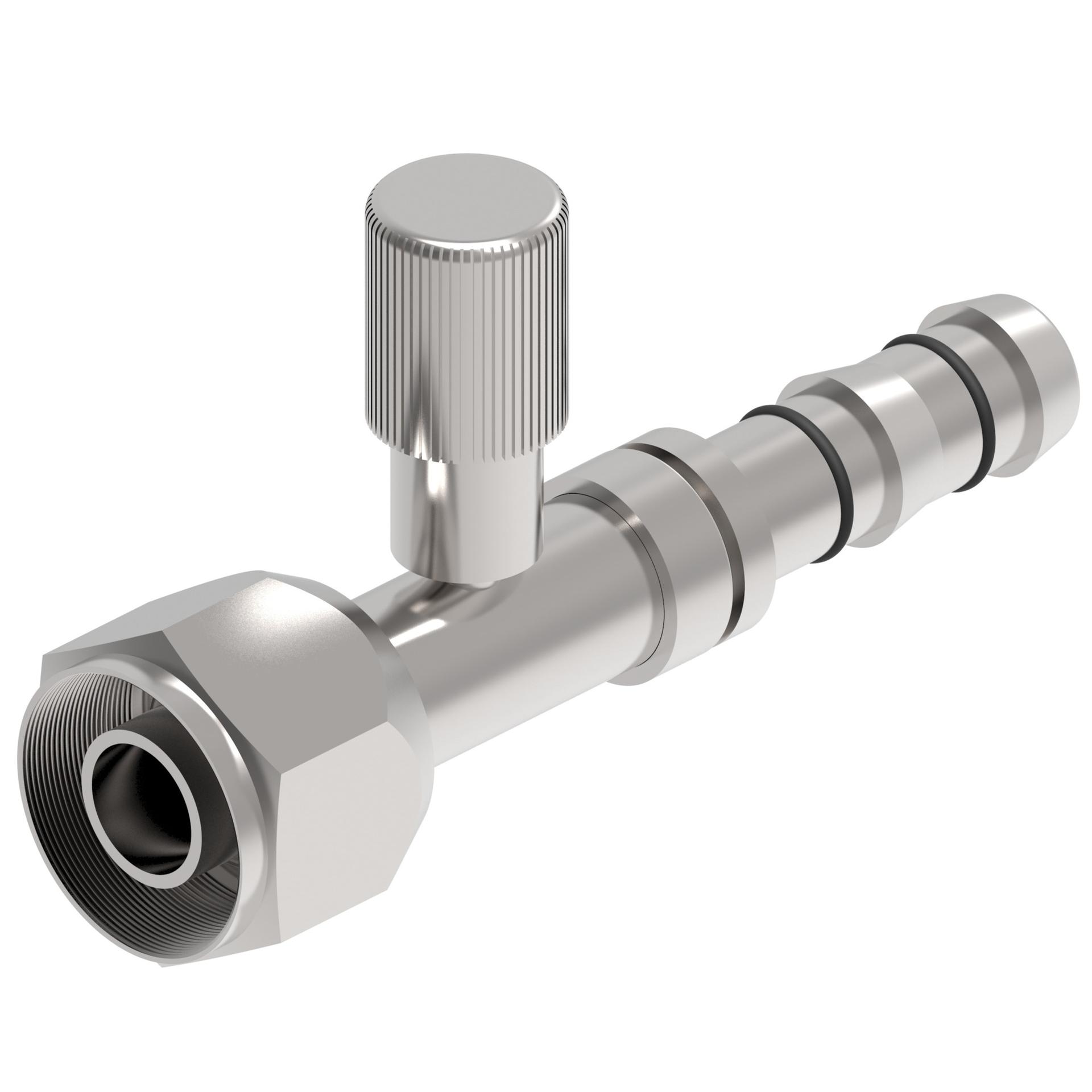

FJ3891-01-1010S
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FJ3891-01-1010S
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Danfoss | |
| Compatible hose ID | .63 in | |
| Compatible hoses | GH134 | |
| Construction style | Crimp | |
| End gender 1 | Female | |
| End type 1 | SAE 45 | |
| End type 2 | Line/Hose/Tube | |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production | |
| Finish/plating | DURA-KOTE | |
| Hex Size 1 | 1.13 in | |
| Hose cut-off factor | 2.25 in | |
| Hose dash size | -10 | |
| Inside diameter | .37 in | |
| Item type | Fitting Assembly | |
| Outside diameter | 1.13 in | |
| Packaged Height | 5.5 in | |
| Packaged Length | 6.75 in | |
| Packaged Volume | 250.594 in³ | |
| Packaged Weight | 1 lb | |
| Packaged Width | 6.75 in | |
| Product Height | 1.13 in | |
| Product Length/Depth | 4.24 in | |
| Product material | Carbon Steel | |
| Product Type | A/C Refrigeration Products | |
| Product Volume | 5.414 in³ | |
| Product Width | 1.13 in | |
| Seal part number if included | 1F40106-10 | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | M24X2 | |
| Trade Name | E-Z Clip System | |
| UNSPSC | 40183100 | |
| UPC | 815628020909 |
