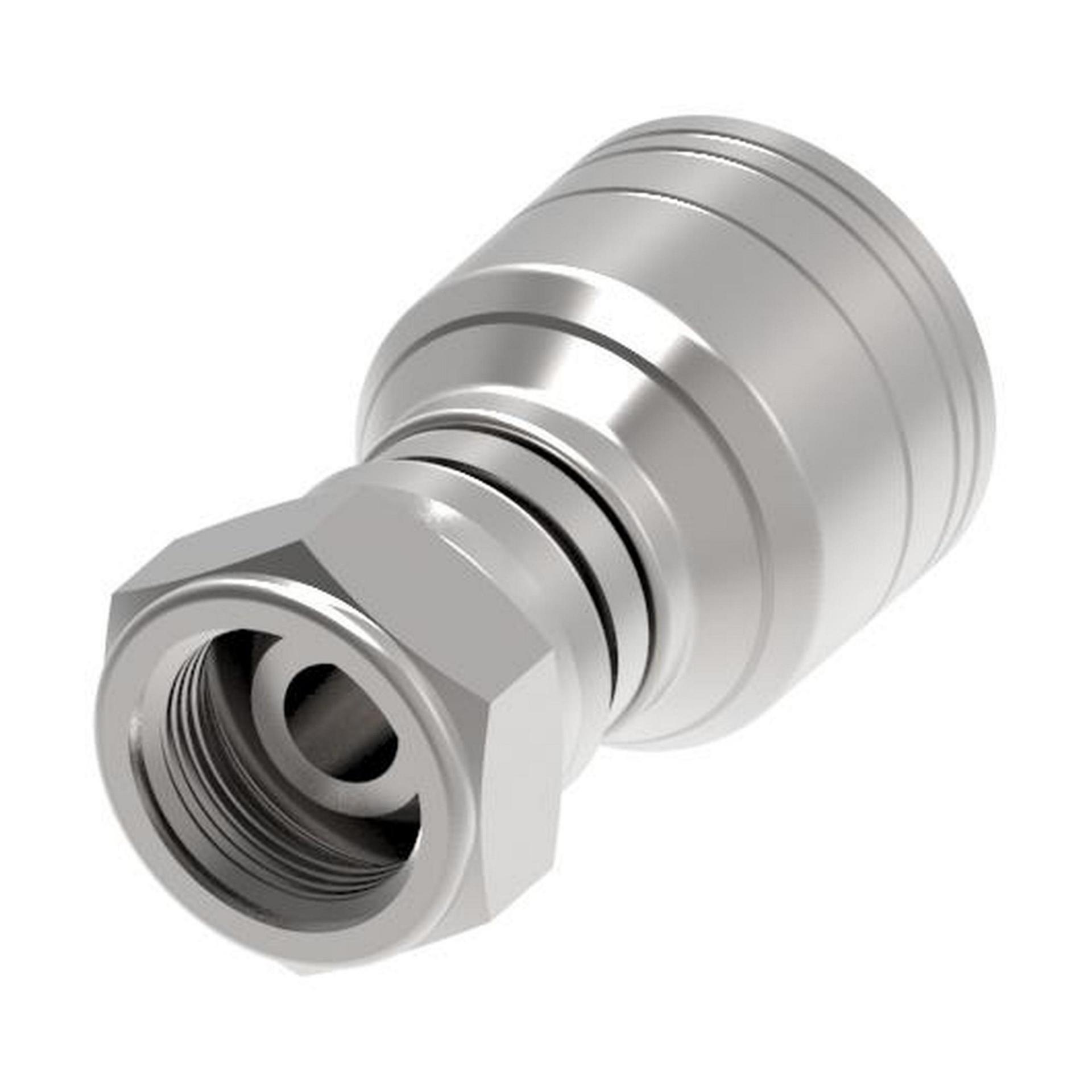

Hose Fittings FJ9364 (RIGHT)

Aeroquip by Danfoss

FJ9364-2020-41

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
BrandAeroquip by Danfoss
Compatible hose ID1.25 in
Compatible hosesAE374
Compatible tube OD1.25 in
Compliance(s)MIL-F-24787/2, Group VI, Type A
End gender 1Female
End Size 11 5/8 IN
End type 1SAE 37
End type 2Line/Hose/Tube
FeatureMaximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability
Hex Size 12 in
Hose cut-off factor2.33 in
Hose dash size-20
Inside diameter1.05 in
Item typeFitting Assembly
Outside diameter2.83 in
Packaged Height14 in
Packaged Length7 in
Packaged Volume882 in³
Packaged Weight4.45 lb
Packaged Width9 in
Product Diameter2.83 in
Product Height2.83 in
Product Length/Depth4.91 in
Product materialMonel and Carbon Steel
Product TypeMarine Military
Product Volume39.324 in³
Product Weight3.45 lb
Product Width2.83 in
Sub-brandNone
Thread sealantNo
Thread Size 11 5/8-12
Trade NameFJ9364 Series
