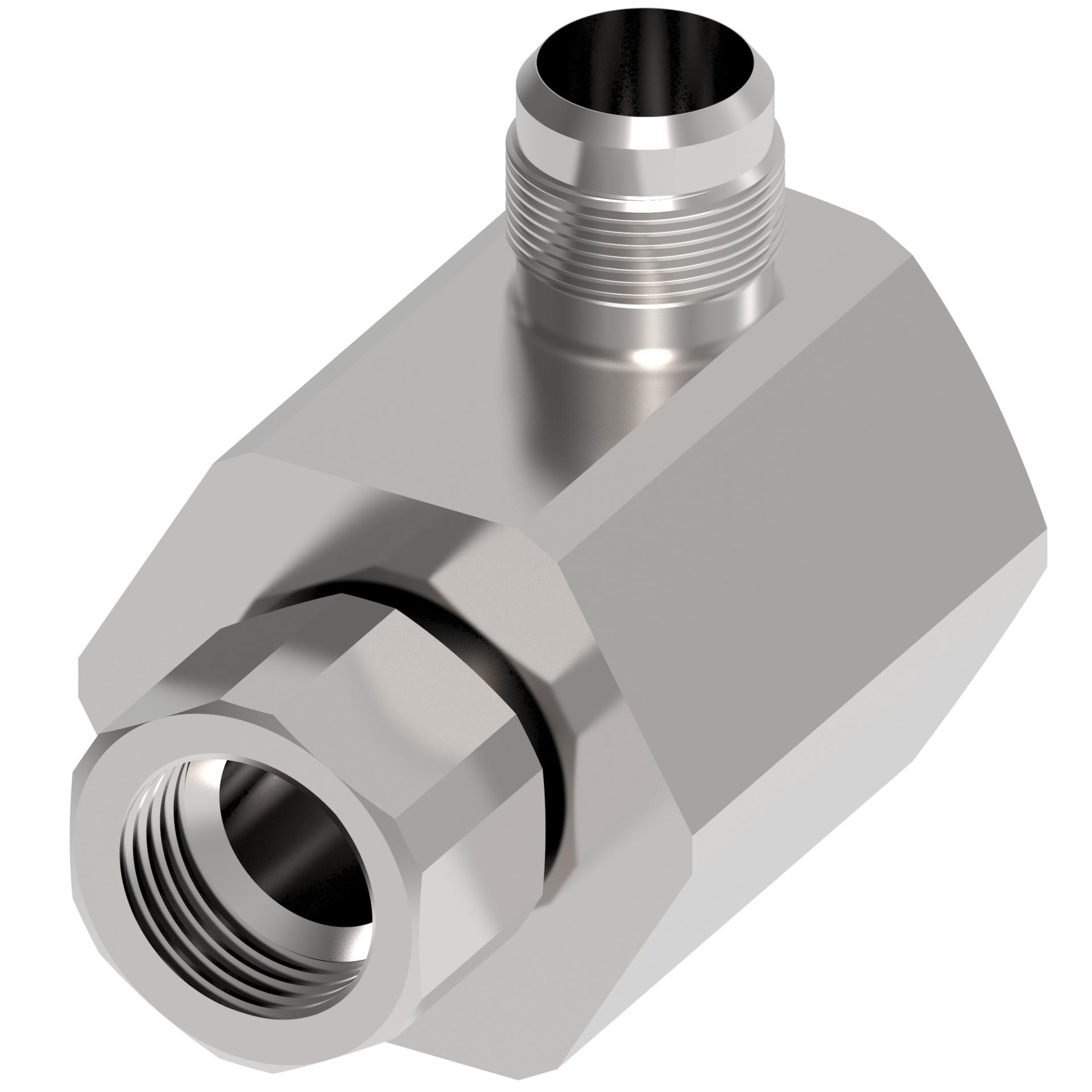

Danfoss
FS59011-1616-01
This product has been discontinued and is no longer available.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FS59011-1616-01
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 90 Degree | |
| Brand | Danfoss | |
| Drop dimension | 2.16 | |
| End gender 1 | Male | |
| End gender 2 | Female | |
| End Size 1 | 1 IN | |
| End Size 2 | 1 IN | |
| End type 1 | SAE 37 | |
| End type 2 | SAE 37 | |
| Finish/plating | Zinc | |
| Fluid | Hydraulic Oils, Water, Glycol | |
| Fluid compatibility | Hydraulic Oils, Water, Glycol | |
| Function | Easier installation in tight spacesWide range of styles, configurationsDesigned for safety and reliability | |
| Hex Size 1 | 2.5 in | |
| Hex Size 2 | 1.5 in | |
| Item type | Swivel Joint Complete | |
| Packaged Height | 5 in | |
| Packaged Length | 8 in | |
| Packaged Volume | 160 in³ | |
| Packaged Weight | 1.01 lb | |
| Packaged Width | 4 in | |
| Product Height | 2.16 in | |
| Product Length/Depth | 3.91 in | |
| Product material | Steel | |
| Product Type | Swivel Joints | |
| Product Volume | 18.242 in³ | |
| Product Weight | .01 lb | |
| Product Width | 2.16 in | |
| Sub-brand | None | |
| Swivel size | 1 IN | |
| Thread sealant | No | |
| Thread Size 1 | 1 5/16-12 | |
| Thread Size 2 | 1 5/16-12 | |
| Trade Name | FS5900 Series | |
| UPC | 678146167538 | |
| Working pressure | 3000 Psi | |
| Working temperature - max | 250 °F | |
| Working temperature - min | -40 °F |
