Aeroquip by Danfoss
FW1418-4840-407
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

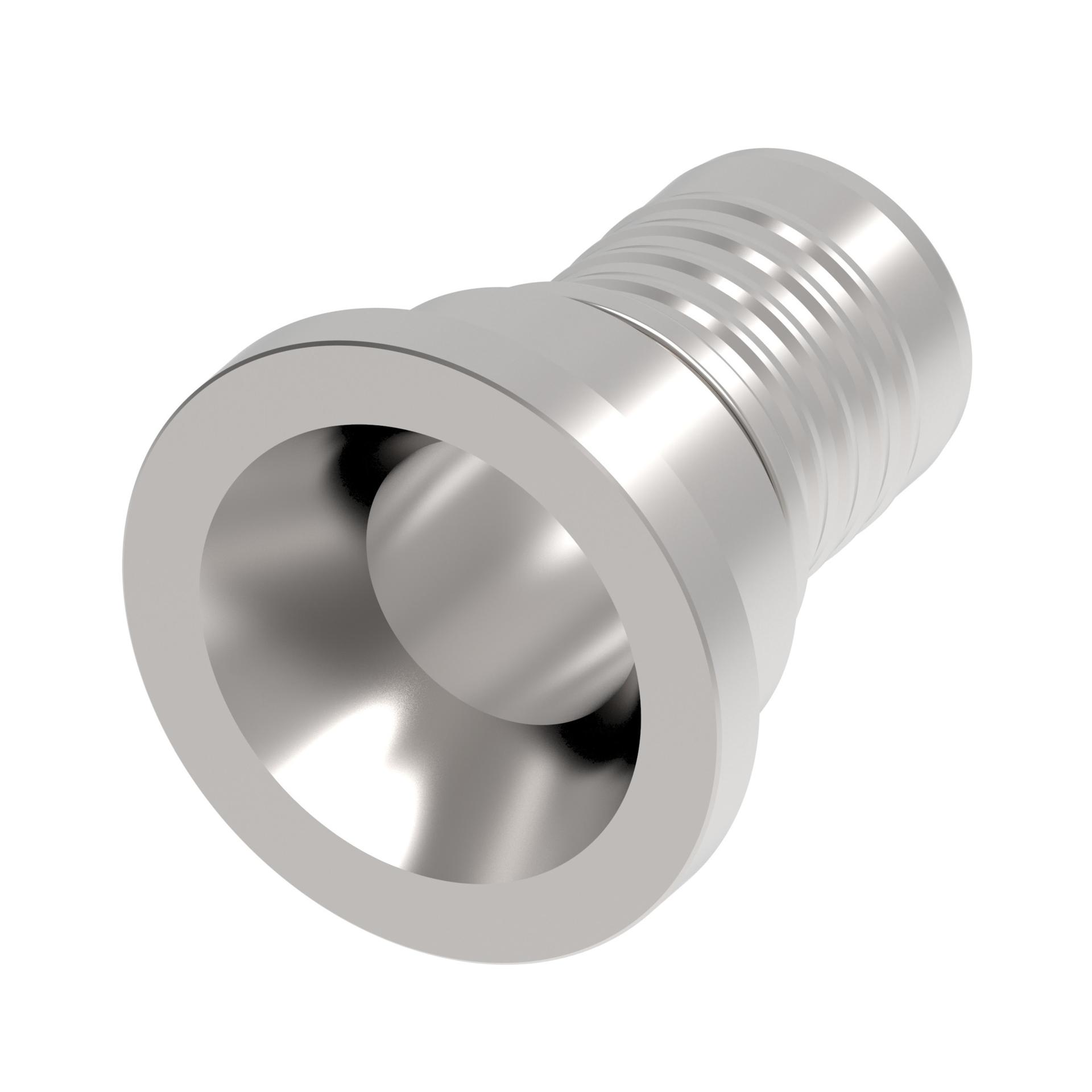

FW1418-4840-407
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 2.5 in | |
| Compatible hoses | FC132 | |
| Construction style | Crimp | |
| End type 1 | Flanged | |
| End type 2 | Line/Hose/Tube | |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life | |
| Hose cut-off factor | 1.86 in | |
| Hose dash size | -40 | |
| Inside diameter | 2.06 in | |
| Item type | Nipple | |
| Product Diameter | 4.5 in | |
| Product Height | 4.5 in | |
| Product Length/Depth | 5.11 in | |
| Product material | Stainless Steel | |
| Product Type | Crimp Hose Fittings | |
| Product Volume | 103.478 in³ | |
| Product Width | 4.5 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Trade Name | FW1418 Series |
