Aeroquip by Danfoss

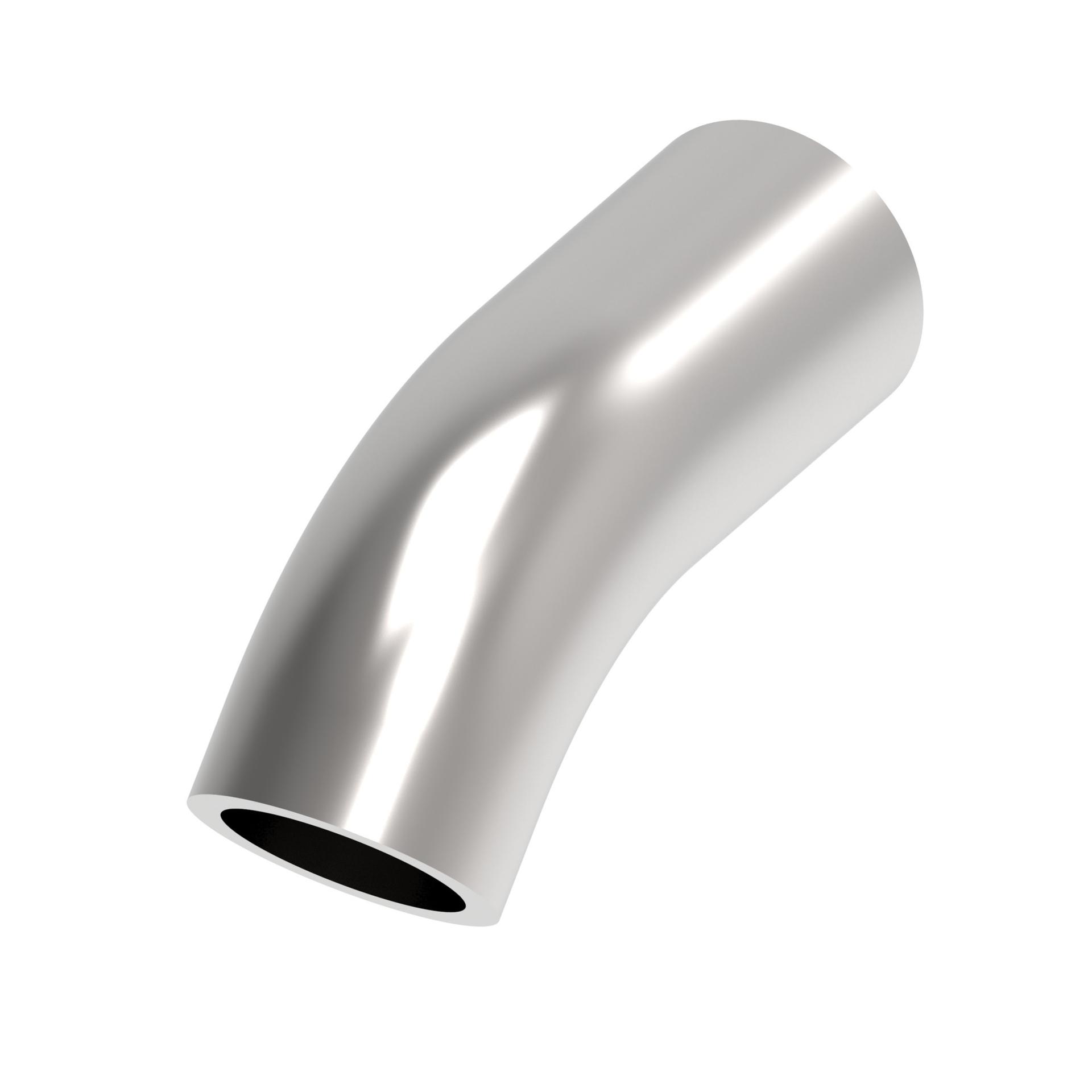

FW1936-12S

Other, misc
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Product specifications

Characteristic
Value
Angle (shape)45 Degree
BrandAeroquip by Danfoss
Compatible hose ID.75 in
Construction styleCrimp
Drop dimension.55
End type 1Line/Hose/Tube
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Finish/platingDURA-KOTE
Hose dash size-12
Inside diameter.58 in
Item typeTube Connector
Product Height1.29 in
Product Length/Depth2.3 in
Product TypeCrimp Hose Fittings
Product Volume2.225 in³
Product Weight.1 lb
Product Width.75 in
Product materialCarbon Steel
Sub-brandNone
Thread sealantNo
Trade NameFW1936 Series
