Danfoss

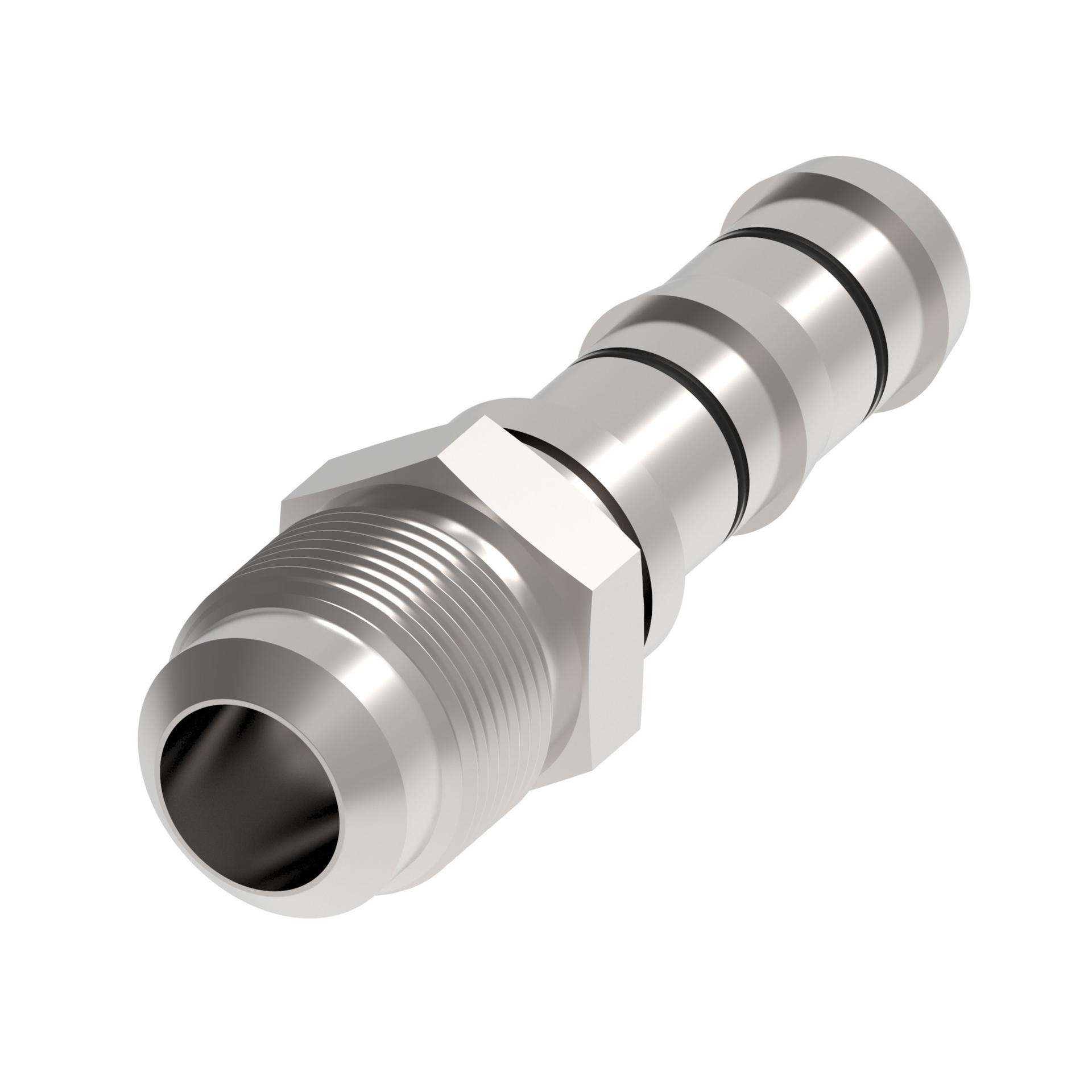

GA24086-12-12
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
GA24086-12-12
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Danfoss | |
| Compatible hose ID | 19.05 mm | |
| Compatible hoses | GH134 | |
| End gender 1 | Male | |
| End Size 1 | 1 1/16 IN | |
| End type 1 | SAE 45 | |
| End type 2 | Line/Hose/Tube | |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production | |
| Finish/plating | Zinc Plating | |
| Hex Size 1 | 27 mm | |
| Hose dash size | -12 | |
| Inside diameter | 11.9 mm | |
| Item type | Nipple | |
| Product Height | 31.17 mm | |
| Product Length/Depth | 80.2 mm | |
| Product material | Carbon steel | |
| Product Type | A/C Refrigeration Products | |
| Product Volume | 67.496 cm³ | |
| Product Weight | .13 kg | |
| Product Width | 27 mm | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 1 1/16-14 | |
| Trade Name | E-Z Clip System |
