Danfoss
GA25123-16
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

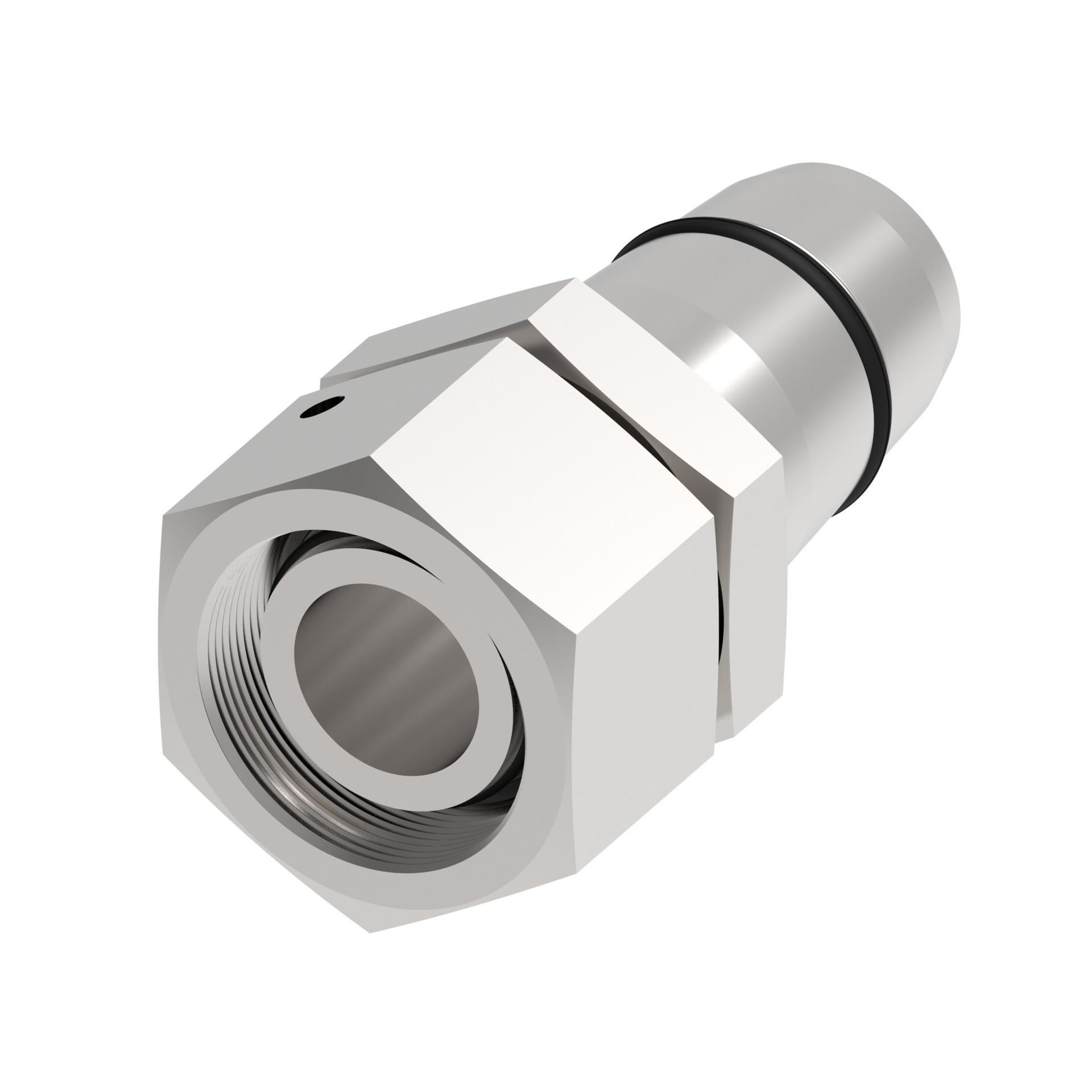

GA25123-16
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | Straight |
| Brand | Danfoss |
| Compatible hose ID | 1 in |
| Compatible hoses | FC800 |
| Construction style | Reusable |
| End gender 1 | Female |
| End type 1 | Metric |
| End type 2 | Line/Hose/Tube |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production |
| Finish/plating | Zinc Plating |
| Hex Size 1 | 1.41 in |
| Hex Size 2 | 1.41 in |
| Hose cut-off factor | 1.575 in |
| Hose dash size | -16 |
| Inside diameter | .69 in |
| Item type | Nipple Assembly |
| Product Height | 1.63 in |
| Product Length/Depth | 2.74 in |
| Product material | Carbon Steel |
| Product Type | Reusable Hose Fittings |
| Product Volume | 6.297 in³ |
| Product Weight | .58 lb |
| Product Width | 1.41 in |
| Sub-brand | None |
| Thread sealant | No |
| Thread Size 1 | M30X2 |
| Trade Name | GA25123 Series |
