Aeroquip by Danfoss
GA590-20
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

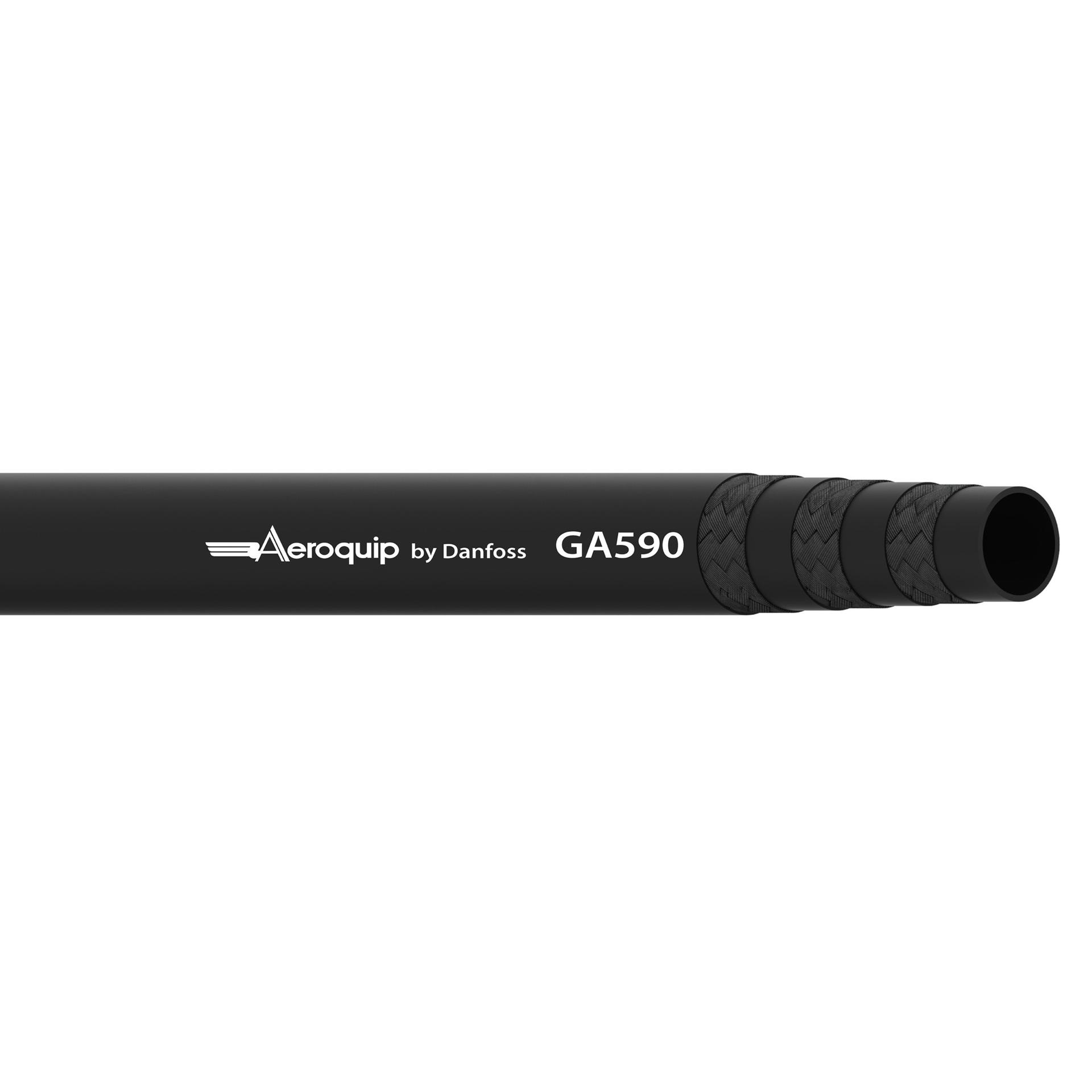

GA590-20
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Hydraulic systems with petroleum and water-glycol based fluids, for lubricating oils and water. | |
| Bend radius - min | 6.29 in | |
| Brand | Aeroquip by Danfoss | |
| Burst pressure | 2900 Psi | |
| Construction | 3 Braid | |
| Cover material | Chloroprene Rubber | |
| Dash size | -20 | |
| Feature | Maximum durability under harsh operating conditionsRobust construction able to withstand highest pressuresSystem engineered to extend hose assembly life | |
| Inside diameter | 1.12 in | |
| Lay line style | Ink Jet | |
| Outside diameter | 1.5 in | |
| Product Height | 1.12 in | |
| Product Length/Depth | 1 ft | |
| Product Type | Rubber Hydraulic | |
| Product Volume | 15.053 in³ | |
| Product Weight | 4.77 lb | |
| Product Width | 1.12 in | |
| Reinforcement material | Textile | |
| Sub-brand | None | |
| Trade Name | GA590 Series | |
| Tube material | Nitrile | |
| Tube wall thickness | .19 in | |
| Working pressure | 725 Psi | |
| Working temperature - max | 248 °F | |
| Working temperature - min | -40 °F |
