Aeroquip by Danfoss

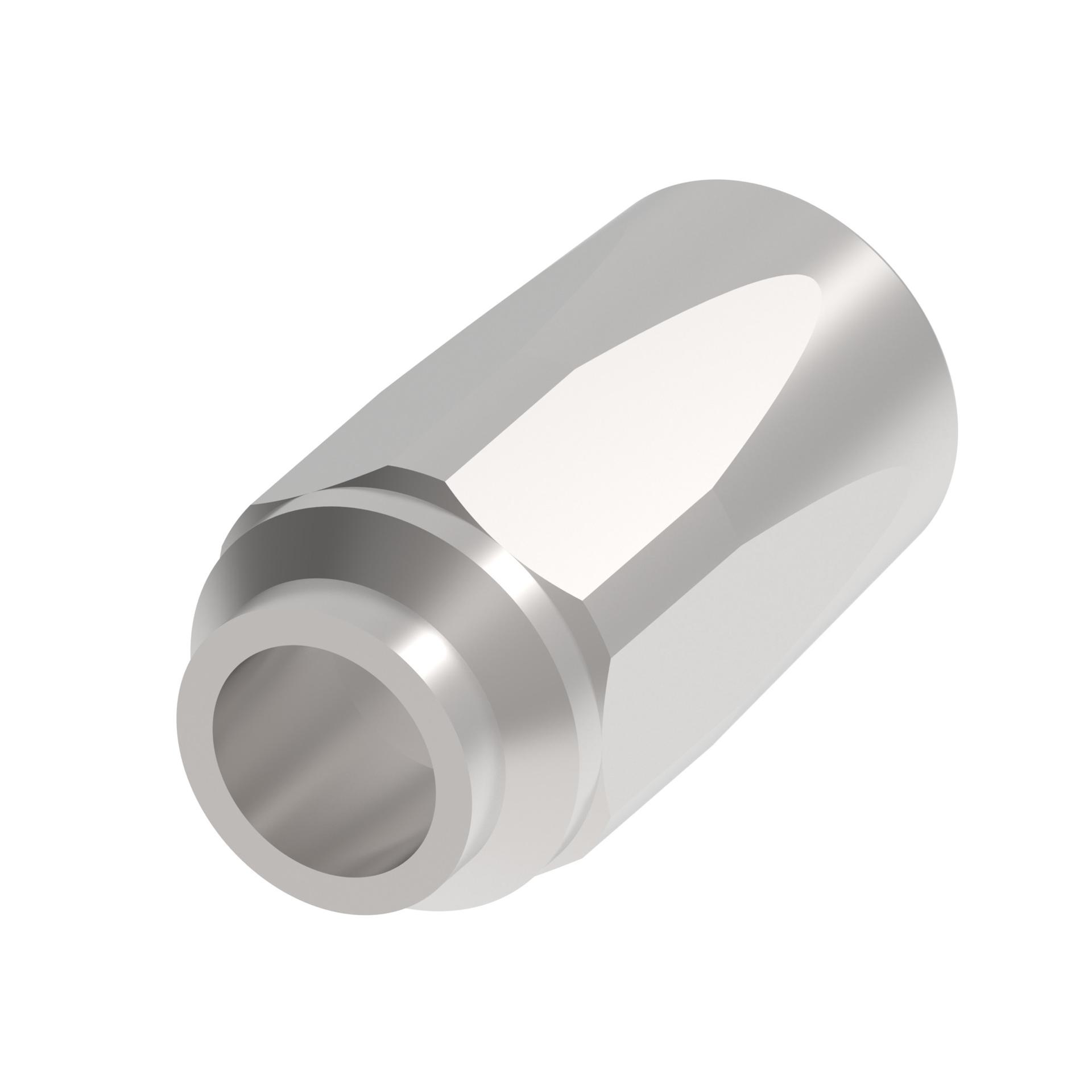

GC2542-16
Ftng (reus), R1 FC2542-16S
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID | 1 in |
| Compatible hoses | GH663-16 |
| Construction style | Reusable |
| End Size 1 | 1 3/16 IN |
| End gender 1 | Female |
| End type 1 | UN |
| End type 2 | Line/Hose/Tube |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production |
| Finish/plating | DURA-KOTE |
| Hex Size 1 | 1.81 in |
| Hose dash size | -16 |
| Inside diameter | 1.12 in |
| Item type | Socket |
| Product Height | 2.09 in |
| Product Length/Depth | 2.8 in |
| Product Type | Reusable Hose Fittings |
| Product Volume | 10.592 in³ |
| Product Weight | .06 lb |
| Product Width | 1.81 in |
| Product material | Carbon Steel |
| Sub-brand | None |
| Thread Size 1 | 1 3/16-16 |
| Thread sealant | No |
| Trade Name | GC2542 Series |
