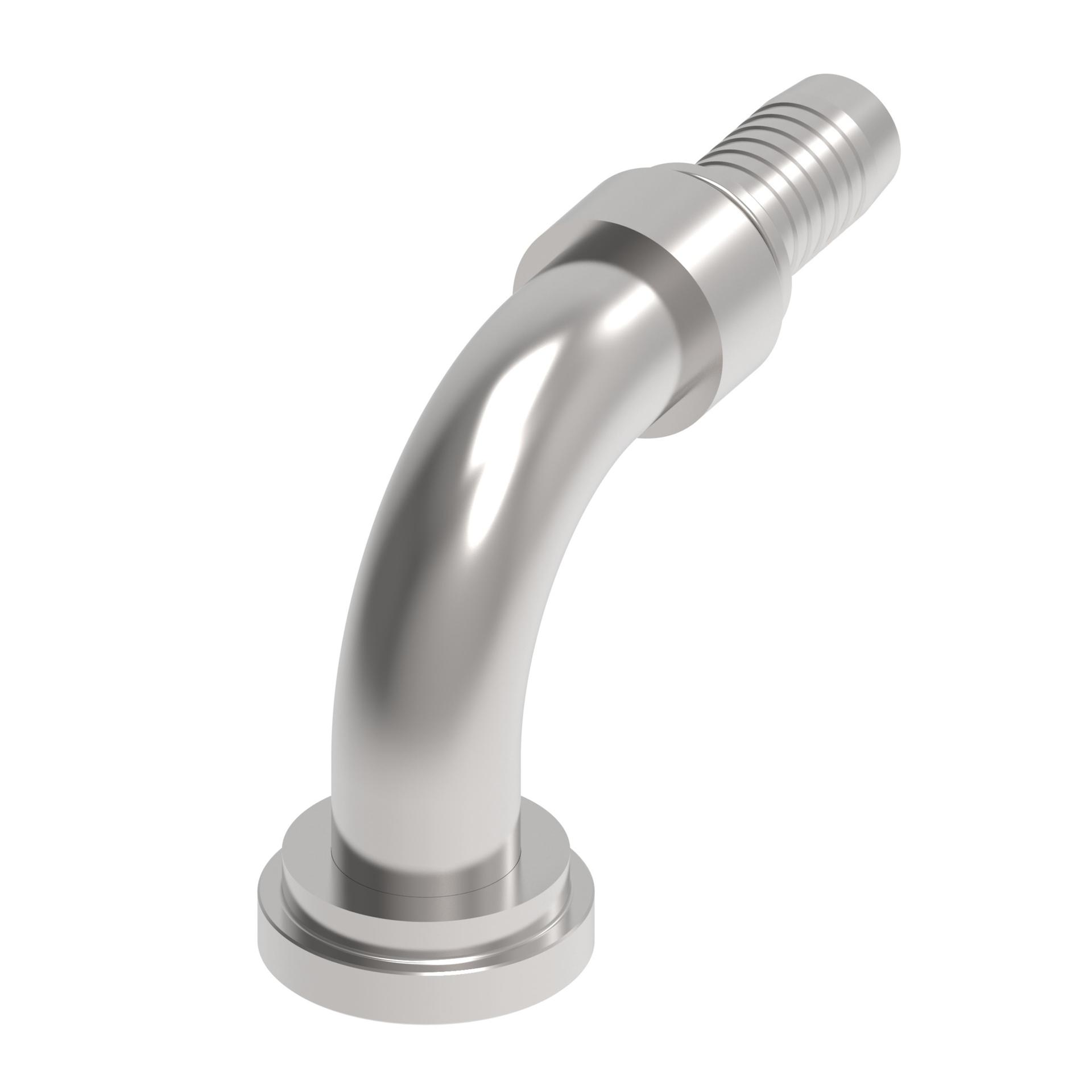

![Hose Fittings GC8727-XX [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F215930%2FID433457682012-0101_preview.jpg&w=1920&q=75)
Aeroquip by Danfoss
GC8727-24-16
FTNG (PERM), 4-SPRL
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Product specifications
Characteristic | Value |
---|---|
Angle (shape) | 90 Degree |
Brand | Aeroquip by Danfoss |
Compatible hose ID | 1 in |
Construction style | Crimp |
Drop dimension | 2.89 |
End type 1 | Flanged |
End type 2 | Line/Hose/Tube |
Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life |
Finish/plating | DURA-KOTE |
Hose dash size | -16 |
Inside diameter | .78 in |
Item type | Nipple Assembly |
Product Height | 3.64 in |
Product Length/Depth | 5.85 in |
Product Type | Crimp Hose Fittings |
Product Volume | 50.467 in³ |
Product Weight | 1.32 lb |
Product Width | 2.37 in |
Product material | Carbon Steel |
Sub-brand | None |
Thread sealant | No |
Trade Name | GC8727 Series |
