Aeroquip by Danfoss

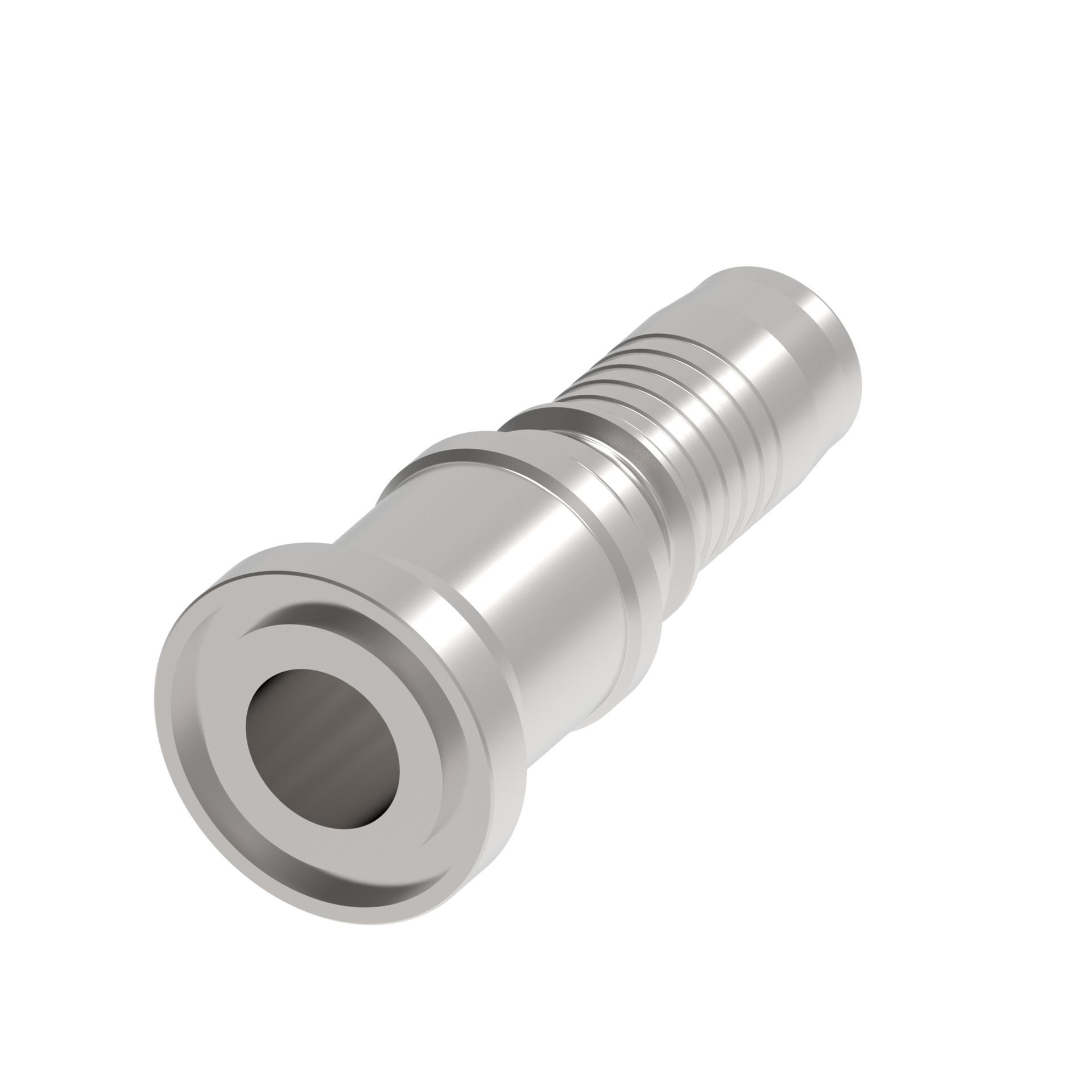

GH10240-16
FTNG (PERM), 4-SPRL
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID | 1 in |
| Compatible hoses | GH506 HOSE |
| Construction style | Crimp |
| End type 1 | Flanged |
| End type 2 | Line/Hose/Tube |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life |
| Finish/plating | DURA-KOTE |
| Hose cut-off factor | 2.13 in |
| Hose dash size | -16 |
| Inside diameter | .78 in |
| Item type | Nipple |
| Product Diameter | 1.75 in |
| Product Height | 1.75 in |
| Product Length/Depth | 4.02 in |
| Product Type | Crimp Hose Fittings |
| Product Volume | 12.311 in³ |
| Product Weight | 1.1 lb |
| Product Width | 1.75 in |
| Product material | Carbon Steel |
| Sub-brand | None |
| Thread sealant | No |
| Trade Name | GH10240 Series |
