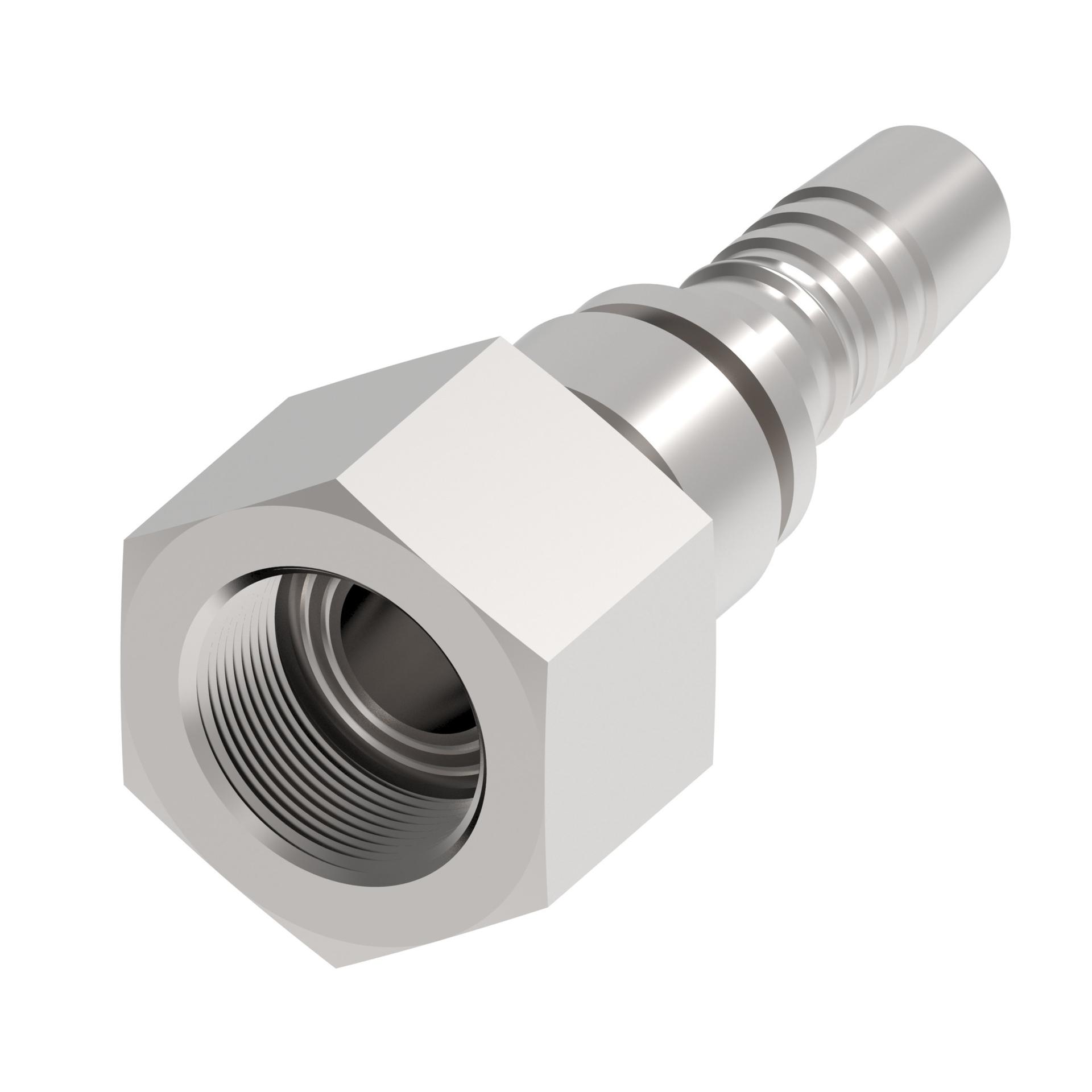

Aeroquip by Danfoss
GL23356-16-8
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
GL23356-16-8
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 12.7 mm | |
| Compatible hoses | 2781 | |
| Construction style | Crimp | |
| End gender 1 | Female | |
| End type 2 | Line/Hose/Tube | |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life | |
| Finish/plating | Zinc Plating | |
| Hex Size 1 | 30 mm | |
| Hose dash size | -8 | |
| Inside diameter | 9.6 mm | |
| Item type | Nipple Assembly | |
| Product Height | 34.64 mm | |
| Product Length/Depth | 63.2 mm | |
| Product material | Carbon Steel | |
| Product Type | Crimp Hose Fittings | |
| Product Volume | 65.677 cm³ | |
| Product Weight | .12 kg | |
| Product Width | 30 mm | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | W21.80X1/14 | |
| Trade Name | GL23356 Series |
