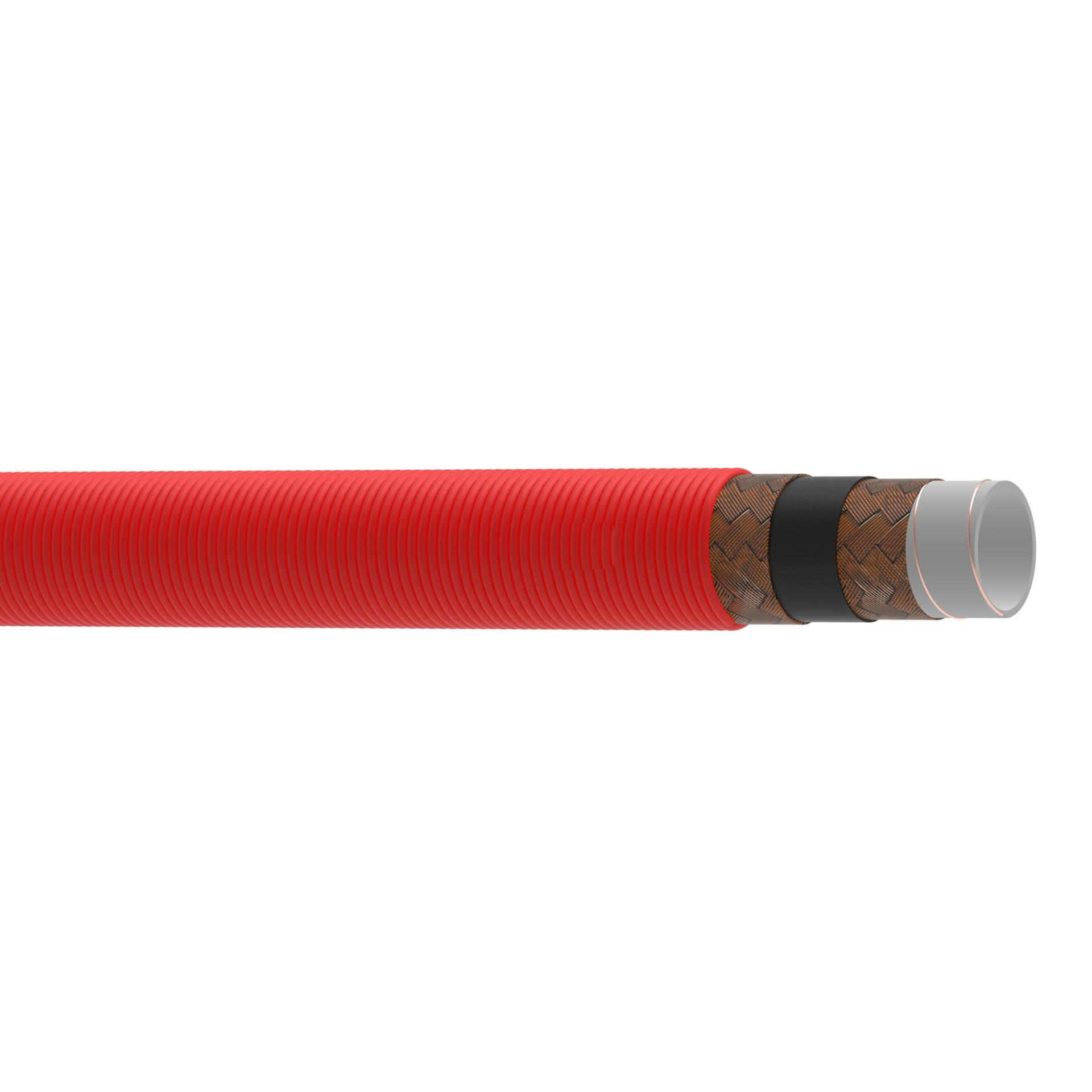

Boston by Danfoss
H006032-150
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
H006032-150
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Chemical transfer. | |
| Bend radius - min | 12 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 2000 Psi | |
| Color | Red | |
| Compliance(s) | FDA Approved | |
| Construction | 4 Ply | |
| Cover material | Synthetic Rubber | |
| Cover style | Corrugated | |
| Dash size | -32 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 2 in | |
| Lay line style | Embossed | |
| Outside diameter | 2.65 in | |
| Product Height | 2.65 in | |
| Product Length/Depth | 150 ft | |
| Product Type | Industrial Hose | |
| Product Weight | 1.74 lb | |
| Product Width | 2.65 in | |
| Qualified hose fittings | Cam and groove, Combination nipple, Male MPT | |
| Reinforcement material | Wire | |
| Sub-brand | None | |
| Trade Name | H0060 Series | |
| Tube material | UHMW-PE | |
| Vacuum rating | 28 iHg | |
| Working pressure | 500 Psi | |
| Working temperature - max | 176 °F | |
| Working temperature - min | -40 °F |
