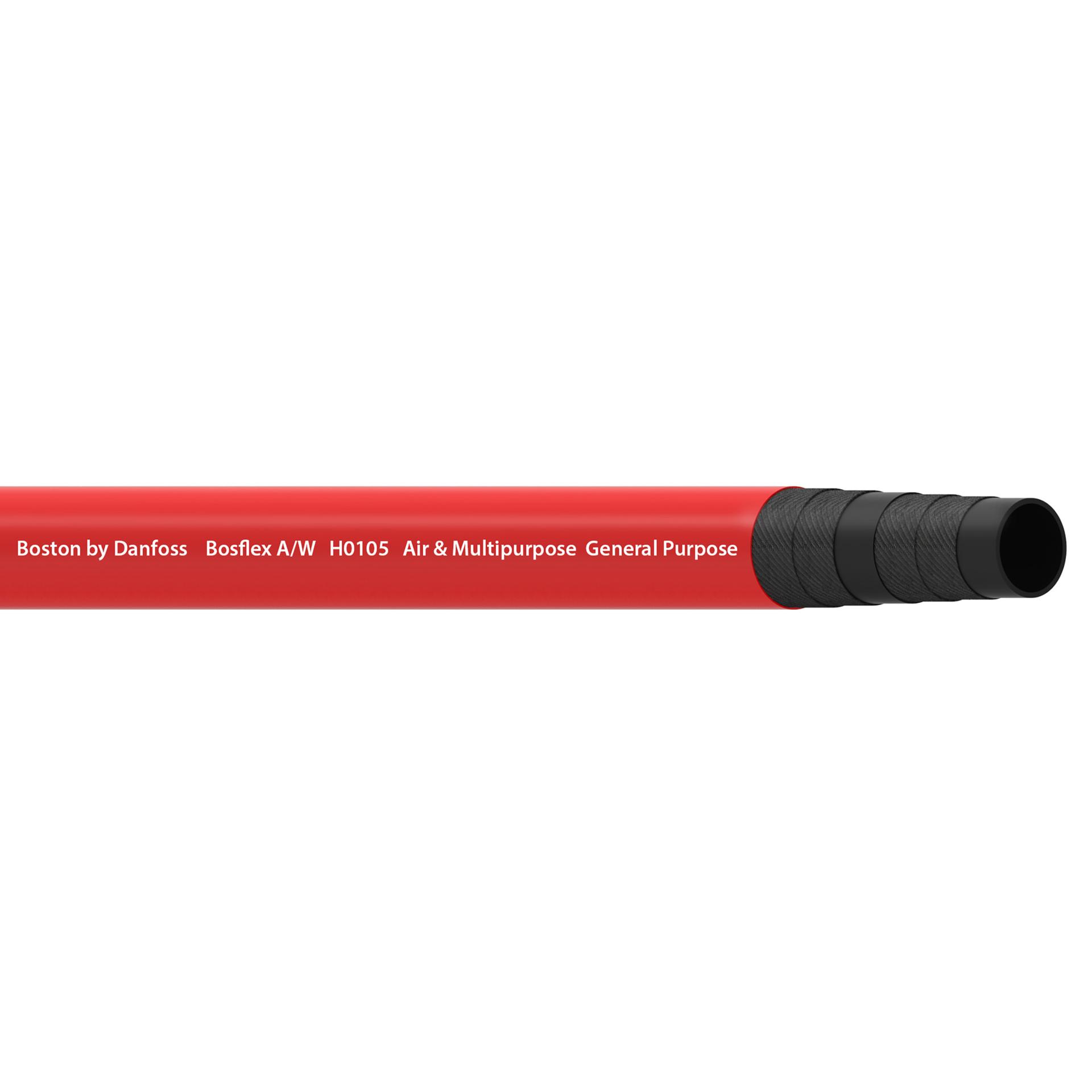

Boston by Danfoss
H010506RD-75RG
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
H010506RD-75RG
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | General air and water. | |
| Bend radius - min | 3.5 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 1200 Psi | |
| Color | Red | |
| Conductivity | Conductive | |
| Construction | 4 Spiral | |
| Cover material | EPDM | |
| Cover style | Pin-Pricked | |
| Dash size | -6 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | .38 in | |
| Lay line style | Ink Jet | |
| Outside diameter | .74 in | |
| Package form | Reel | |
| Packaged Weight | 13.5 lb | |
| Product Height | .74 in | |
| Product Length/Depth | 75 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 492.84 in³ | |
| Product Weight | 13.5 lb | |
| Product Width | .74 in | |
| Qualified hose fittings | Z, 1A, Barbed inserts, Quick Disconnect | |
| Reinforcement material | Polyester | |
| Sub-brand | None | |
| Trade Name | Bosflex A/W | |
| Tube material | EPDM | |
| Tube wall thickness | .1875 in | |
| UPC | 639789340313 | |
| Working pressure | 300 Psi | |
| Working temperature - max | 180 °F | |
| Working temperature - min | -40 °F |
