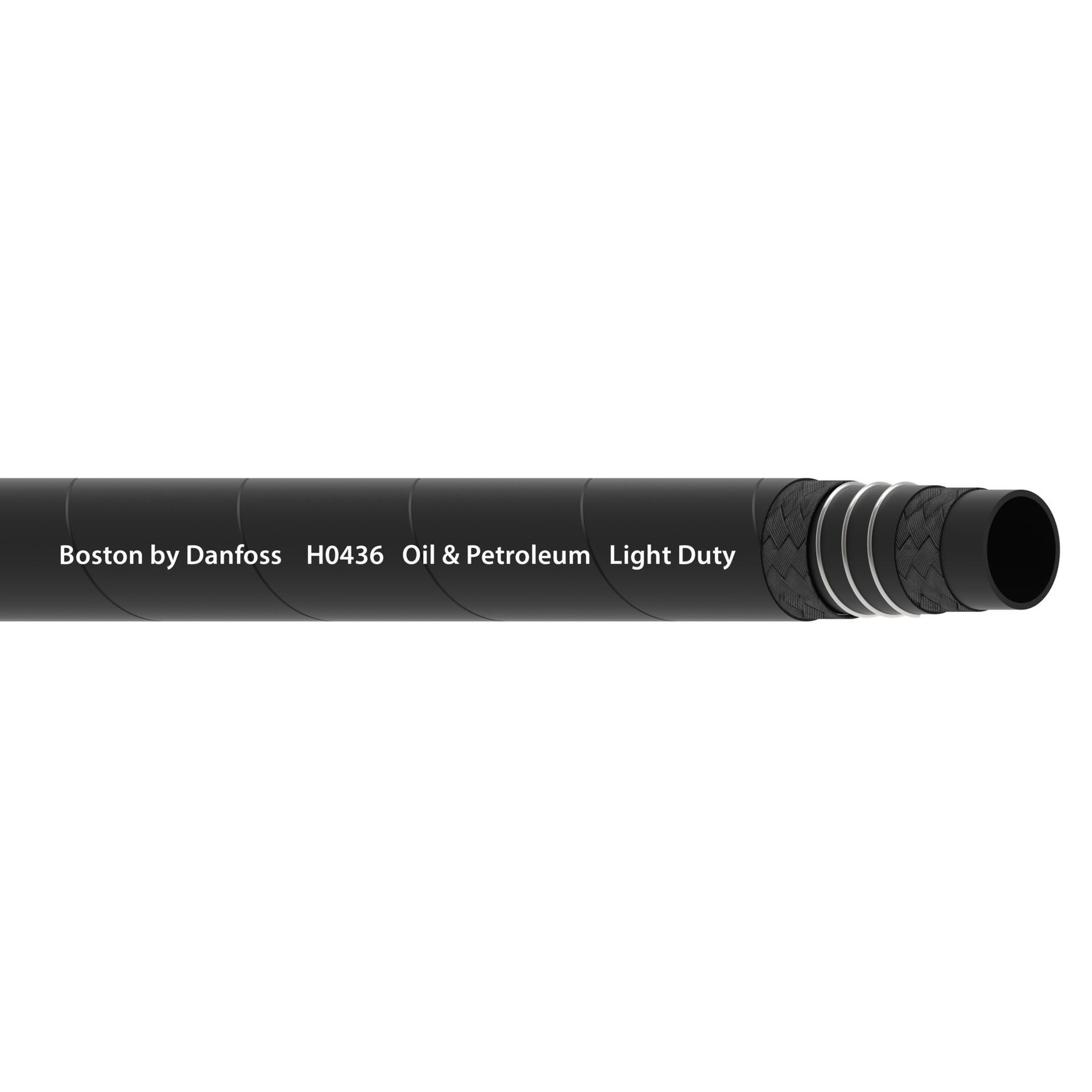

Boston by Danfoss
H043632-100
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
H043632-100
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Transfer of acids, chemicals, solvents, and petroleum products; Loading and unloading, pumping, suction, or gravity flow discharge | |
| Bend radius - min | 6 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 400 Psi | |
| Color | Black | |
| Conductivity | Conductive | |
| Construction | 2-ply braid | |
| Cover material | Synthetic Rubber | |
| Dash size | -32 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 2 in | |
| Lay line style | Embossed | |
| Outside diameter | 2.56 in | |
| Packaged Weight | 128 lb | |
| Product Height | 2.56 in | |
| Product Length/Depth | 100 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 7864.32 in³ | |
| Product Weight | 128 lb | |
| Product Width | 2.56 in | |
| Reinforcement material | Polyester | |
| Sub-brand | None | |
| Trade Name | H0436 Series | |
| Tube material | Synthetic Rubber | |
| Tube wall thickness | .375 in | |
| UPC | 639789270191 | |
| Vacuum rating | 28 iHg | |
| Working pressure | 100 Psi | |
| Working temperature - max | 160 °F | |
| Working temperature - min | -40 °F |
