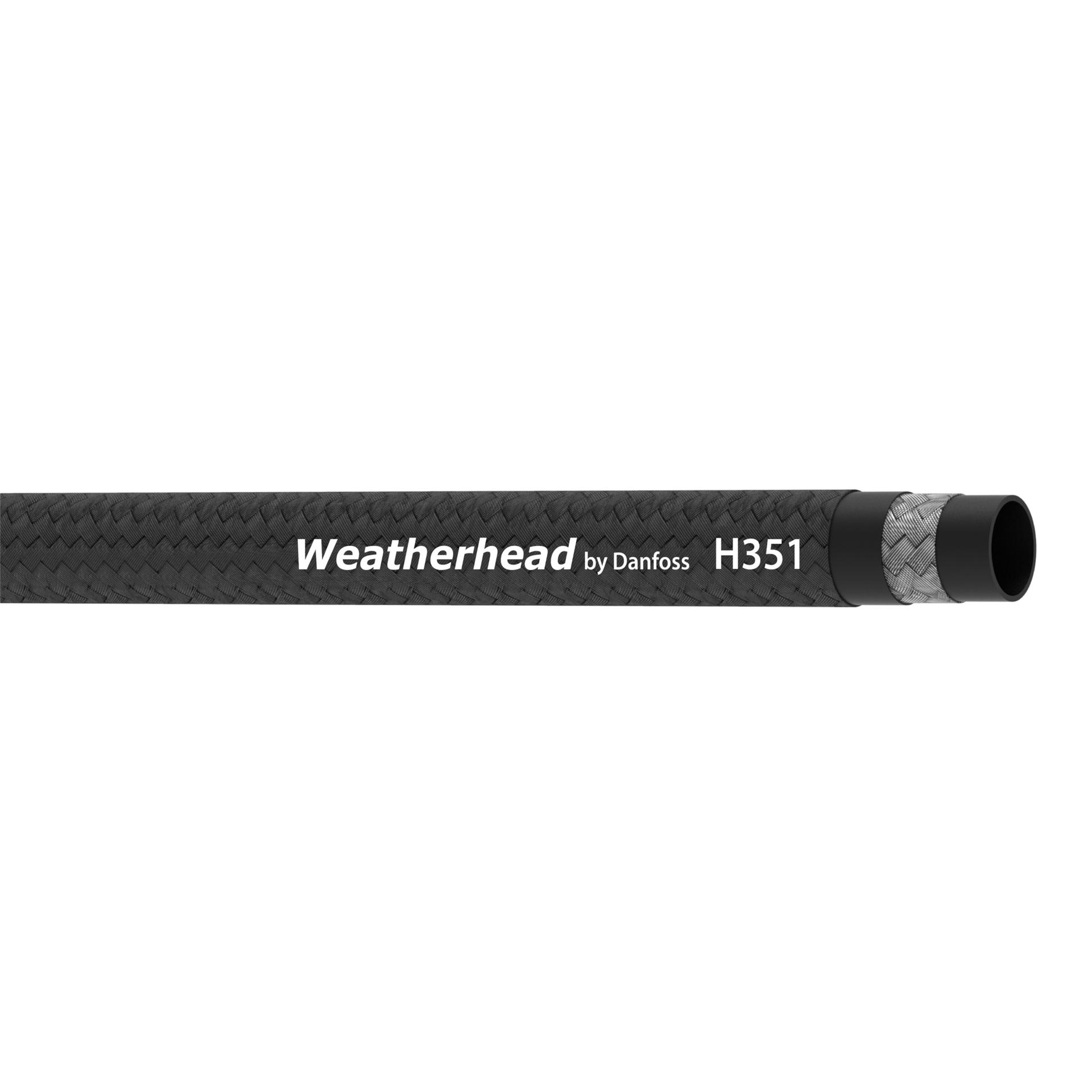

Weatherhead by Danfoss
H35108-250R
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
H35108-250R
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Premium | |
| Application | Transmission oil cooler lines. | |
| Bend radius - min | 1.75 in | |
| Brand | Weatherhead by Danfoss | |
| Burst pressure | 4325 Psi | |
| Color | Black | |
| Conductivity | Conductive | |
| Construction | 1 Ply Braid | |
| Cover material | Polyester | |
| Dash size | -8 | |
| Feature | Maximum durability under harsh operating conditionsRobust construction able to withstand highest pressuresSystem engineered to extend hose assembly life | |
| Inside diameter | .41 in | |
| Lay line style | Ink Transfer | |
| Outside diameter | .69 in | |
| Package form | Reel | |
| Product Height | .69 in | |
| Product Length/Depth | 250 ft | |
| Product Type | Rubber Hydraulic | |
| Product Volume | 1428.3 in³ | |
| Product Weight | 40 lb | |
| Product Width | .69 in | |
| Reinforcement material | Wire | |
| Sub-brand | None | |
| Trade Name | H351 Series | |
| Tube material | CPE | |
| Tube wall thickness | .185 in | |
| UPC | 639789320636 | |
| Working pressure | 625 Psi | |
| Working temperature - max | 302 °F | |
| Working temperature - min | -55 °F |
