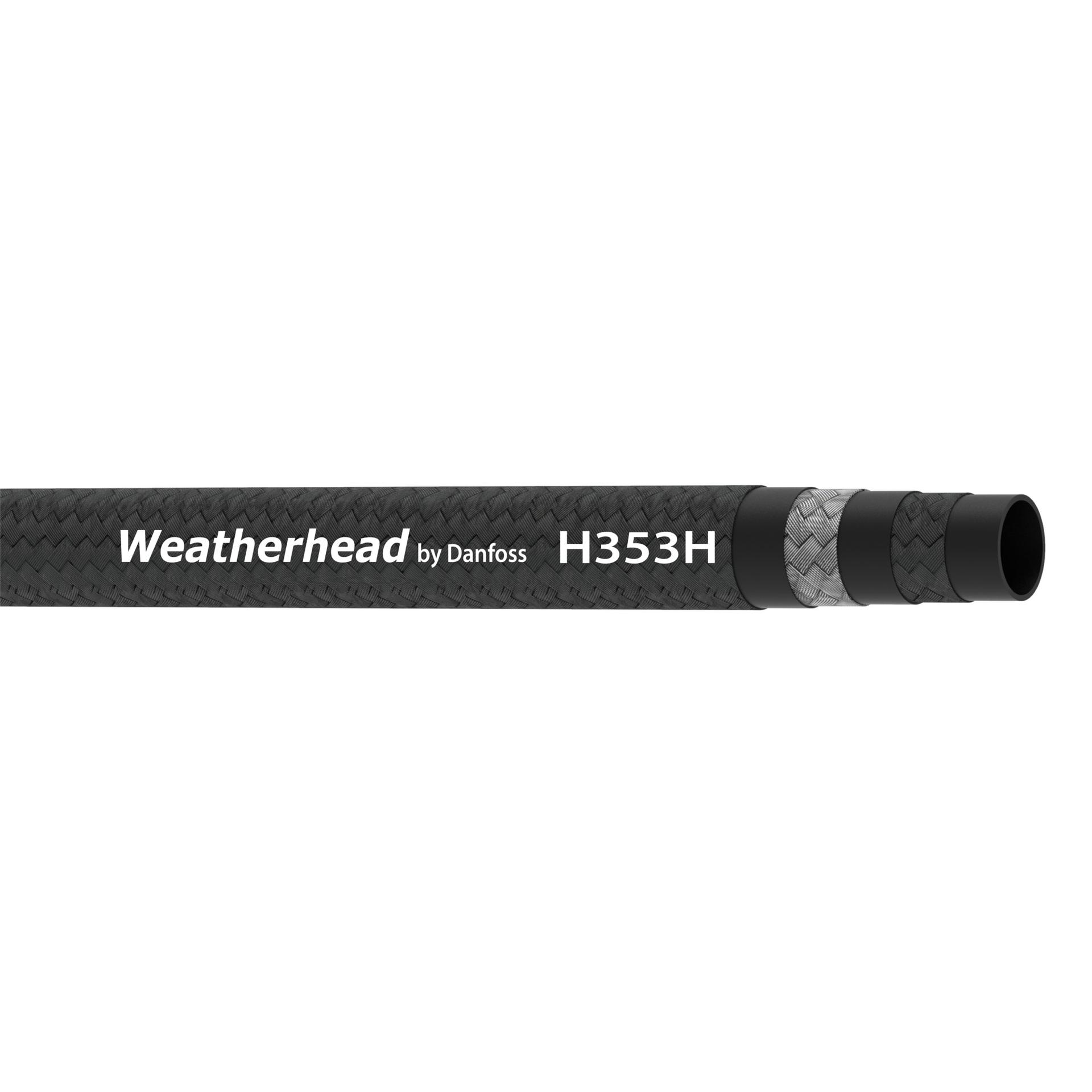

Weatherhead by Danfoss
H353H20-50
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
H353H20-50
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Premium | |
| Application | Air, gasoline, fuel, lubricating oils and coolants | |
| Bend radius - min | 4.5 in | |
| Brand | Weatherhead by Danfoss | |
| Burst pressure | 1200 Psi | |
| Certification(s) | SAE J1402 | |
| Color | Black | |
| Compliance(s) | DOT FMVSS 106 | |
| Conditional temperature range | Air not to exceed 250 F | |
| Conductivity | Conductive | |
| Cover material | Polyester | |
| Dash size | -20 | |
| Feature | Highly abrasion resistant coverSmall number of hoses for many fuel optionsProven reliability with high temperature resistance | |
| Inside diameter | 1.12 in | |
| Lay line style | Ink Jet | |
| Length configuration | 50, 100 | |
| Outside diameter | 1.53 in | |
| Product Height | 1.53 in | |
| Product Length/Depth | 50 ft | |
| Product Type | Engine and Fuel Hose and Tubing | |
| Product Volume | 1404.54 in³ | |
| Product Weight | 23 lb | |
| Product Width | 1.53 in | |
| Qualified hose fittings | 411, 4411, FJ3114, 069 E, 247 N Series | |
| Reinforcement material | Polyester and Wire | |
| Sub-brand | None | |
| Trade Name | H353H Series | |
| Tube material | Chlorinated Polyethylene | |
| Tube wall thickness | .41 in | |
| Vacuum rating | 15 iHg | |
| Working pressure | 300 Psi | |
| Working temperature - max | 302 °F | |
| Working temperature - min | -58 °F |
