Boston by Danfoss

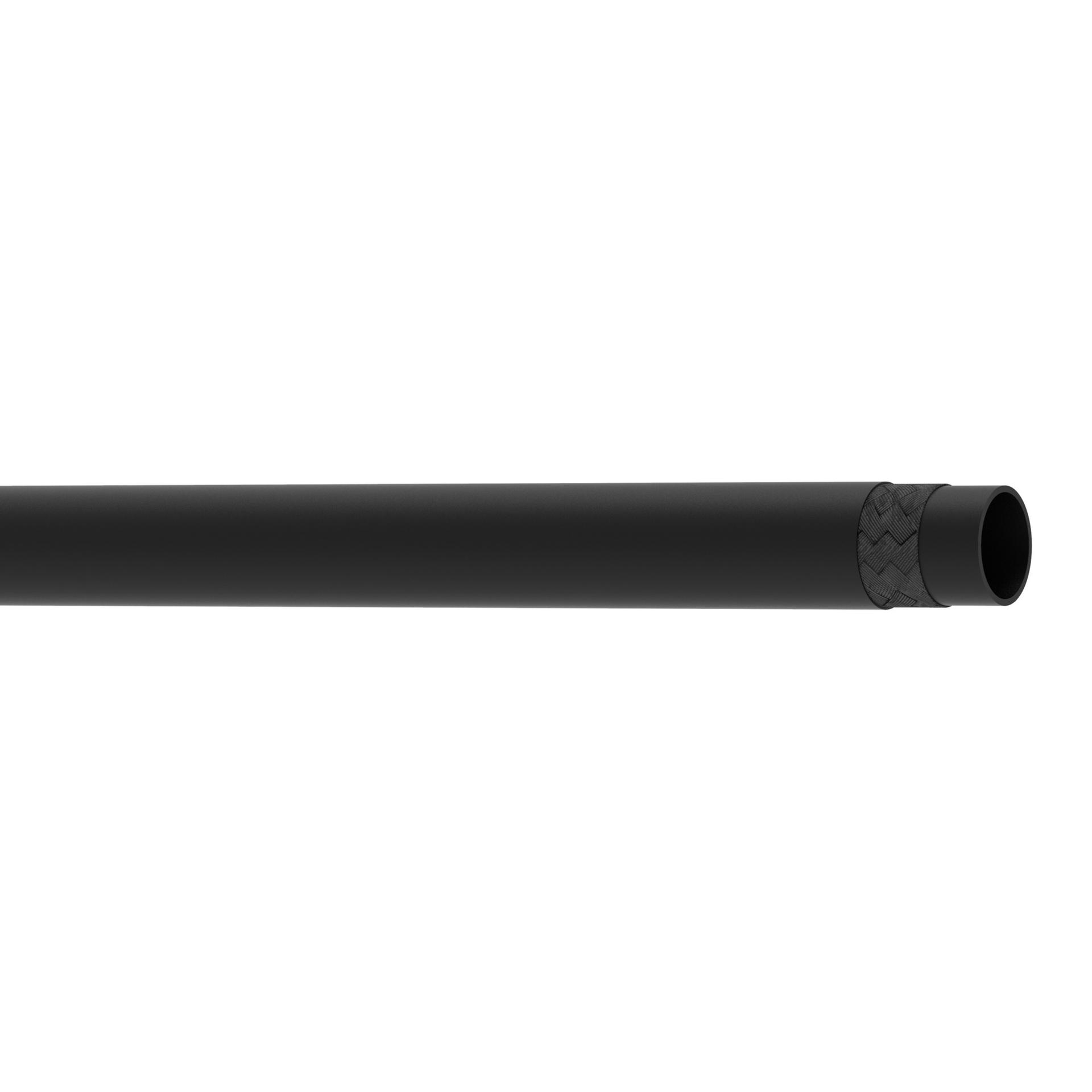

H873204BK-500
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
H873204BK-500
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | General purpose low pressure. | |
| Bend radius - min | 21 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 300 Psi | |
| Color | Black | |
| Construction | 1 Ply Braid | |
| Cover material | Vinyl Nitrile | |
| Dash size | -4 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | .25 in | |
| Lay line style | Embossed | |
| Outside diameter | .53 in | |
| Product Height | .53 in | |
| Product Length/Depth | 500 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 1685.4 in³ | |
| Product Weight | .1 lb | |
| Product Width | .53 in | |
| Reinforcement material | Fiber and Wire | |
| Sub-brand | None | |
| Trade Name | H8732 Series | |
| Tube material | Nitrile | |
| Tube wall thickness | .155 in | |
| Working pressure | 100 Psi | |
| Working temperature - max | 160 °F | |
| Working temperature - min | -30 °F |
