Boston by Danfoss
H965512GY-350
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

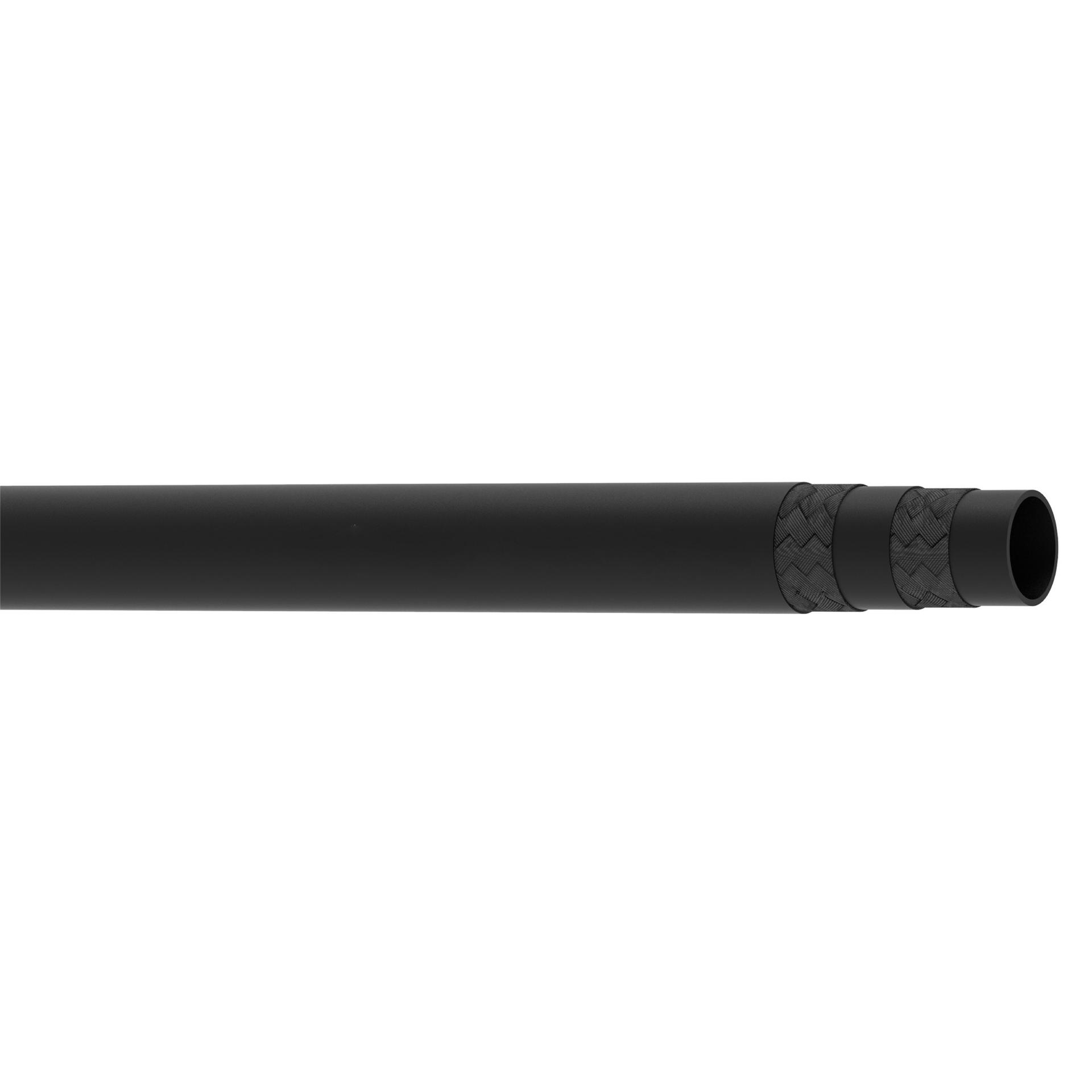

H965512GY-350
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Cleaning service hose. | |
| Bend radius - min | 9.5 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 1600 Psi | |
| Color | Gray | |
| Conductivity | Conductive | |
| Construction | 2-ply braid | |
| Cover material | Nitrile | |
| Dash size | -12 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | .75 in | |
| Lay line style | Ink Jet | |
| Outside diameter | 1.22 in | |
| Product Height | 1.22 in | |
| Product Length/Depth | 350 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 6251.28 in³ | |
| Product Weight | 136.5 lb | |
| Product Width | 1.22 in | |
| Reinforcement material | Polyester | |
| Sub-brand | None | |
| Trade Name | H9655 Series | |
| Tube material | Nitrile | |
| Tube wall thickness | .33 in | |
| Working pressure | 400 Psi | |
| Working temperature - max | 180 °F | |
| Working temperature - min | -40 °F |
