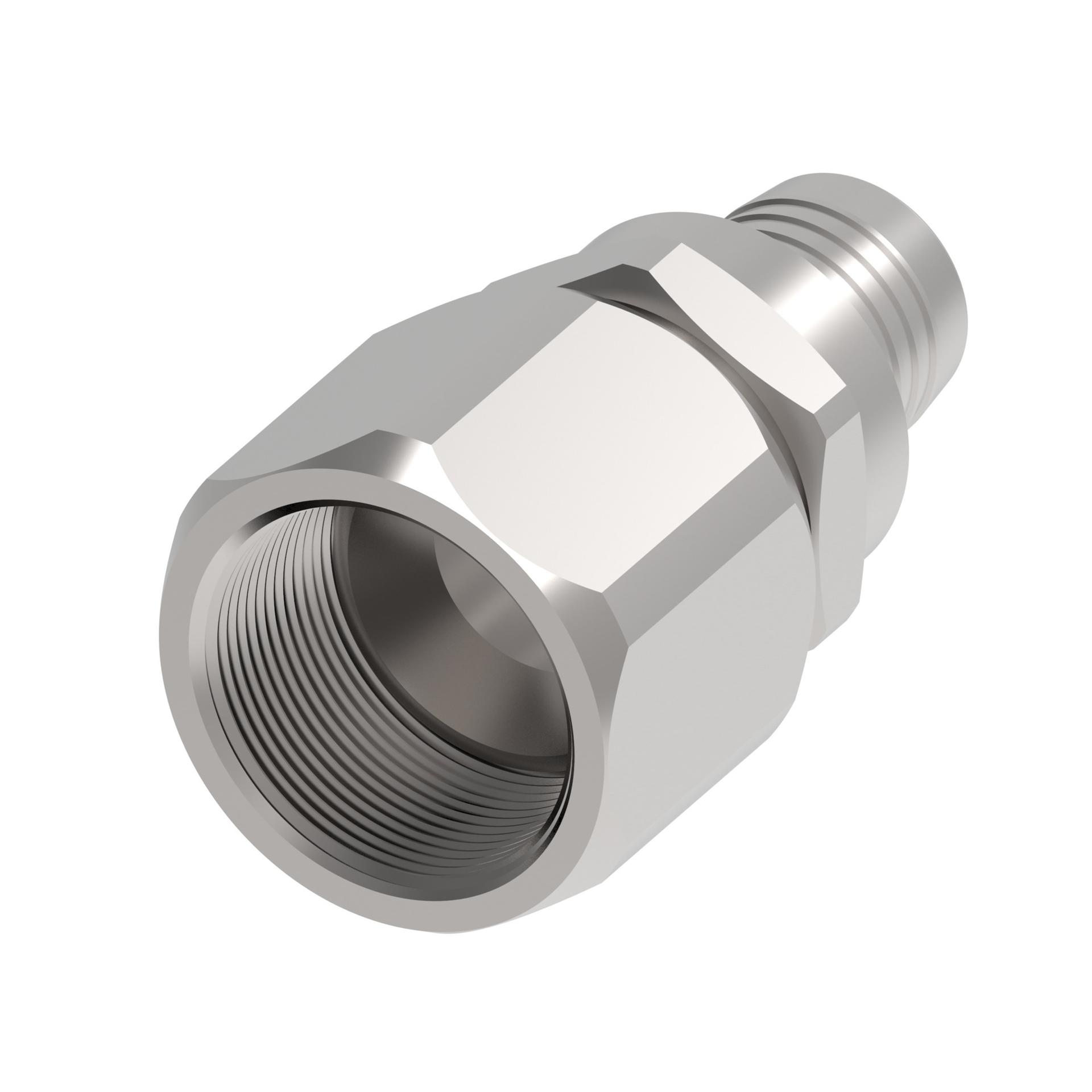

Danfoss Everflex
NJIC-12-316
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
NJIC-12-316
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Danfoss | |
| Compatible hose ID | .75 in | |
| Construction style | Swage | |
| End gender 1 | Female | |
| End Size 1 | 1 1/16 IN | |
| End type 1 | UNEF | |
| End type 2 | Line/Hose/Tube | |
| Feature | Optimized inventory to mix and match componentsDura-Kote plating for superior corrosion resistanceWide range of styles, configurations | |
| Hex Size 1 | 1.25 in | |
| Hex Size 2 | 1.06 in | |
| Hose dash size | -12 | |
| Inside diameter | .57 in | |
| Item type | Nipple Assembly | |
| Packaged Height | 4.88 in | |
| Packaged Length | 7.75 in | |
| Packaged Volume | 141.825 in³ | |
| Packaged Weight | .15 lb | |
| Packaged Width | 3.75 in | |
| Product Height | 1.44 in | |
| Product Length/Depth | 1.72 in | |
| Product material | Stainless Steel | |
| Product Type | Swage Hose Fittings | |
| Product Volume | 3.096 in³ | |
| Product Weight | .29 lb | |
| Product Width | 1.25 in | |
| Sub-brand | Everflex | |
| Thread sealant | No | |
| Thread Size 1 | 1 1/16-12 | |
| Trade Name | Everswage | |
| UPC | 678146040749 |
