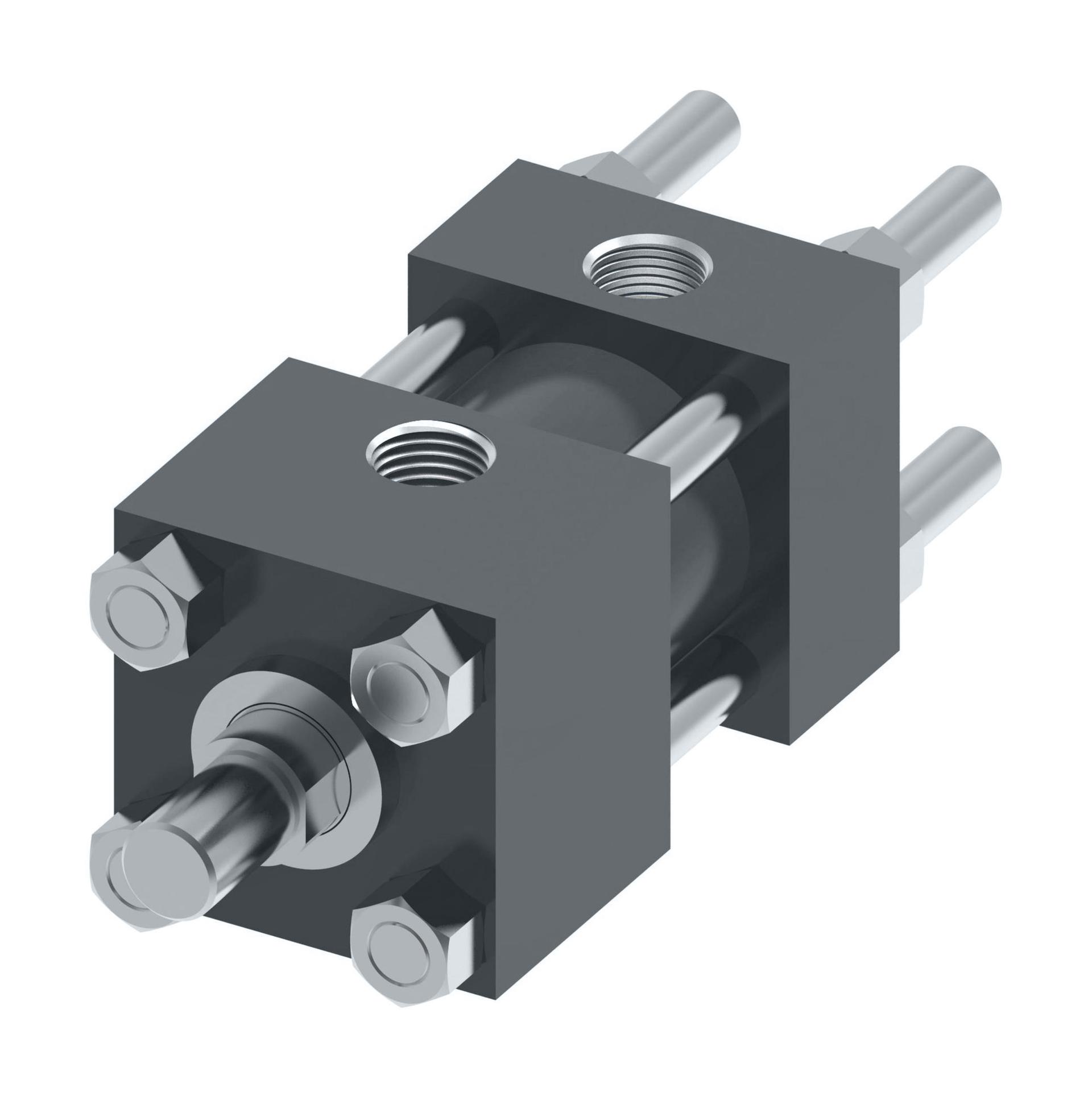

Danfoss Hydro-Line

SXH004ZU

N5N-5.00X3.00-N-2.00-2X-N-P-D-1-1
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Product specifications

Characteristic
Value
Adjustable StrokeYes
ApplicationHydraulic heavy duty application
Bore diameter5 in
BrandDanfoss
Chrome Plated BoreYes
Close Stroke TolerancesNo
Construction typeTie Rod
CushionsNon-cushioned
FeatureDurable and reliableInnovative safety featuresComprehensive size options
Model CodeN5N-5.00X3.00-N-2.00-2X-N-P-D-1-1
Mounting styleCap Extended Tie rod
Net Stroke Length3 in
Non-RotatingYes
Piston Seal MaterialNitrile
Piston Seal TypeNitrile lip-type
Port LocationHead 1-Cap 1
Port TypeNPTF
Product Height6.5 in
Product Length/Depth16.5 in
Product TypeTie-Rod
Product Volume697.125 in³
Product Weight97.6 lb
Product Width6.5 in
ReciprocatingYes
Rod 1 Diameter2 in
Rod CoatingChrome
Rod End Style 1Small Male UN thread
Rod MaterialCase Hardened
Rod Seal Material 1Teflon with Carboxilated Nitrile
Rod Seal Type 1PolyPak
Single or Double RodSingle
Sub-brandHydro-Line
Trade NameN5 Series
Working pressure - max3000 Psi
