Product specifications
Characteristic | Value |
|---|---|

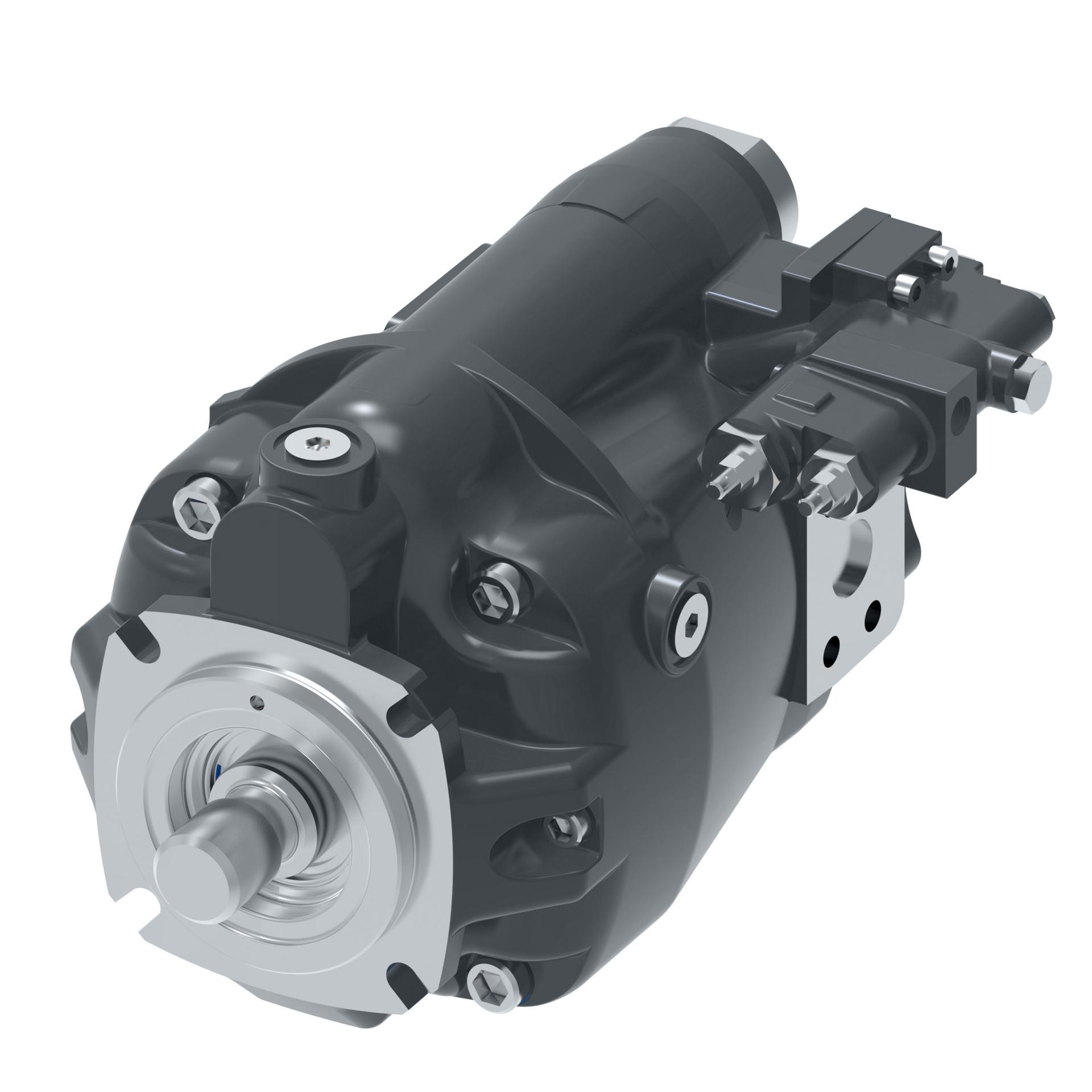

| PRODUCT | VAR DISP OCP PVM PUMP |
| DISPLACEMENT | 141.0 CM3/R[8.60 IN3/R]230 BAR |
| VALVE PLATE | MOBILE (2800 RPM MAX) |
| INPUT ROTATION | CCW (LH) SHAFT ROTATION |
| INPUT SHAFT | SAE J744-32-4 SAE C 14T SPL |
| MOUNTING FLANGE | SAE J744-127-4 C4B |
| MAIN PORT LOCATION | SIDE |
| PORT OPTIONS | SAE J518 FP SAE AP |
| PUMP SPECIAL FEATURES | AMDS (CONTAIN SSS) |
| CONTROL | PFC W/BDO |
| PRESSURE COMP SET | 227-234 BAR[3277-3393 LBF/IN2] |
| FLOW COMP UNLD VLV RPC SET | 19-21 BAR[275.5-304.5 LBF/IN2] |
| UNLD VLV TQ CONTROL SET | NONE |
| COMP SPECIAL FEATURES | NONE |
| AUXILIARY MOUNTING | SAE A 2B 9T SPL |
| Paint | BLACK [DEFAULT] |
| CUSTOMER IDENTIFICATION | None |
| DESIGN CODE | A |
| Brand | Vickers by Danfoss |
