Product specifications
Characteristic | Value |
|---|---|

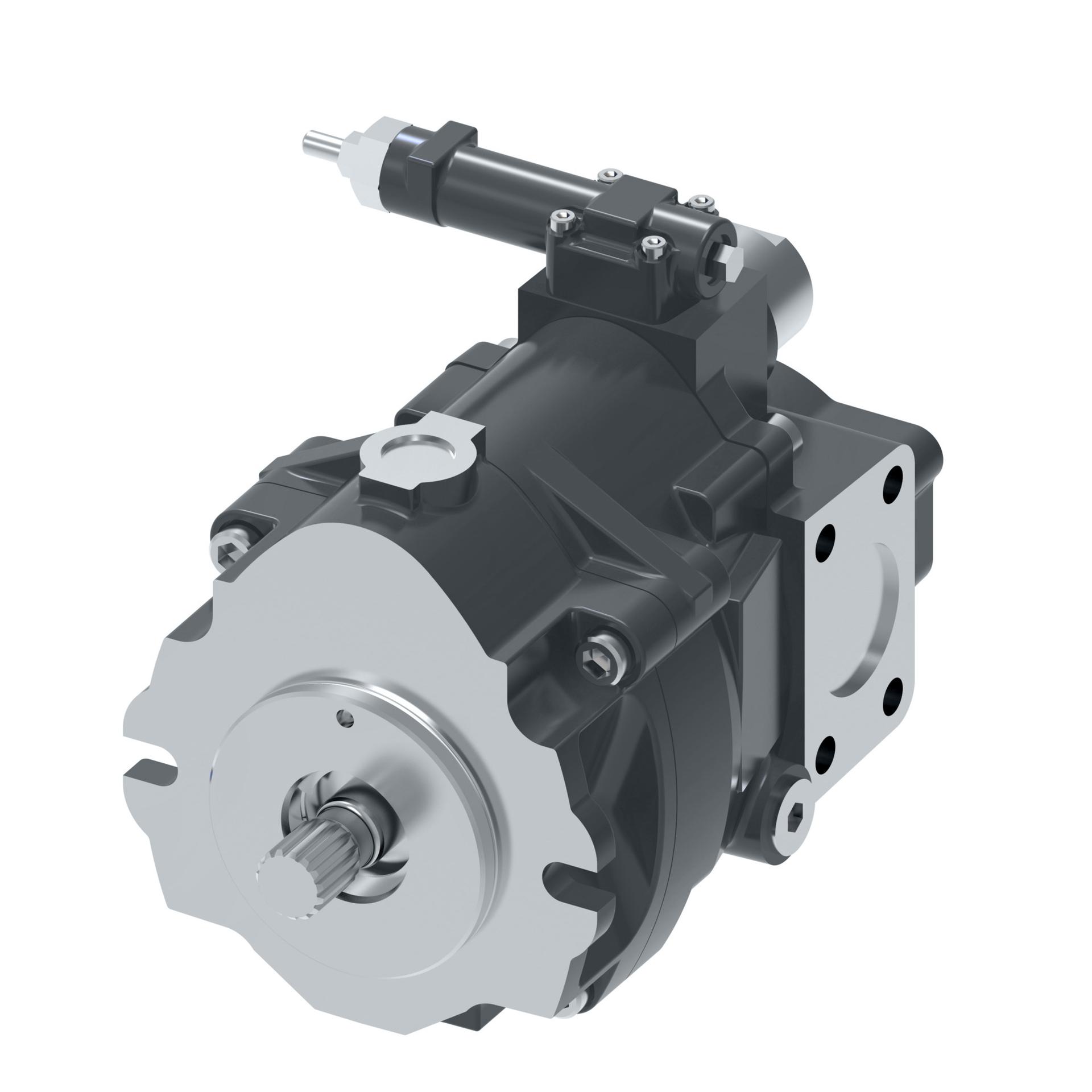

| PRODUCT | VAR DISP OCP PVM PUMP |
| DISPLACEMENT | 45.1 CM3/R[2.75 IN3/R] 280 BAR |
| VALVE PLATE | IND (1800 RPM MAX) |
| INPUT ROTATION | CW (RH) SHAFT ROTATION |
| INPUT SHAFT | SAE J744-22-4 SAE B 13T SPL |
| Mounting flange | SAE J744-101-2 B2B |
| MAIN PORT LOCATION | SIDE |
| PORT OPTIONS | SAE J518 FP SAE AP |
| PUMP SPECIAL FEATURES | AMDS (CONTAIN SSS) |
| CONTROL | PC |
| PRESSURE COMP SET | 276-284 BAR[4002-4118 LBF/IN2] |
| FLOW COMP UNLD VLV RPC SET | NONE |
| UNLD VLV TQ CONTROL SET | NONE |
| COMP SPECIAL FEATURES | NONE |
| AUXILIARY MOUNTING | AM CP |
| Paint | BLACK [DEFAULT] |
| Customer identification | None |
| DESIGN CODE | A |
| Brand | Vickers by Danfoss |
