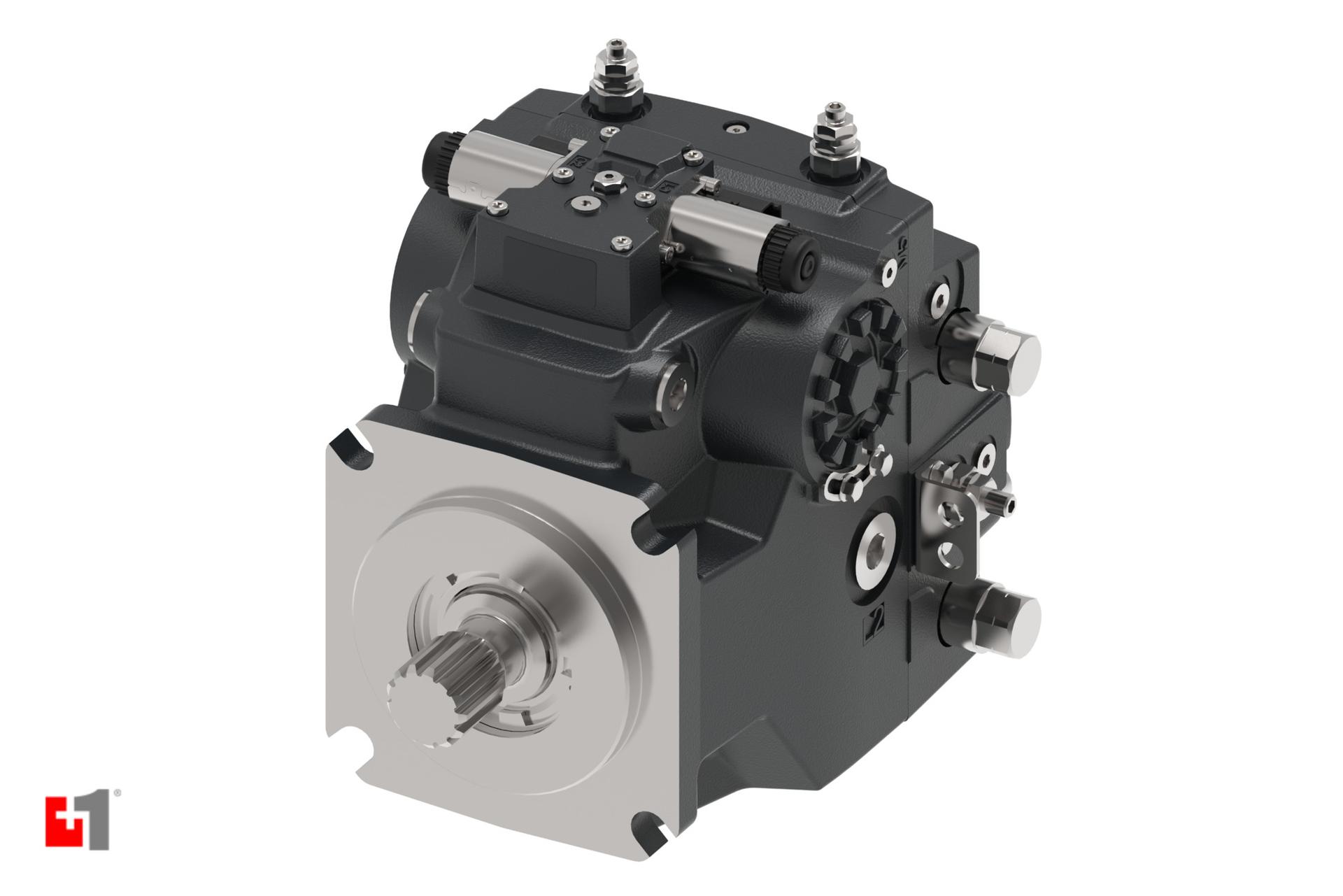

H1P axial piston pumps
Any H1 pump can be used with any Danfoss hydraulic motor to control and transfer hydraulic power. 15 different displacements from 45 cm3 to 280 cm3 [2.75 in3 to 17.10 in3] are available, and thanks to the H1's cradle swash-plate design, flow direction can be reversed by simply tilting the swash plate to the opposite side of its zero-displacement position.
Features and benefits
- Designed for quality and reliability
- Wide range of controls
- High total efficiency
- Compact, lightweight, and length optimized
- Standardized connector interface
- PLUS+1® compliant control and sensor options
- Integral filtration available with integrated filter bypass sensors and switch
Applications
- Skid steer loaders
- Trenchers
- Asphalt pavers
- Windrowers
- Aerial lifts
- Turf care equipment
- Vibratory rollers
Specifications
Model | Displacement cm3 [in3] | Max. working pressure bar [psi] * | Rated speed rpm | Theoretical flow l/min [US gal/min] | Mounting flanges |
045/053 | 45.0 to 53.8 [2.75 to 3.28] | 380 to 420 [5,511 to 6,092] | 3,400 | 153 to 183 [40 to 48] | SAE B |
060/068 | 60.4 to 68.0 [3.69 to 4.15] | 380 to 420 [5,511 to 6,092] | 3,500 | 210 to 238 [55.5 to 62.8] | SAE C |
069/078 | 69.2 to 78.1 [4.22 to 4.77] | 450 [6,527] | 3,500 | 243 to 273 [53.5 to 72] | SAE C |
089/100 | 89.2 to 101.7 [5.44 to 6.21] | 450 [6,527] | 3,300 | 294 to 335 [77.7 to 88.5] | SAE C |
115/130 | 115.2 to 130.0 [7.03 to 7.93] | 450 [6,527] | 3,200 | 371 to 419 [98 to 111] | SAE D |
147/165 | 147.2 to 165.1 [8.98 to 10.08] | 450 [6,527] | 3,000 | 441 to 495 [117 to 131 US] | SAE D |
210/250/280 | 211.5 to 280.2 [12.91 to 17] | 420 to 450 [6,092 to 6,527] | 2600 | 549 to 728 [145 to 192.3] | SAE E |
* Applied pressures above maximum working pressure requires Danfoss application approval.
See H1 Axial Piston Pumps Basic Information for additional information.
