DM430 series 4.3” displays
The optically-bonded and anti-glare coated screen is optimized for use in all lighting conditions. It provides outstanding sunlight viewability and wide viewing angles. In darker settings, the light sensor automatically adjusts screen brightness and switches between day and night display themes.
DM430E series displays features and benefits
- Rugged IP 66 and IP 67 ratings front and back
- 16:9 wide screen ratio at a 480 x 272 resolution
- Backlit buttons and up to six LED indicators
- Flexible solution for adding up to two CAN bus channels or six auxiliary function inputs
- PLUS+1® GUIDE programmable via a vector-based screen editor
- Optional USB device and RS232
DM430M series displays features and benefits
- Certified for marine use
- Rugged IP 66 and IP 67 ratings front and back
- 16:9 wide screen ratio at a 480 x 272 resolution
- Backlit buttons and up to six LED indicators
- Flexible solution for adding up to two CAN bus channels or six auxiliary function inputs
- PLUS+1® GUIDE programmable via a vector-based screen editor
- Optional USB device and RS232

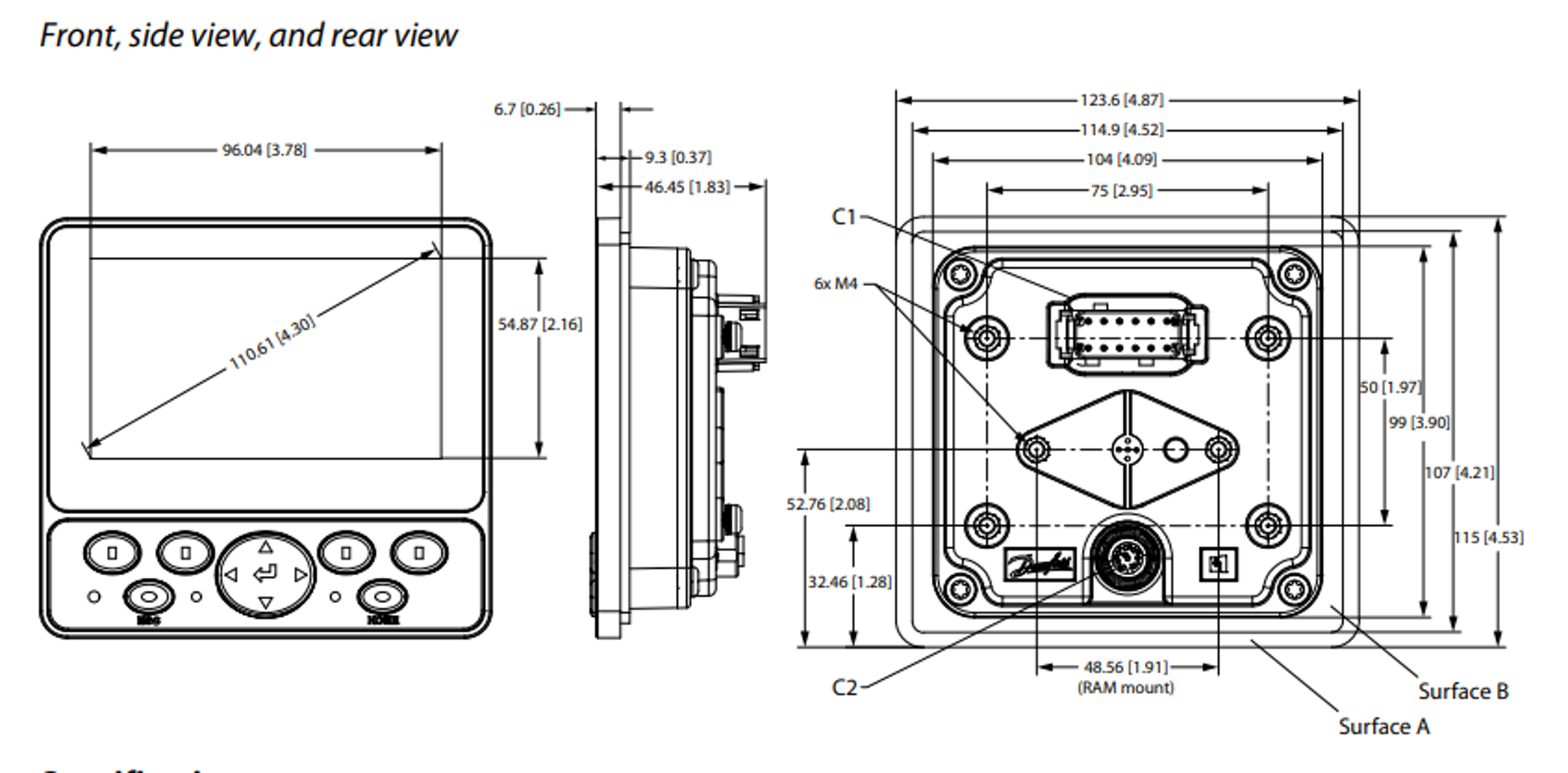

DM430E and DM430M dimensions in mm [in]
