Product specifications
Characteristic | Value |
|---|---|
| Brand | Winner by Danfoss |
| End Type 1 | Male ORB BSPP |
| End Type 2 | Male ORB ISO 11926-3 |
| End size 1 | -8 |
| End size 2 | -8 |
| Finish plating | Zinc |
| Hex size 1 IN | 1.063 |
| Hex size 1 MM | 27.000 |
| Hex size 3 MM | 27.0 |

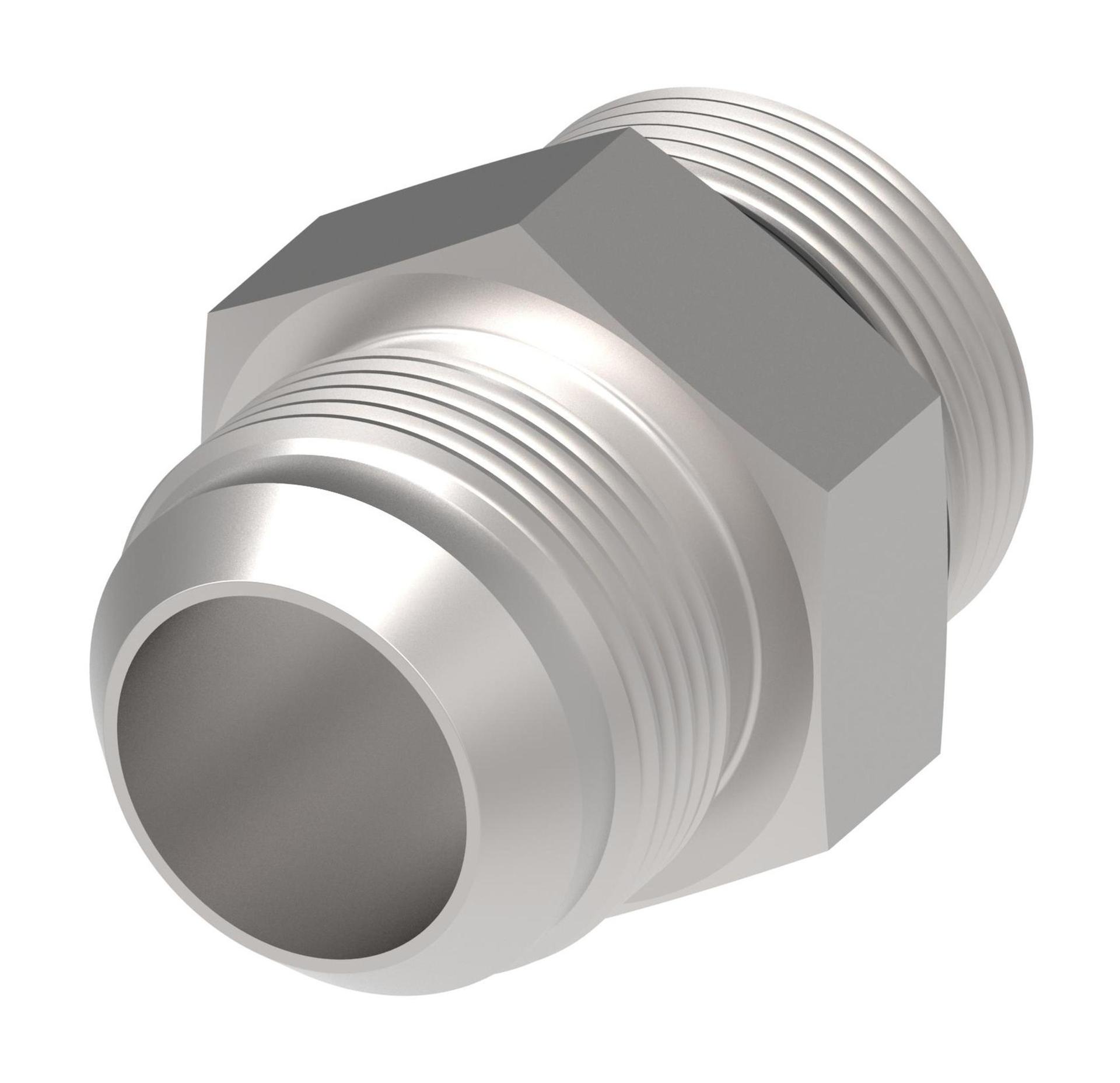

| Item type | Adapter-straight |
| Product material | Carbon steel |
| Product serial name | 1BO |
| Seal material | Nitrile (NBR) |
| Thread sealant | No |
| Thread size 1 | G 1/2 |
| Thread size 2 | 3/4-16 UNF |
| Working temp max C | 121 |
| Working temp max F | 250 |
| Working temp min C | -54 |
| Working temp min F | -65 |
