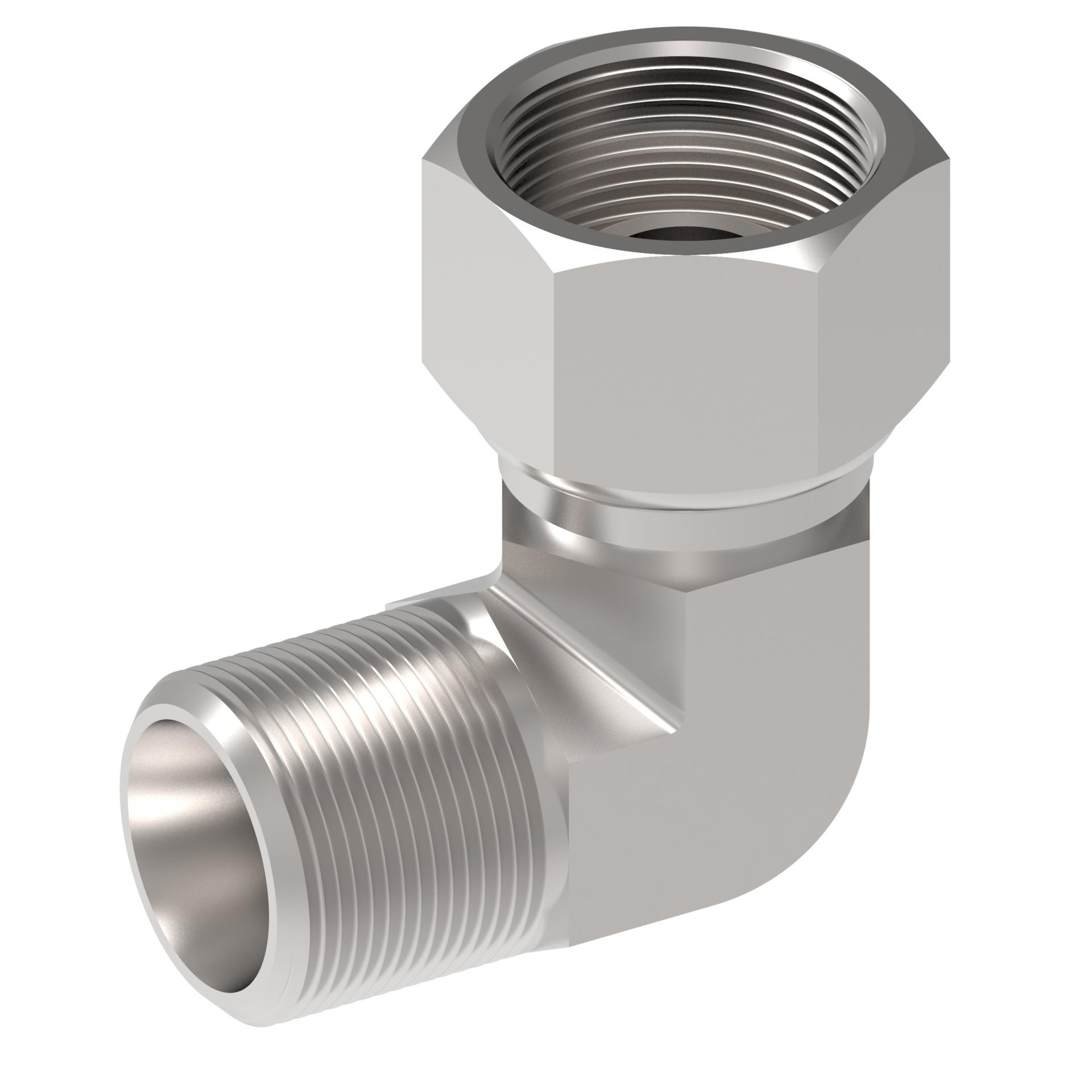

Elbow Adapters 2NU9-04Z (RIGHT)

Adaptr WHD 9405X6X12 90D 6F NPSM X12 MP

2047-6-12S


Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandDanfoss
Drop dimension IN1.260
Drop dimension MM32.0
End type 1Female pipe swivel (NPSM)
End type 2Male pipe (NPTF)
Finish platingDura-Kote
Hex size 1 IN0.880
Hex size 1 MM22.4
Hex size 2 IN1.060
Hex size 2 MM26.9
Product materialCarbon steel
Thread sealantNo
Tube outside diameter 1 IN0.380
Tube outside diameter 1 MM9.7
Tube outside diameter 2 IN0.750
Tube outside diameter 2 MM19.1
Working temp max C204
Working temp max F400
Working temp min C-54
Working temp min F-65

General specifications

Characteristic
Value
EAN/UPC678146172679
