Product specifications
Characteristic | Value |
|---|---|
| Angle shape | 45 Degree |
| Brand | Danfoss |
| Catalog Item | 206704-20-20S |
| Drop dimension IN | 0.849 |
| Drop dimension MM | 21.60 |
| End size 1 | -20 |
| End Type 1 | Female pipe swivel (NPSM) |
| End type 2 | Male ORB ISO 11926-3 |
| Finish plating | Zinc |
| Hex size 1 IN | 1.610 |
| Hex size 1 MM | 40.900 |
| Hex size 5 IN | 1.614 |
| Hex size 5 MM | 41.0 |

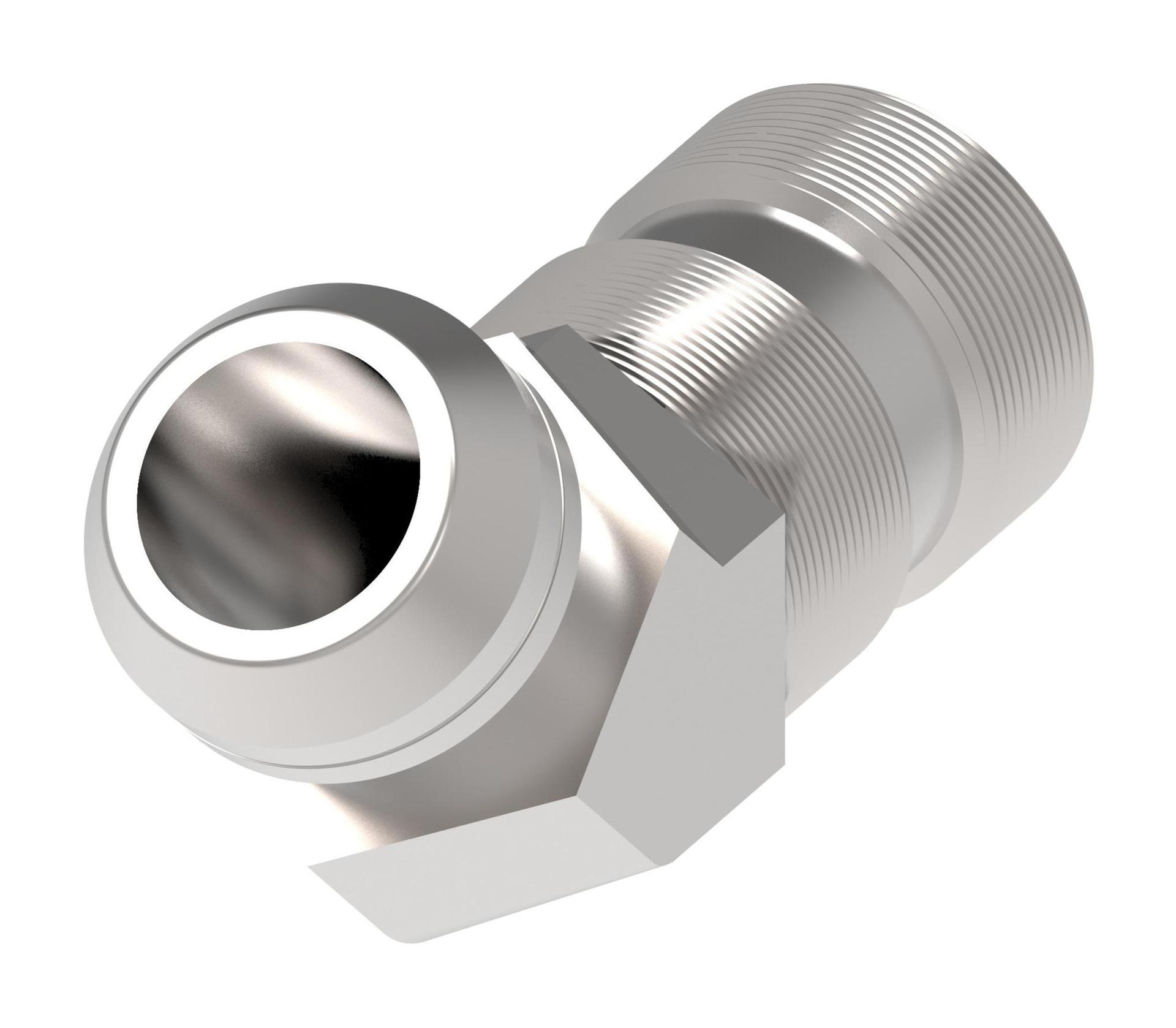

| Item type | Adapter-elbow |
| Product material | Carbon steel |
| Product serial name | 206704 |
| Thread sealant | No |
| Thread size 2 | 1 5/8-12 UN |
| Tube outside diameter 1 IN | 1.350 |
| Tube outside diameter 1 MM | 34.3 |
| Tube outside diameter 2 IN | 1.560 |
| Tube outside diameter 2 MM | 39.6 |
| Working temp max C | 204 |
| Working temp max F | 400 |
| Working temp min C | -54 |
| Working temp min F | -65 |
