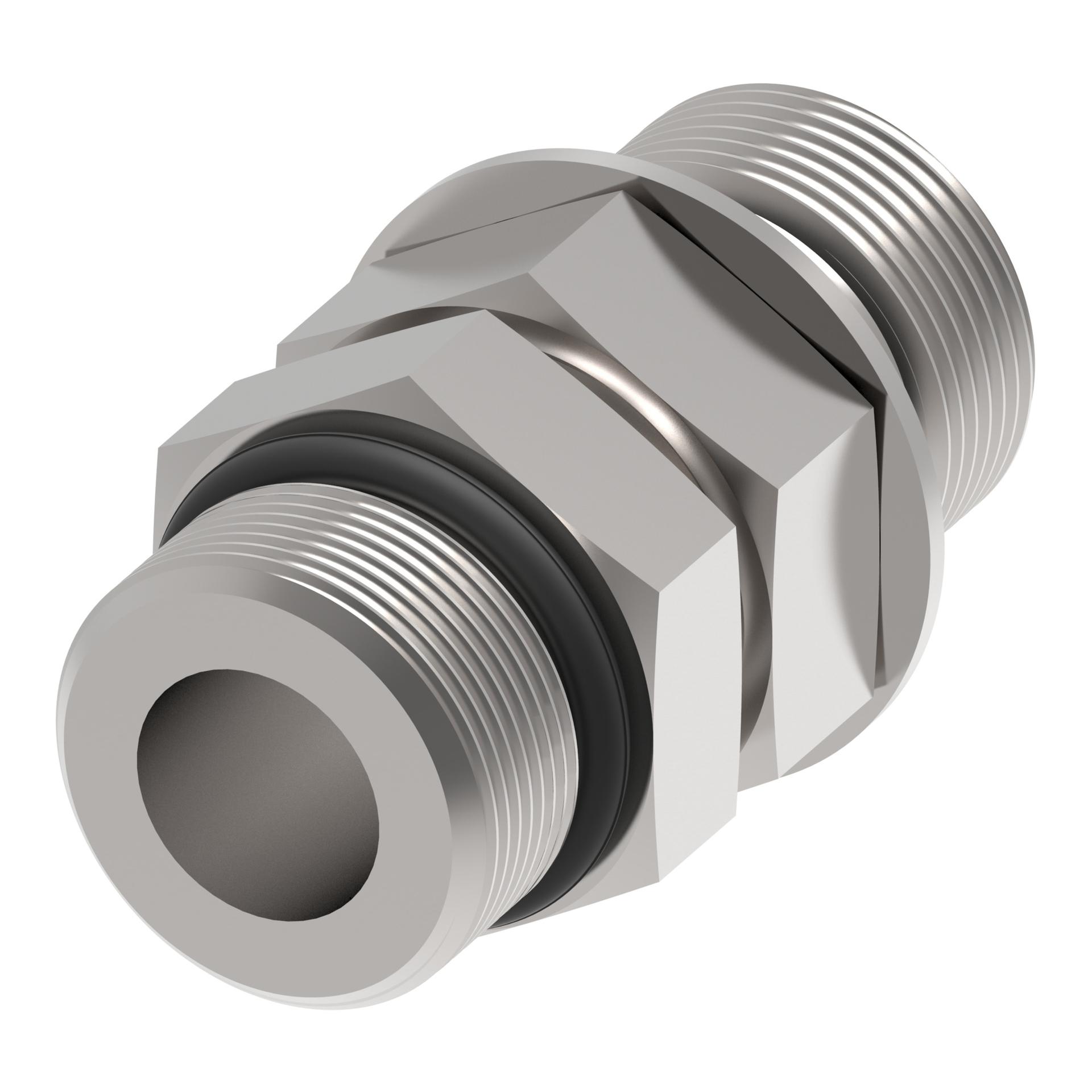

Union Adapters 2220-10-10 (RIGHT)

Adapter Steel Str 10 M ORB x 10 M ORB

2220-10-10S


Tools

Product specifications

Characteristic
Value
BrandAeroquip by Danfoss
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.4
Hex size 2 IN1.000
Hex size 2 MM25.4
Item typeAdapter-straight
Product materialCarbon steel
Thread sealantNo
Thread size 17/8-14 UNF
Thread size 27/8-14 UNF
Tube outside diameter 1 IN0.625
Tube outside diameter 1 MM15.9
Tube outside diameter 2 IN0.625
Tube outside diameter 2 MM15.9
Working temp max C121
Working temp max F250
Working temp min C-40
Working temp min F-40

General specifications

Characteristic
Value
EAN/UPC678146187970
