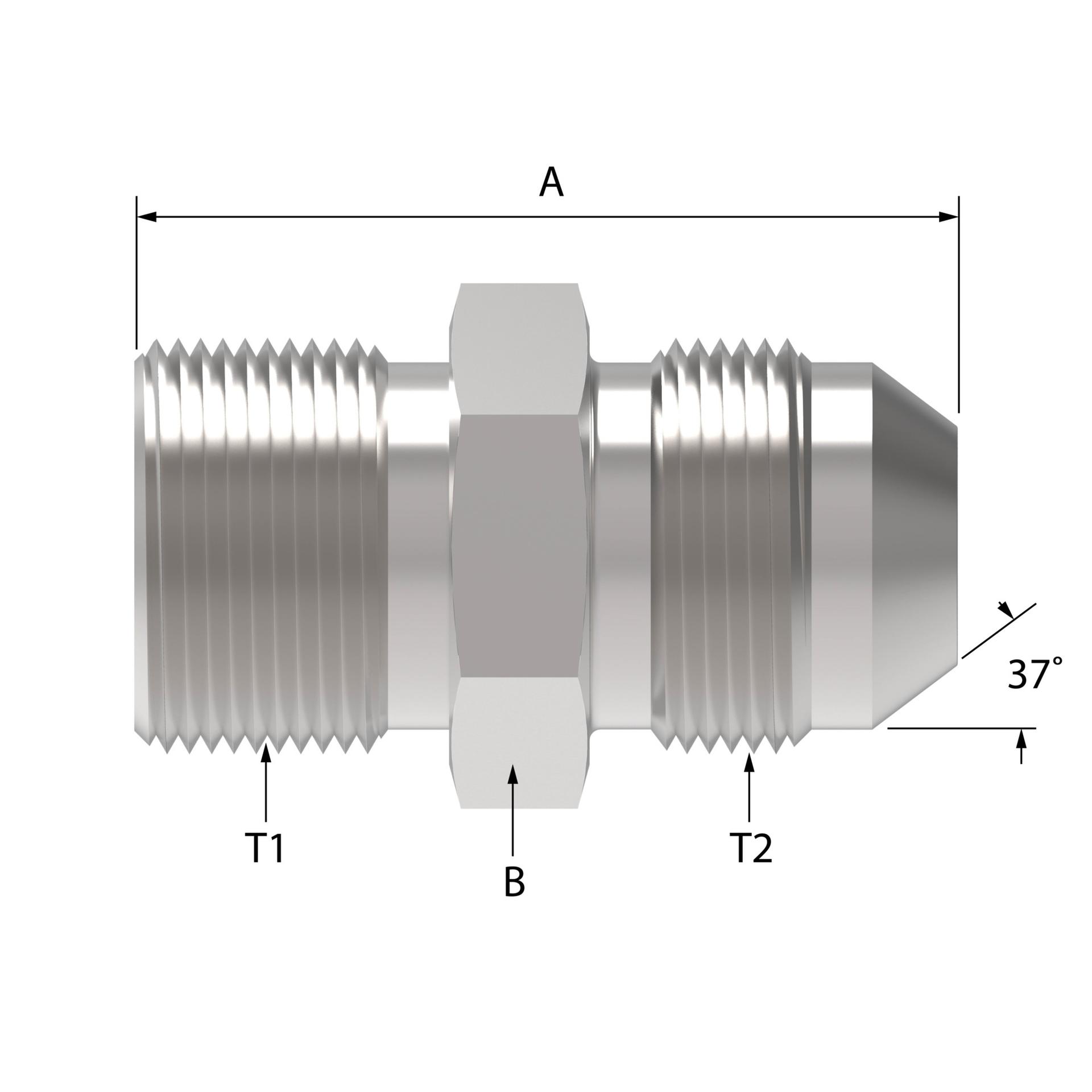

Danfoss FF1315 Series Straight Adapters Male SAE flareless/SAE 37° flare FF1315-0808S [CENTER]

ADAPTER-STR, FF1315, 04/04, CS

FF1315-0404S

Tools

Product specifications

Characteristic
Value
BrandDanfoss
Catalog ItemFF1315-0404S
End Type 1Male 37 degree
End Type 2Male 37 degree
Finish platingDura-Kote
Hex size 1 IN0.500
Hex size 1 MM12.700
Item typeAdapter-straight
Product materialCarbon steel
Thread sealantNo
Thread size 17/16-20 UNF
Thread size 27/16-20 UNF
Tube outside diameter 1 IN0.250
Tube outside diameter 1 MM6.4
Tube outside diameter 2 IN0.250
Tube outside diameter 2 MM6.4
Working temp max C121
Working temp max F250
Working temp min C-40
Working temp min F-40

General specifications

Characteristic
Value
EAN/UPC678146176127
