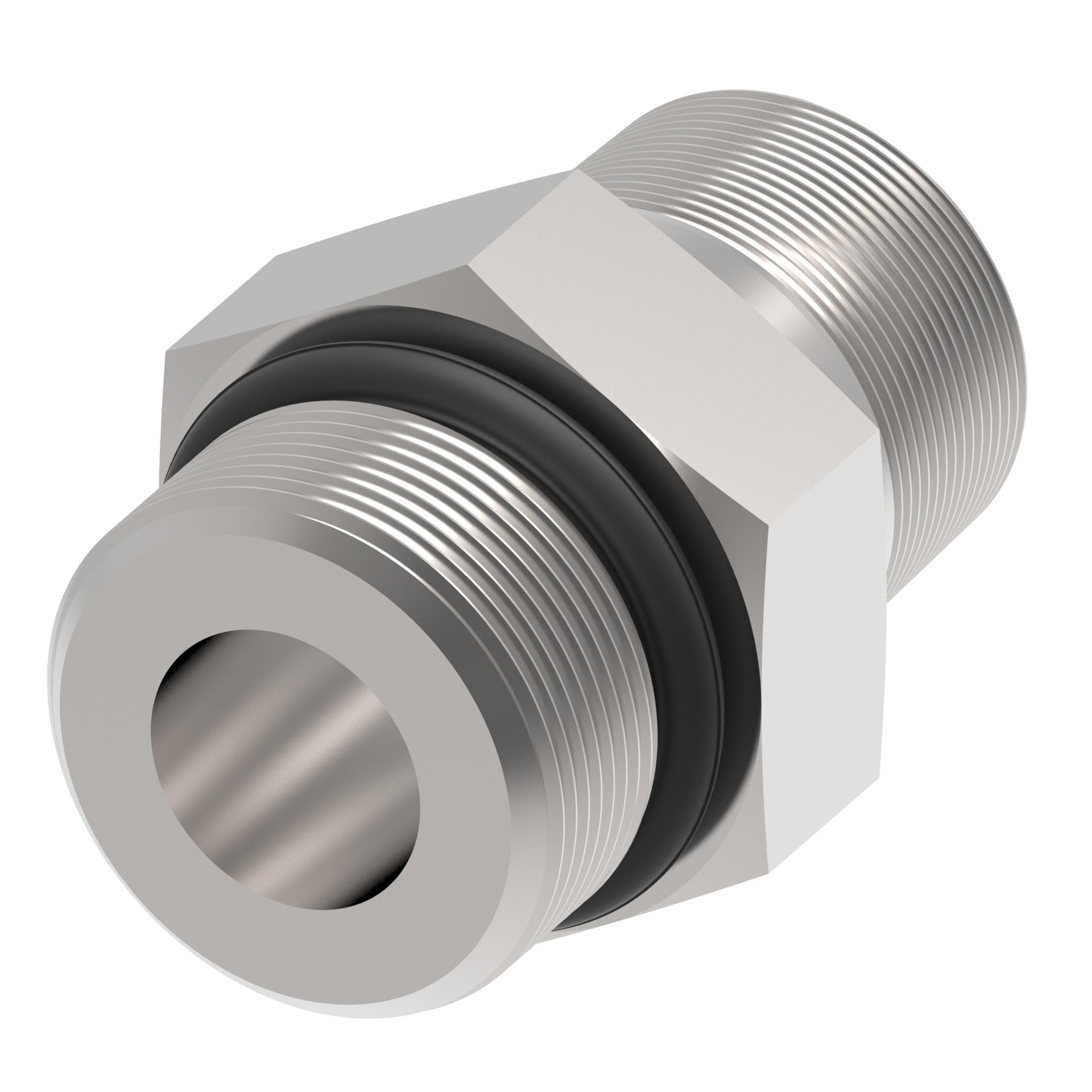

Straight Adapters FF1796-0806 (RIGHT)

Adapter ORB-NPTF Str 06 M ORB x 04 MP

FF1796-0604S


Tools

Product specifications

Characteristic
Value
BrandDanfoss
End type 1Male ORB ISO 11926-3
End type 2Male pipe (NPTF)
Finish platingZinc
Hex size 1 IN0.688
Hex size 1 MM17.500
Item typeAdapter-straight
Product materialCarbon steel
Thread sealantNo
Thread size 19/16-18 UNF
Tube outside diameter 1 IN0.375
Tube outside diameter 1 MM9.5
Tube outside diameter 2 IN0.250
Tube outside diameter 2 MM6.4
Working temp max C121
Working temp max F250
Working temp min C-40
Working temp min F-40

General specifications

Characteristic
Value
EAN/UPC678146189004
