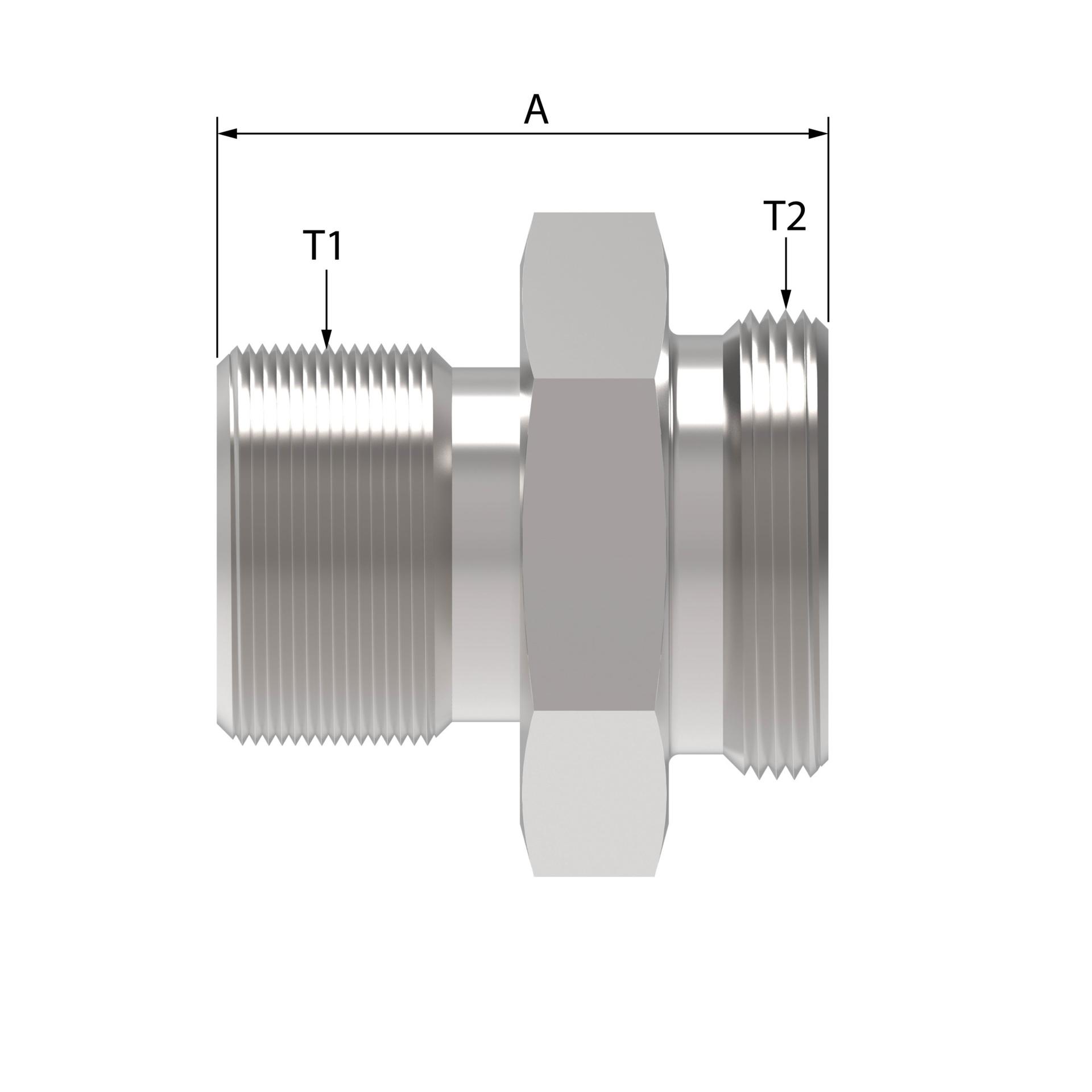

Aeroquip by Danfoss GA71322 Series Straight Adapters Male O-Ring Pilot to 5400 Male Coupling GA71322-8-8 [CENTER]

ADAPTER-STR, GA71322, 08/08, CS

GA71322-8-8

Tools

Product specifications

Characteristic
Value
Body sizeN/A
BrandAeroquip by Danfoss
Catalog ItemGA71322-8-8
End size 1-8
End size 2-8
End Type 1Male o'ring pilot rigid long
End Type 25400 MALE COUPLING
Finish platingDura-Kote
Finish platingDura-Kote
Hex size 3 MM27.000
Item typeAdapter-straight
Product materialCarbon steel
Product serial nameGA71322
Thread size 13/4-16 UNF
Thread size 27/8-20 UNEF
Working temperature max F250
Working temperature min F-40
