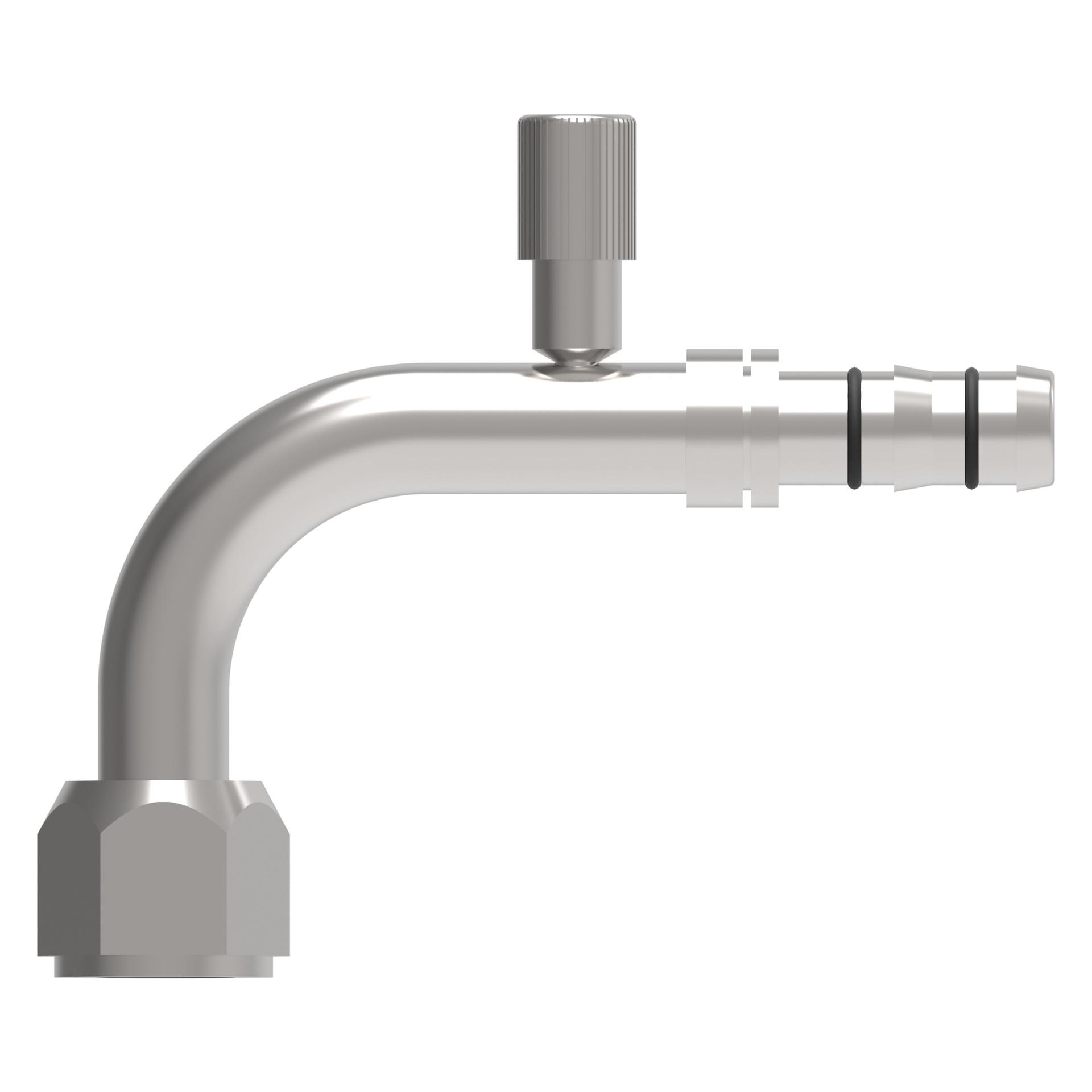

Hose Fittings FJ3012-03-1212S [RIGHT]

HOSE INSERT ASSY,HP/10,TBEOS-F/08,CS,90D

FJ3013-01-0810S

Tools

Product specifications

Characteristic
Value
A dimension IN4.530
A dimension MM115.062
Angle shape90 Degree
Compatible hose ID IN0.620
Construction StyleReusable
Drop dimension IN1.620
Drop dimension MM41.15
End size 1-8
End Type 1Tube-O female short pilot
Finish platingZinc plating
Hex size 1 IN0.866
Hex size 1 MM22.000
Hose cut off factor IN2.980
Hose cut off factor MM75.692
Inside diameter IN0.370
Inside diameter MM9.398
Product height in2.430
Product height mm61.722
Product length in4.970
Product length mm126.238
Product materialCarbon steel
Product width in0.880
Product width mm22.352
Seal materialHydrogenated Nitrile (HNBR)
Thread size 13/4-16 UNF

General specifications

Characteristic
Value
EAN/UPC815628029995
