Hose Fittings FJ3066-101212S [RIGHT]

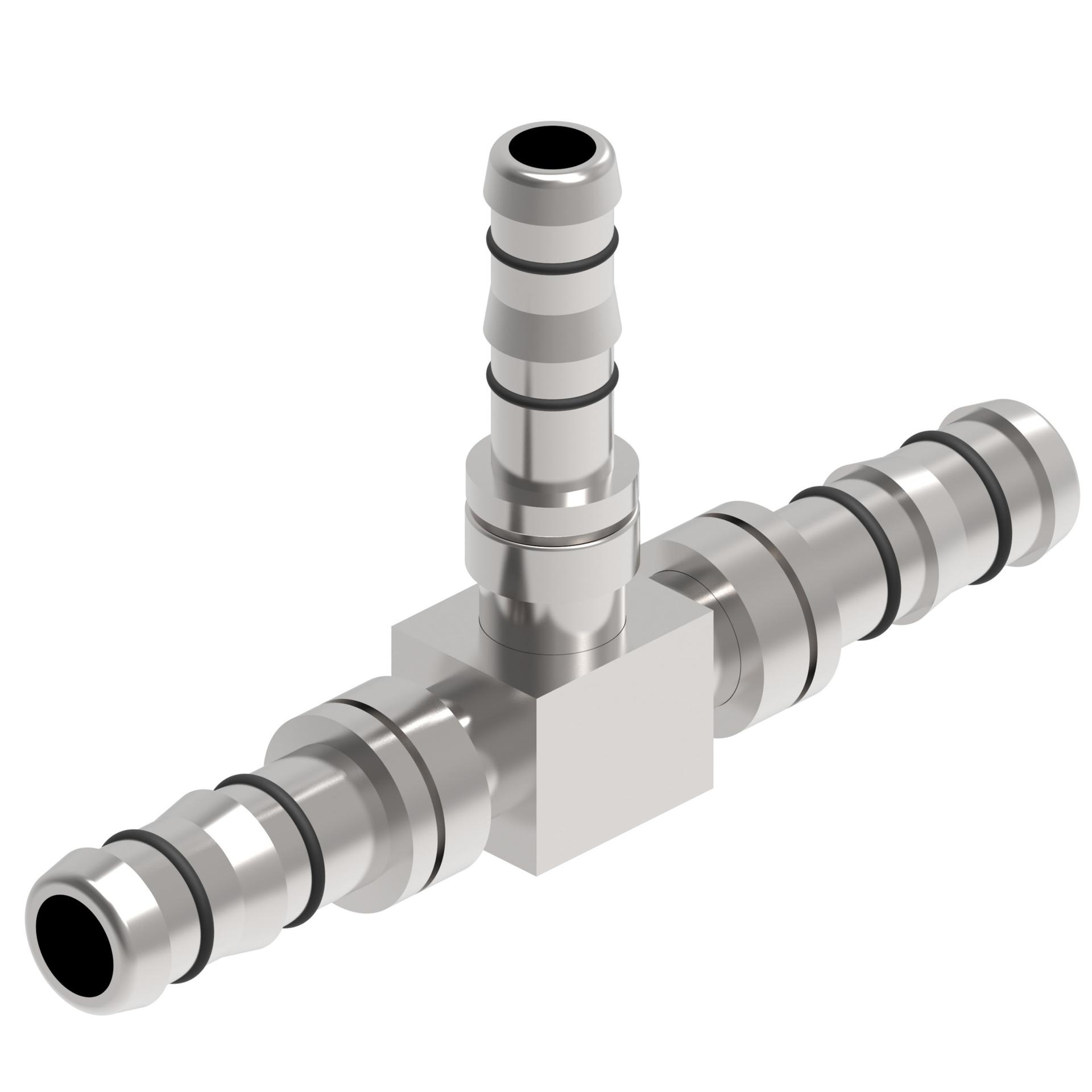

Ftng, E-Z CLIP SPLICER TEE

FJ3066-1010S


Tools

Product specifications

Characteristic
Value
A dimension IN5.620
A dimension MM142.800
Angle shapeStraight
Compatible hose ID IN0.620
Construction StyleReusable
End size 1-10
Finish platingZinc plating
Hose cut off factor IN1.260
Hose cut off factor MM32.000
Inside diameter IN0.370
Inside diameter MM9.500
Product height in3.080
Product height mm78.232
Product length in5.620
Product length mm142.748
Product materialCarbon steel
Product width in3.080
Product width mm78.232 mm
Seal materialHydrogenated Nitrile (HNBR)
Thread sealantNo
Working temperature max C125
Working temperature max F257
Working temperature min F-40

General specifications

Characteristic
Value
EAN/UPC639789298843
