Hose Fittings FJ3225-1008S [RIGHT]

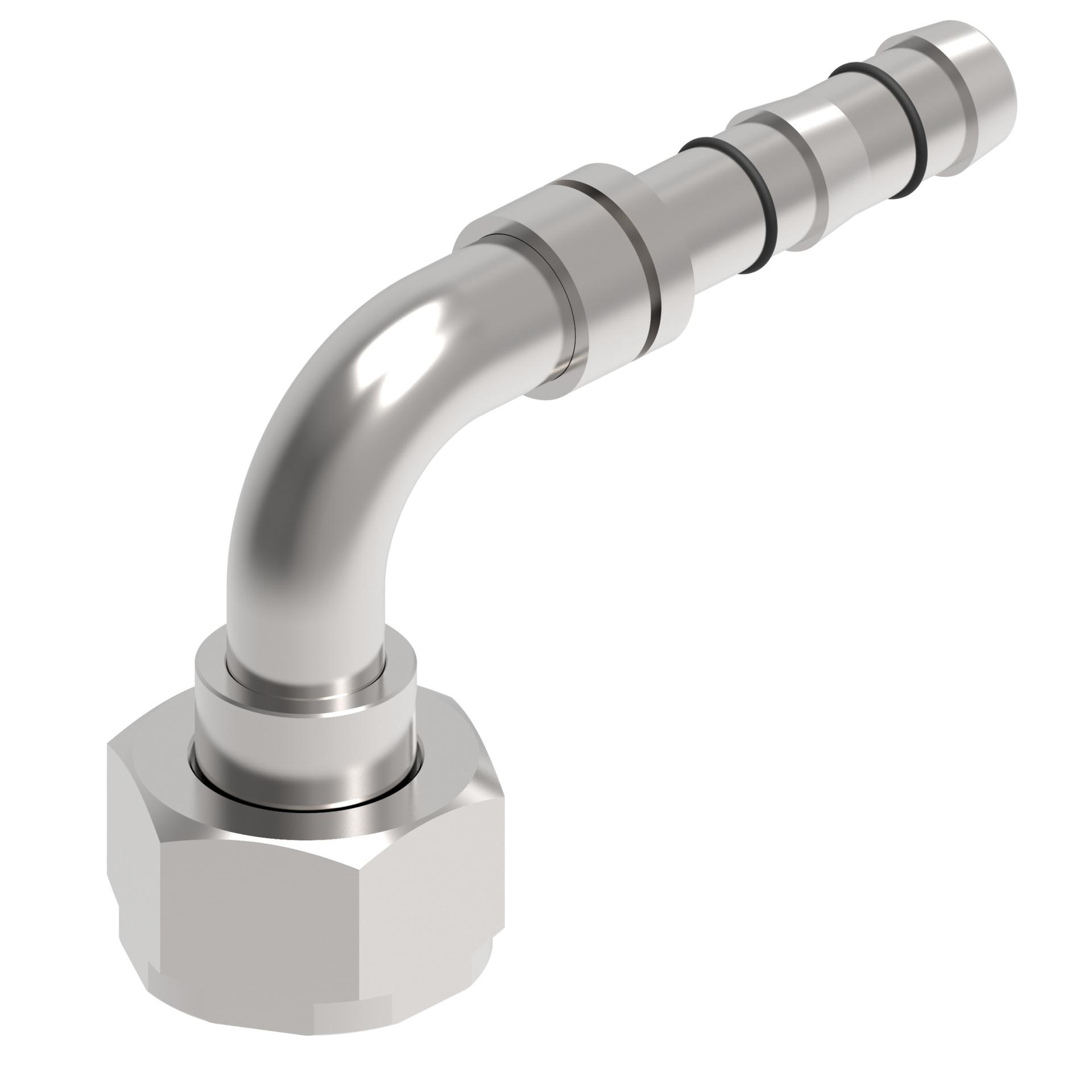

HOSE FTG, MR/10,ROTK-FS/10,CS,90D

FJ3225-1010S

Tools

Product specifications

Characteristic
Value
A dimension IN2.980
A dimension MM75.800
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN0.630
Compatible hose ID MM16.002
Compatible hosesGH134
Construction StyleCrimp
Drop dimension IN2.000
Drop dimension MM39.00
End connection hex size IN1.130
End connection hex size MM28.700
End size 1-16
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN1.130
Hex size 1 MM28.700
Hose cut off factor IN1.430
Hose cut off factor MM36.400
Hose size-10
Inside diameter IN0.370
Inside diameter MM9.398
Product materialCarbon steel
Seal materialHydrogenated Nitrile (HNBR)
Thread size 11-14 UNS

General specifications

Characteristic
Value
EAN/UPC678146014795
