Hose Fittings FJ4905-05-1010S [LEFT]

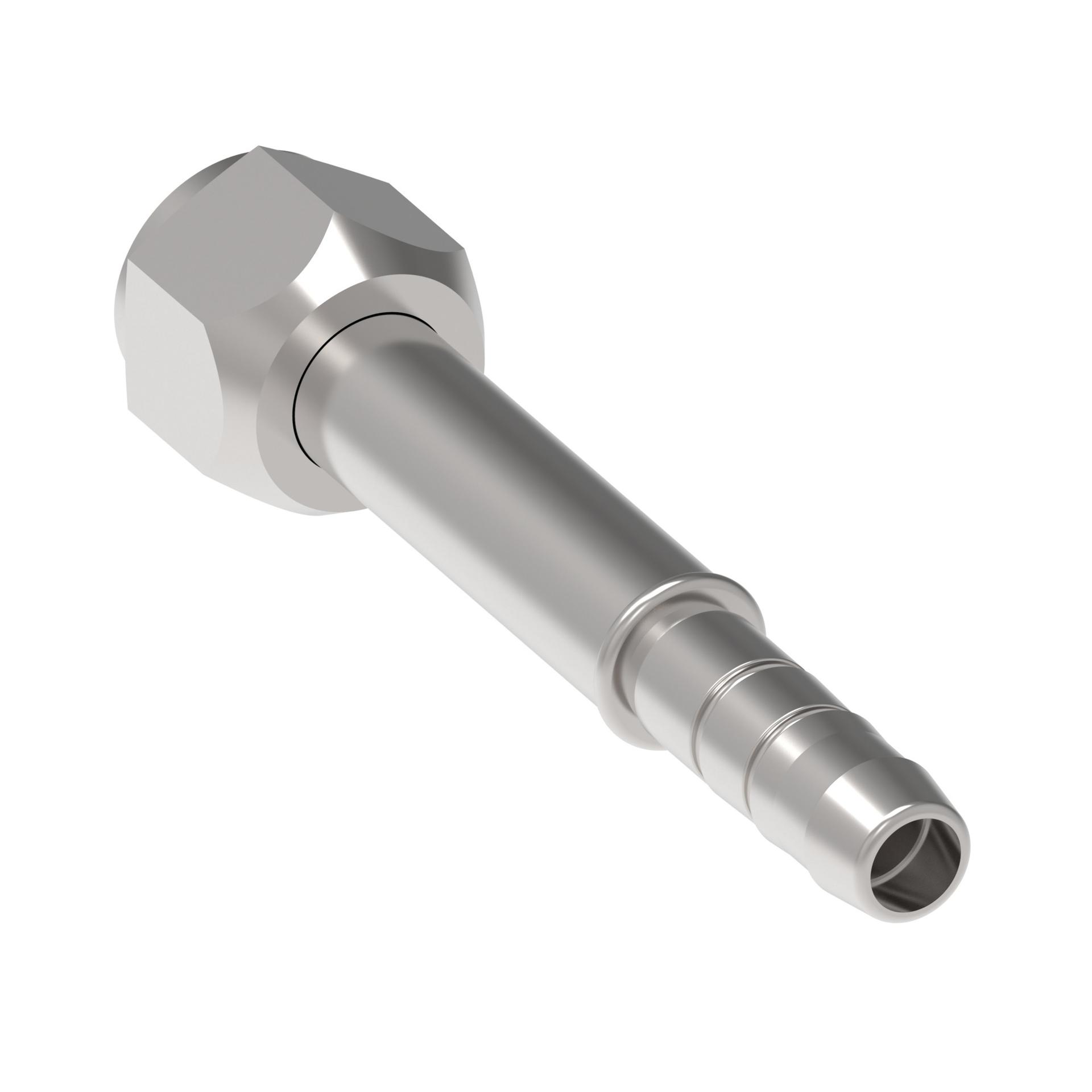

HOSE NIP ASSY, MR/12,TBEOS-F/10,CS,STR

FJ4906-01-1012S

Catalog item:

FJ4906-01-1012S

Tools

Product specifications

Characteristic
Value
A dimension IN4.660
A dimension MM118.400
Angle shapeStraight
Backup hex size IN1.063
Backup hex size MM26.988
BrandDanfoss
Catalog ItemFJ4906-01-1012S
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesGH134
Construction StyleCrimp
End connection hex size IN1.060
End connection hex size MM26.924
End size 1-10
End Type 1Female ORFS swivel
Finish platingDura-Kote
Hose cut off factor IN2.900
Hose cut off factor MM73.660
Hose size-12
Inside diameter IN0.4800
Inside diameter MM12.3000
Product height in1.062
Product height mm26.975
Product length in4.660
Product length mm118.364
Product materialCarbon steel
Product width in1.062
Product width mm26.975
Thread size 17/8-14 UNF
