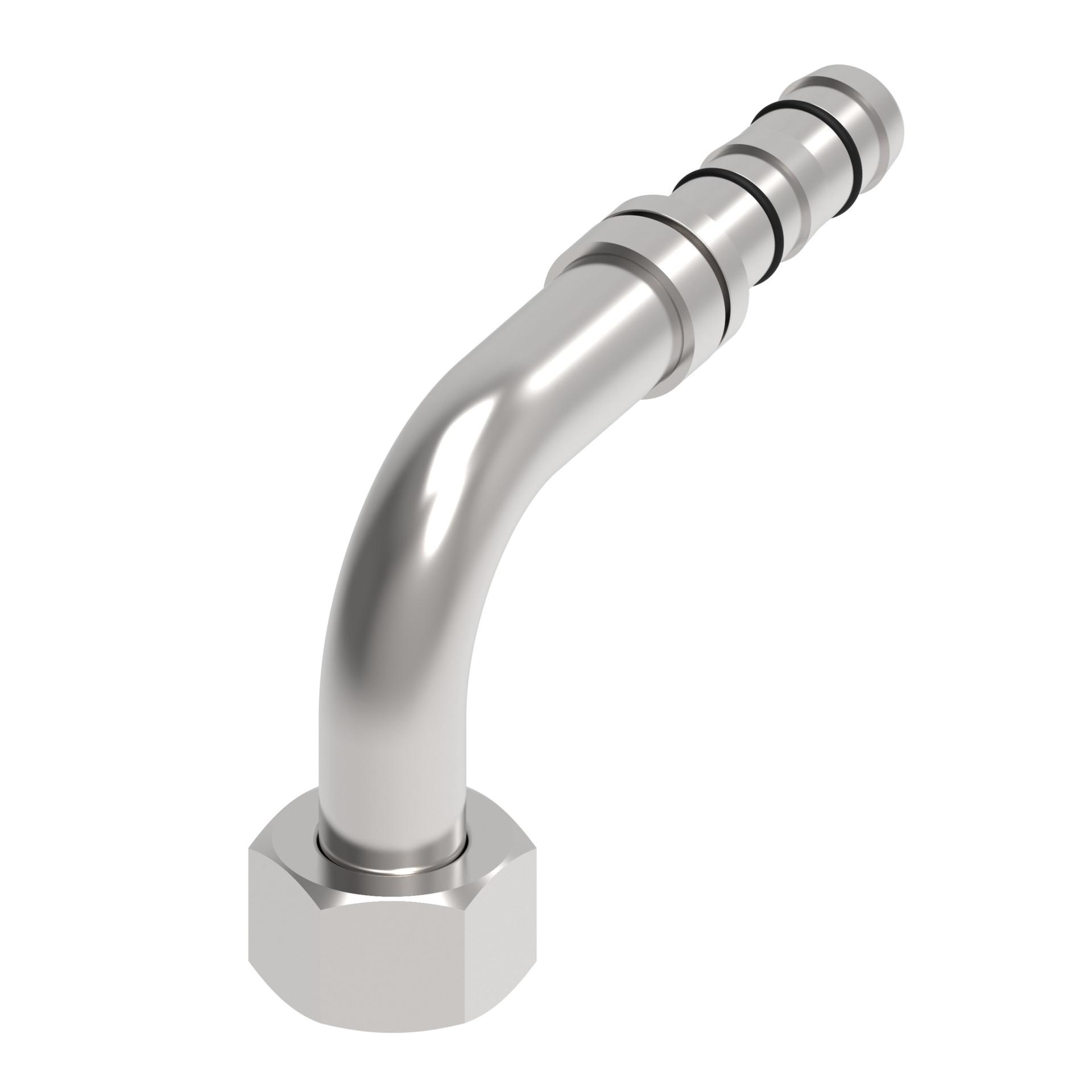

Hose FittingsGA23855-10-10 (RIGHT)

FTGS, RR/10, TBEOL-F/10, -S, 90D, 28

GA23855-10-10


Tools

Product specifications

Characteristic
Value
A dimension IN3.976
A dimension MM101.000
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.875
Compatible hosesGH134
Construction StyleReusable
Drop dimension IN1.850
Drop dimension MM47.00
End size 1-10
End type 1Tube-O female long pilot
Finish platingDura-Kote
Hex size 1 IN1.063
Hex size 1 MM27.000
Hose cut off factor IN2.401
Hose cut off factor MM61.000
Hose size-10
Inside diameter IN0.370
Inside diameter MM9.500
Product height in2.618
Product height mm66.500
Product length in4.508
Product length mm114.501
Product materialCarbon steel
Product width in1.063
Product width mm27.000 mm
Seal materialHydrogenated Nitrile (HNBR)
Thread sealantNo
Thread size 17/8-14 UNF
Working temperature max C125
Working temperature max F257
Working temperature min C-40
Working temperature min F-40
