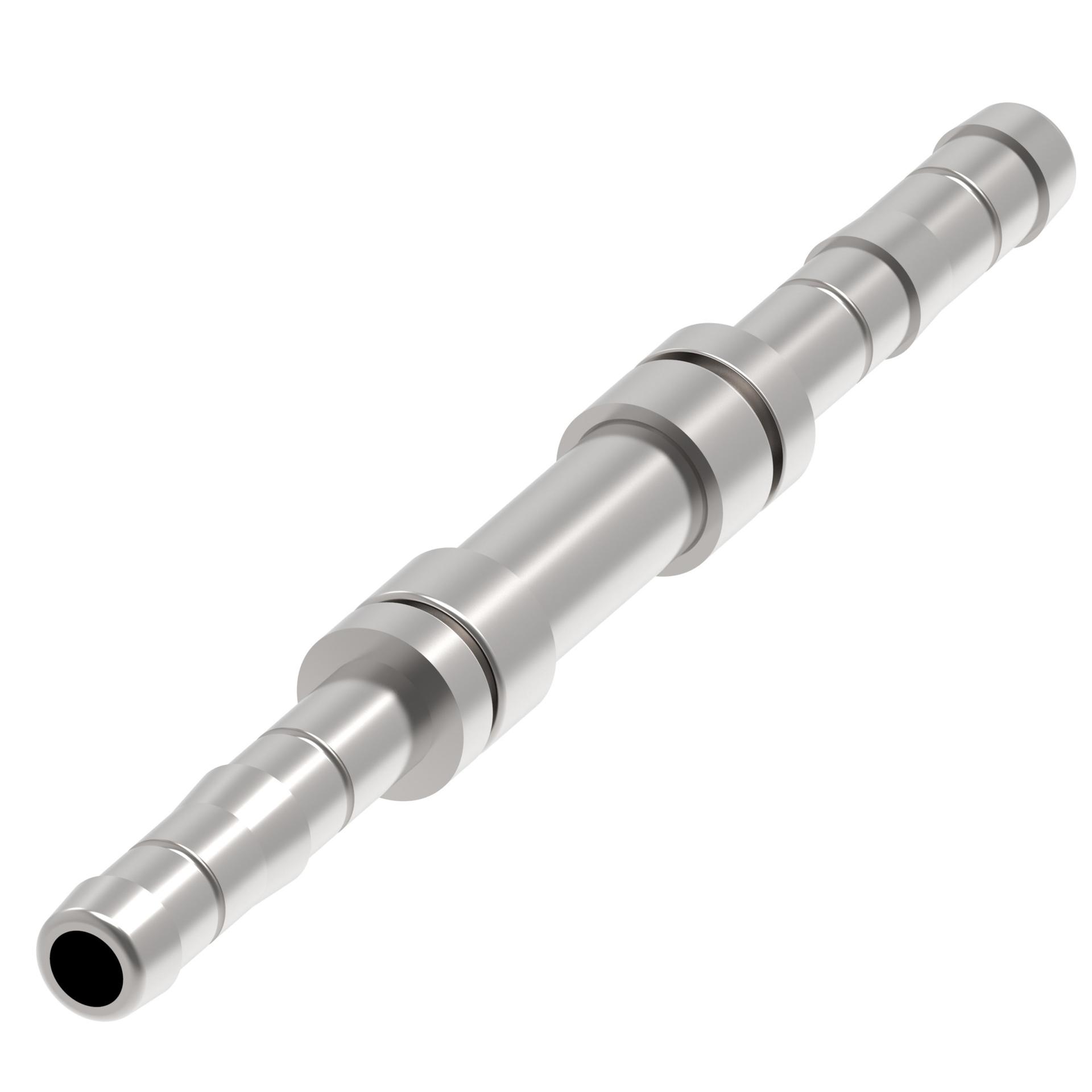

Hose FittingsGA24092-1-6-6 (RIGHT)

FTGS, F7/6, F7/6, -S

GA24092-1-6-6


Tools

Product specifications

Characteristic
Value
A dimension IN4.917
A dimension MM124.900
Angle shapeStraight
BrandDanfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.525
Compatible hosesGH134
Construction StyleReusable
End size 1-6
End type 1Line/hose/tube
End type 2Line/hose/tube
Finish platingDura-Kote
Hose cut off factor IN1.870
Hose cut off factor MM47.400
Hose size-6
Inside diameter IN0.220
Inside diameter MM5.500
Product height in0.500
Product height mm12.700
Product length in4.917
Product length mm124.892
Product materialCarbon steel
Product width in0.500
Product width mm12.700 mm
Thread sealantNo
Working temperature max C125
Working temperature max F257
Working temperature min C-40
Working temperature min F-40
