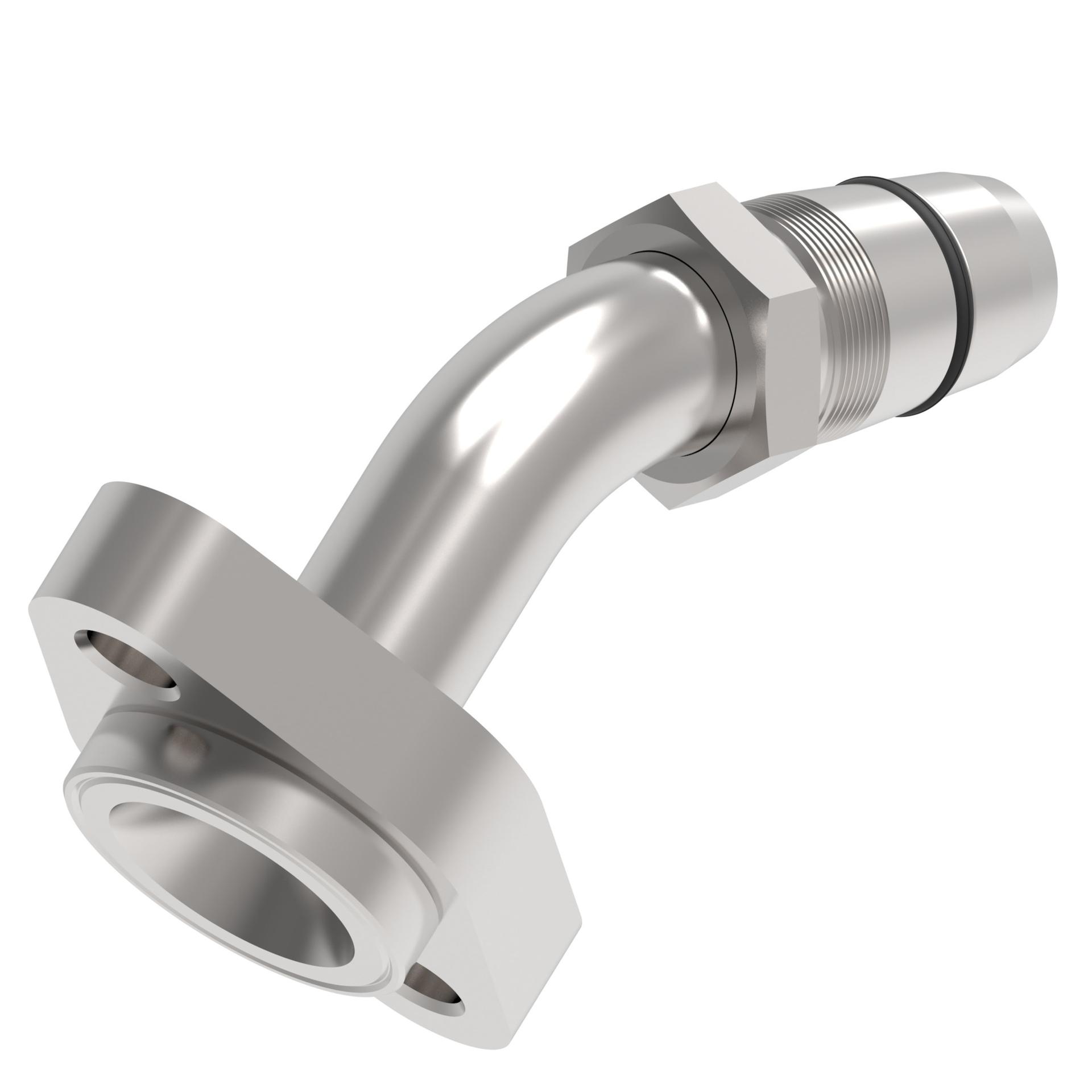

Hose Fittings GA25127-16 (RIGHT)

FTGS, AR/20, BOCK-M/20, -S, 45D, 46

GA25127-20


Tools

Product specifications

Characteristic
Value
A dimension IN4.826
A dimension MM122.600
Angle shape45 Degree
BrandDanfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Compatible hosesFC800
Construction StyleReusable
Drop dimension IN1.814
Drop dimension MM46.10
End size 1-20
Finish platingDura-Kote
Hex size 1 IN1.417
Hex size 1 MM35.992
Hex size 2 IN1.417
Hex size 2 MM36.000
Hose cut off factor IN3.507
Hose cut off factor MM89.100
Hose size-20
Inside diameter IN0.953
Inside diameter MM24.200
Product height in4.200
Product height mm106.680
Product length in6.500
Product length mm165.100
Product materialCarbon steel
Product width in3.360
Product width mm85.344 mm
Seal materialHydrogenated Nitrile (HNBR)
Thread sealantNo
Working temperature max C125
Working temperature max F257
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN/UPC678146194183
